Headlight Replacement
Headlight Replacement 1.
Remove the front bumper
Service and Repair.
2.

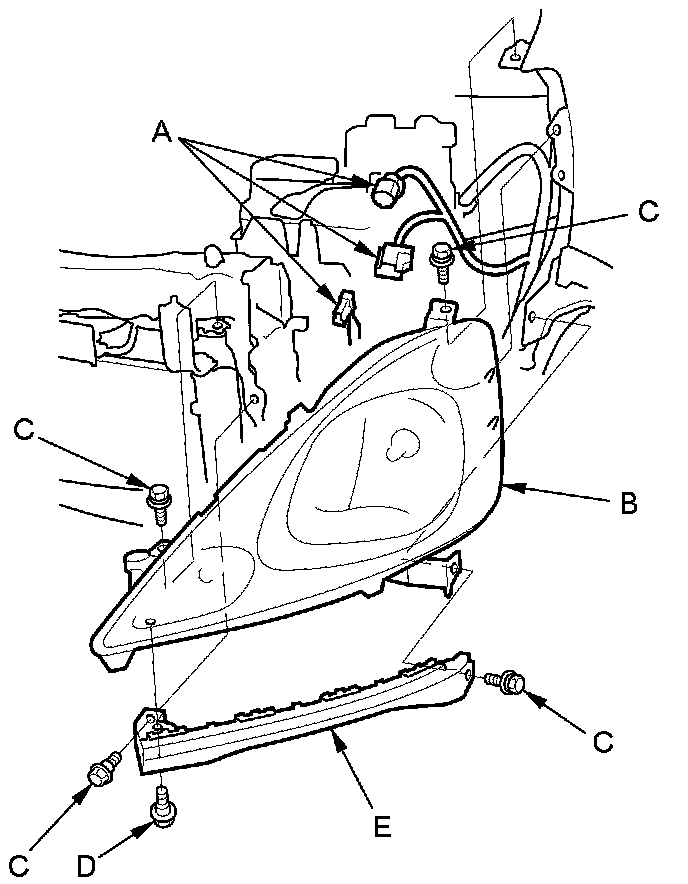

Disconnect the connectors (A) from the headlight (B).
3.
Remove the four mounting bolts (C) from the headlight.
4.
Remove the bolt (D) and the front bumper upper beam (E).
5.
Install the parts in the reverse order of removal.
6.
After replacement, adjust the headlight
Adjustments.
