Drive Belt: Service and Repair

Drive Belt Removal/Installation

1. Remove the splash shield Engine Removal.

2. Move the tensioner (A) with a wrench (B) in the direction shown to relieve tension from the drive belt, then remove the drive belt.

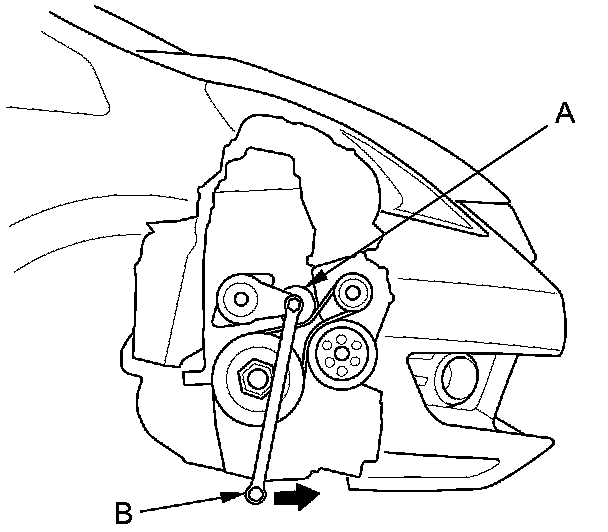

With A/C:

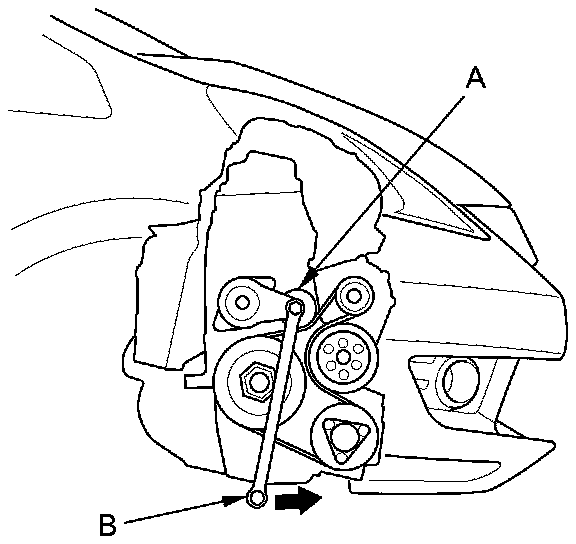

Without A/C:

3. Install the new belt in the reverse order of removal.
