Vacuum and Vapor Hose Diagrams




Fuel and Emissions System Description - Fuel and Emissions Systems Diagram

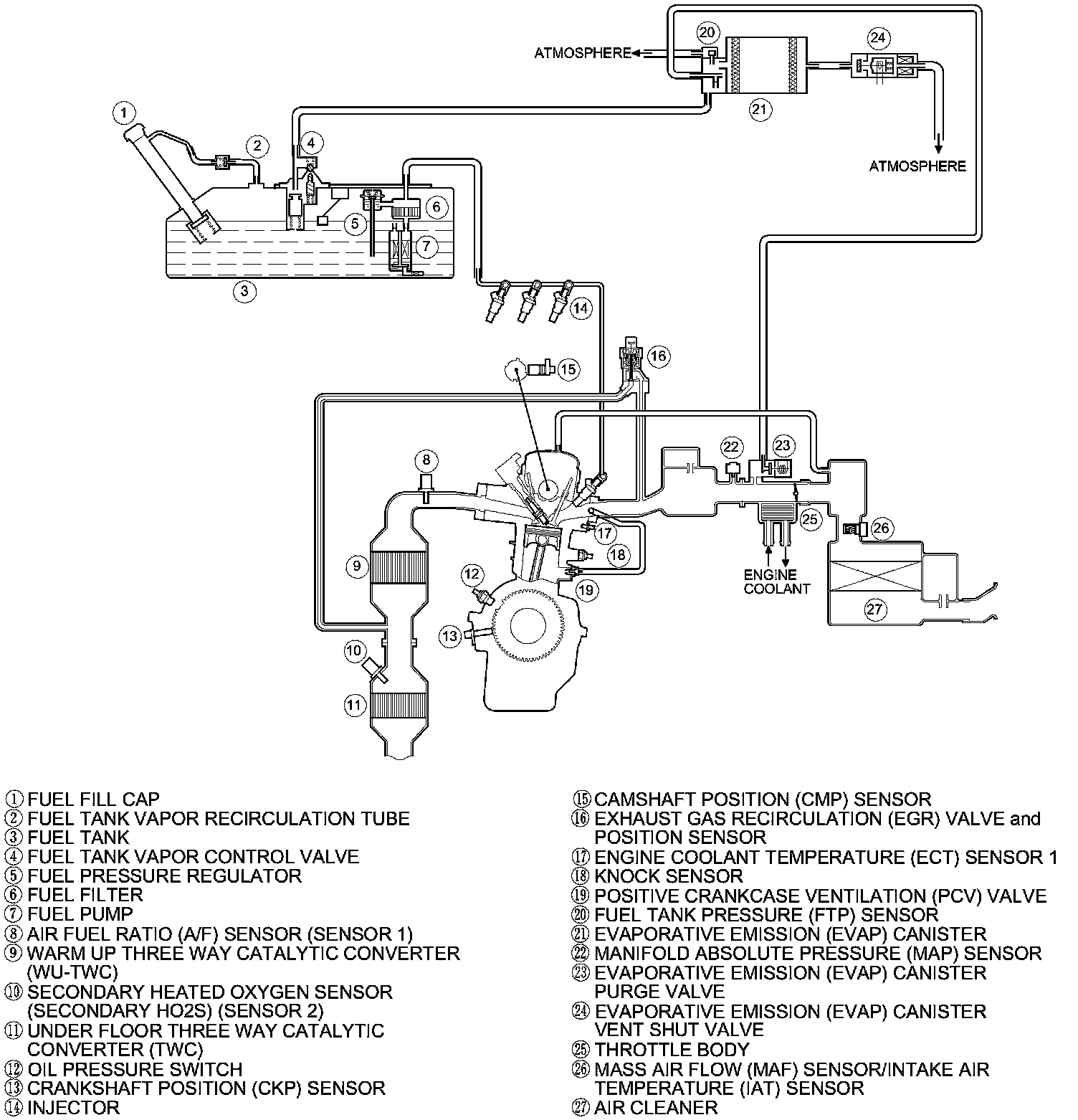

Fuel and Emissions Systems Diagram

System Diagram





Vacuum Hose Routing
