Leak Detection Solenoid: Service and Repair
EVAP Canister Vent Shut Valve Replacement 1.
Remove the EVAP canister assembly
Service and Repair.
2.

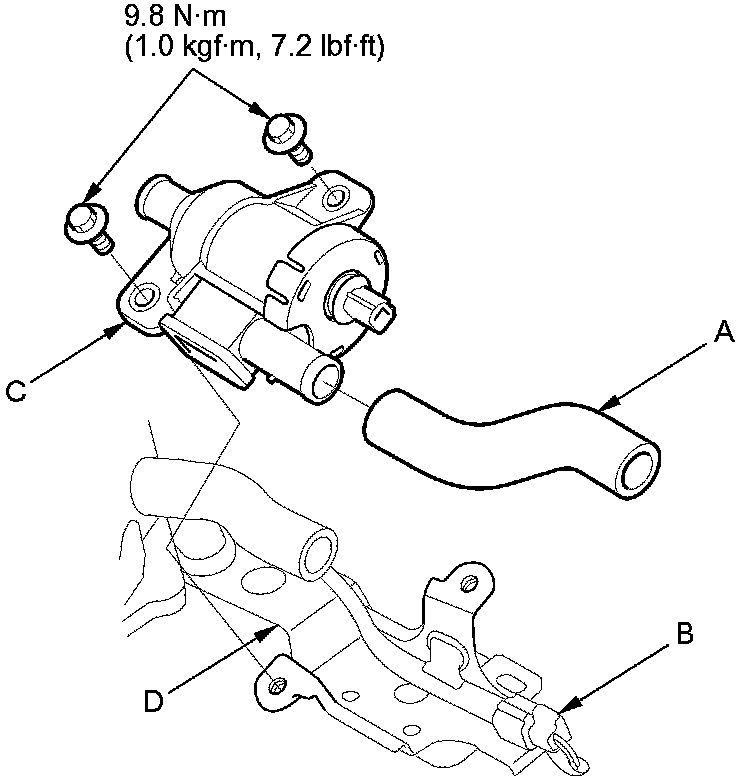

Remove the hose (A), and disconnect the EVAP canister vent shut valve connector (B).
3.
Remove the EVAP canister vent shut valve (C) from the canister bracket (D).
4.
Install the parts in the reverse order of removal.
