Fluid Line/Hose: Service and Repair
ATF Cooler Hose Replacement 1.
Drain the automatic transmission fluid (ATF)
ATF Replacement.
2.

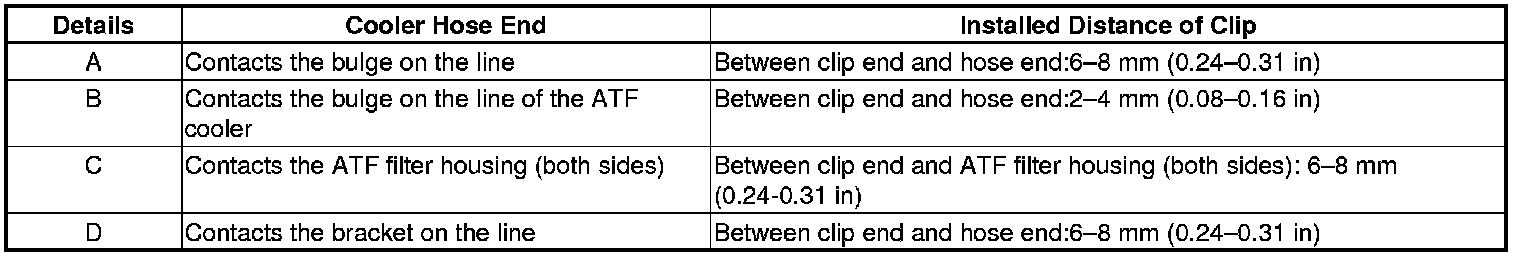

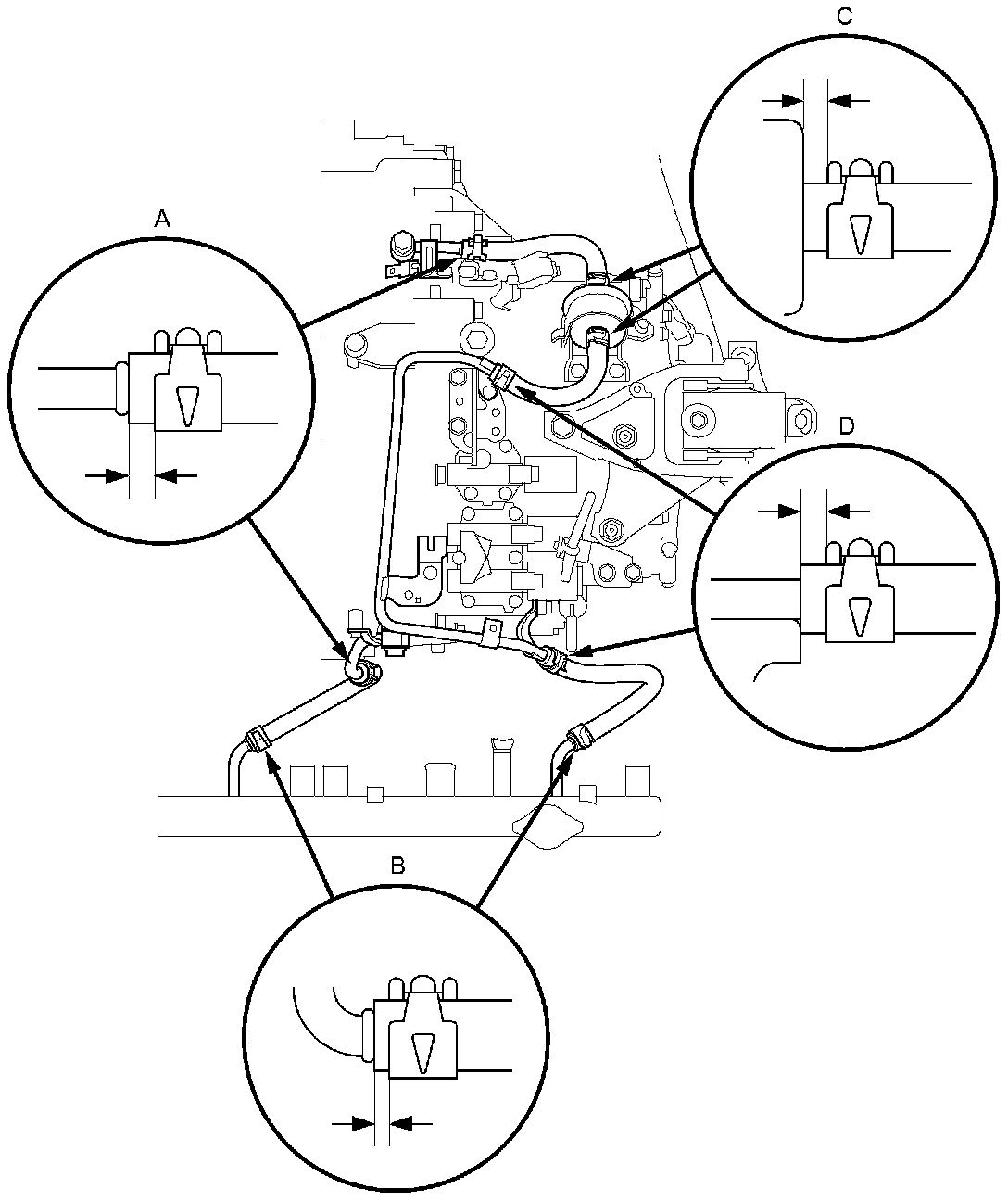

Install the ATF cooler hoses over the ATF cooler lines, and secure the hoses with the clips as shown in the details (A) (B) (C) (D), shown in the following figure. Keep the tabs of the clips clear of other parts.
3.
Refill the transmission with ATF
ATF Replacement.
