Home
>>
Honda
>>
2010
>>
Odyssey V6-3.5L
>>
Parts and Labor
>>
Powertrain Management
>>
Emission Control Systems
>>
Images
Images

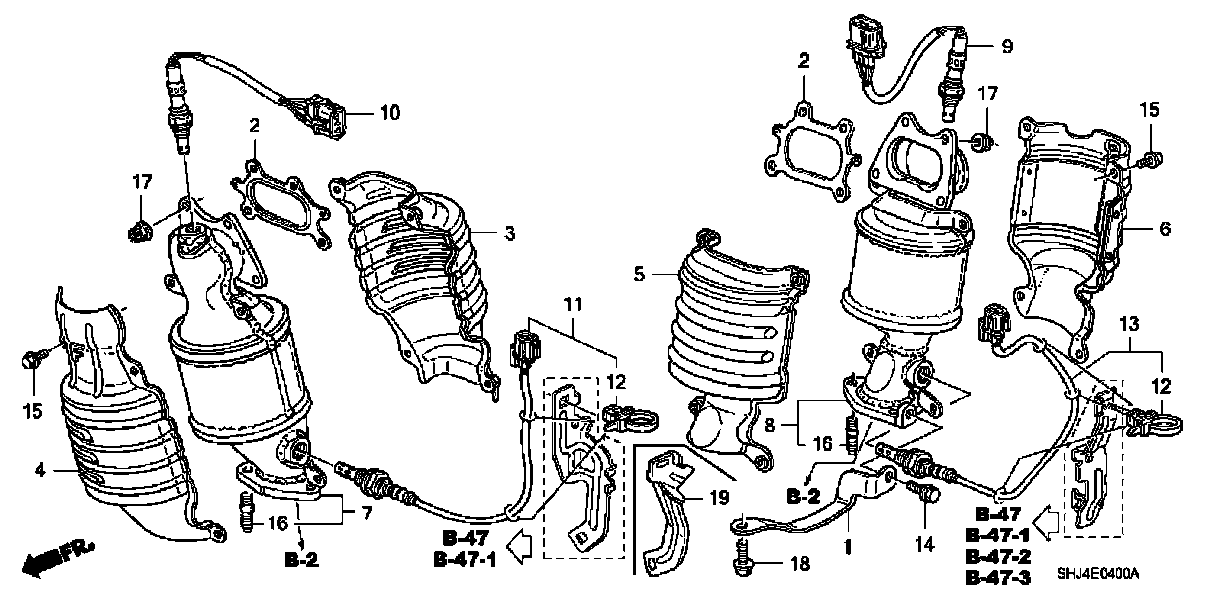

Converter, EX:

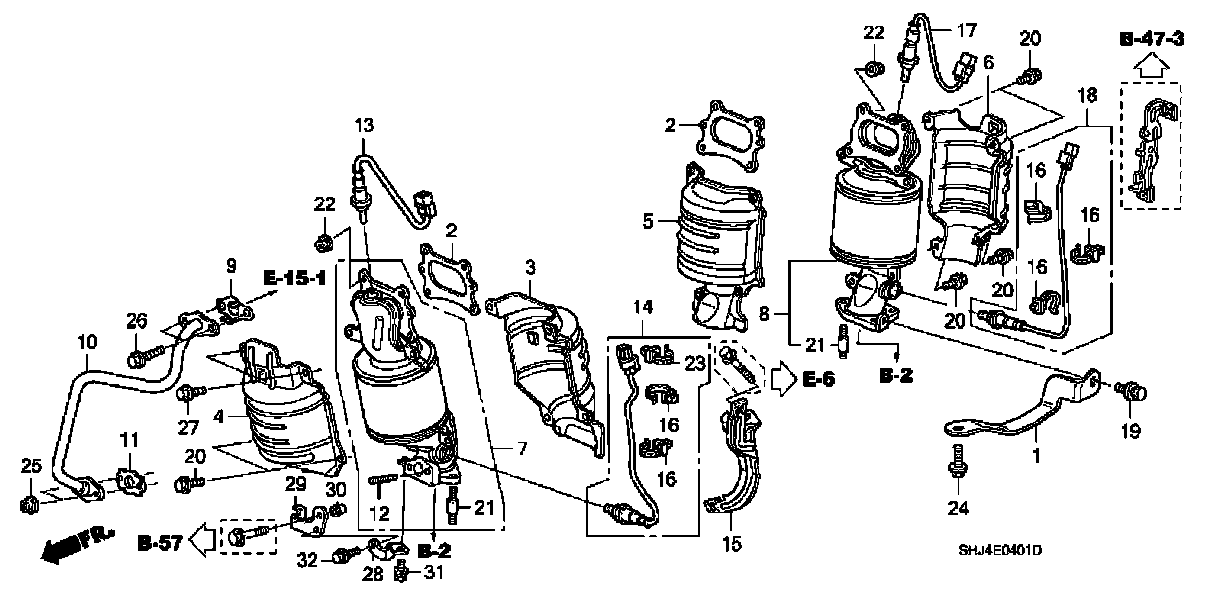

Converter, EX-L:

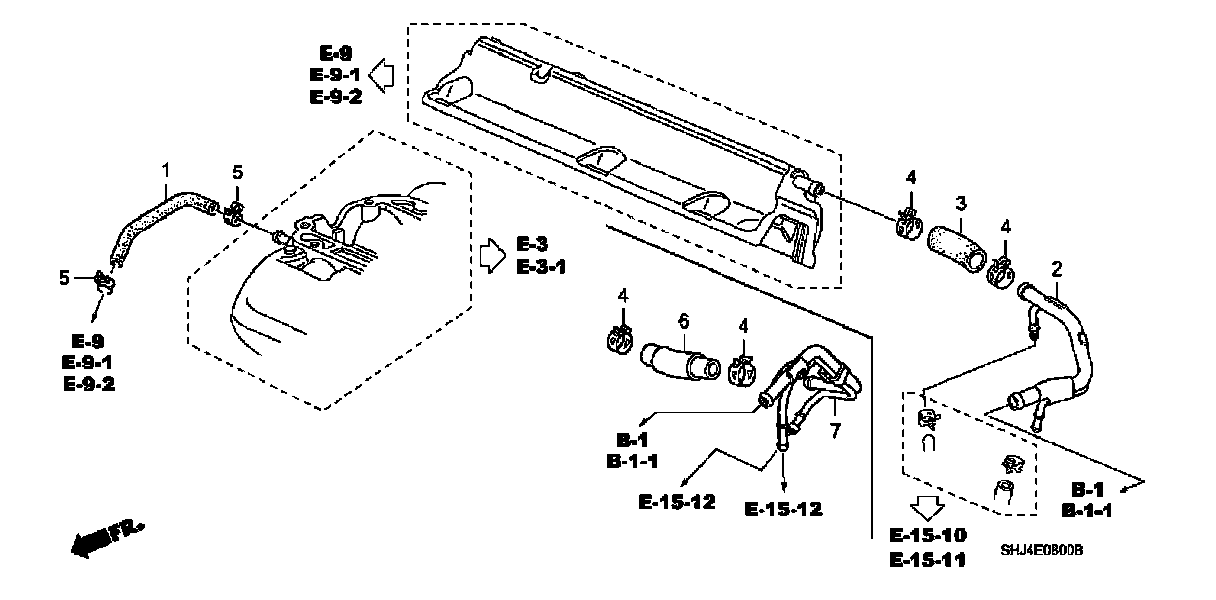

Engine Compartment Tubing, EX:

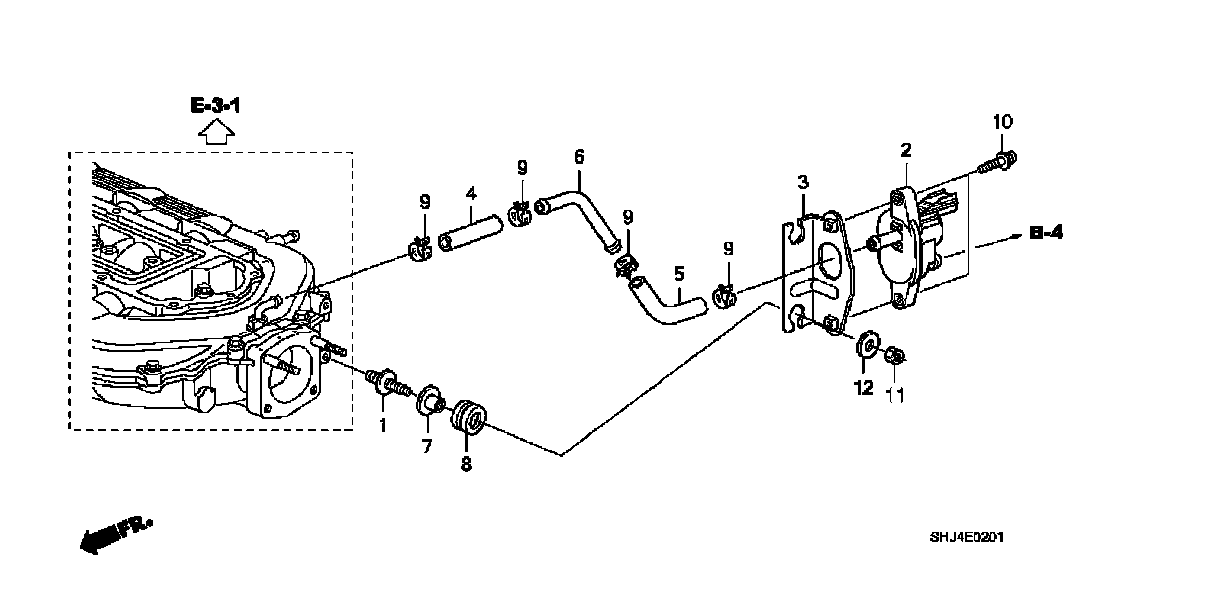

Engine Compartment Tubing, EX-L:

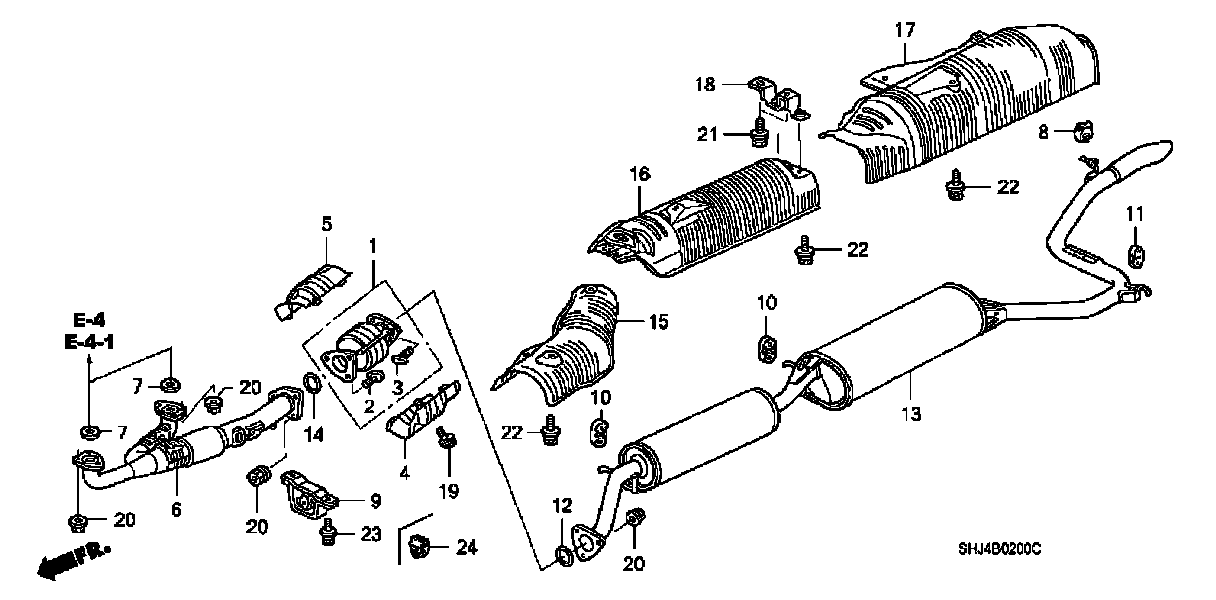

Exhaust Pipe:

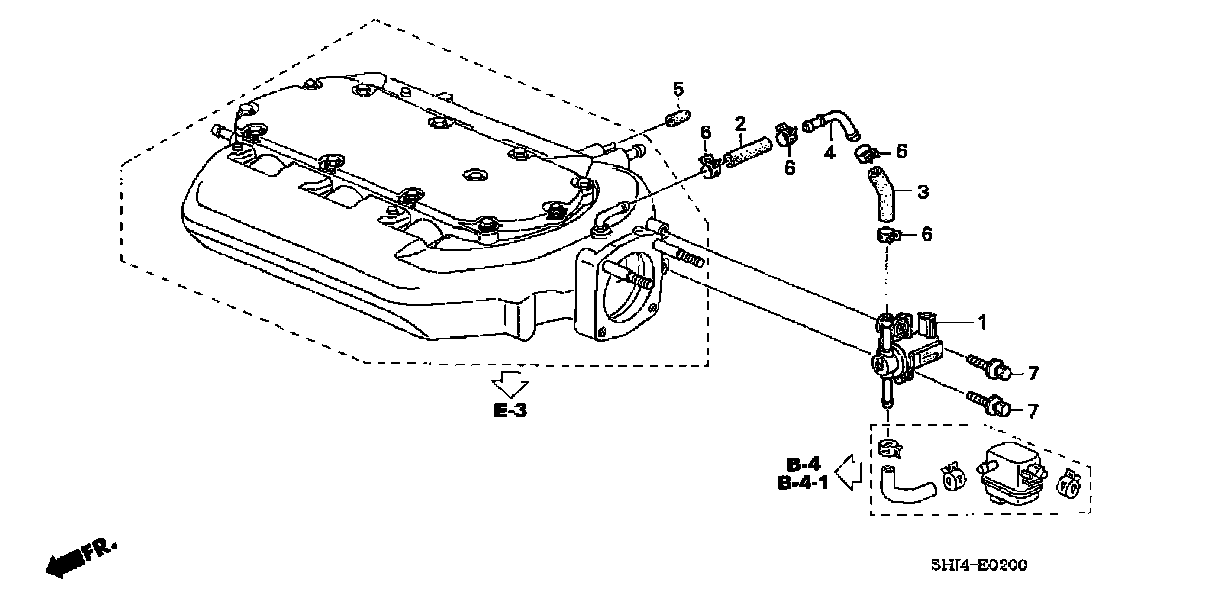

Breather Tube:
