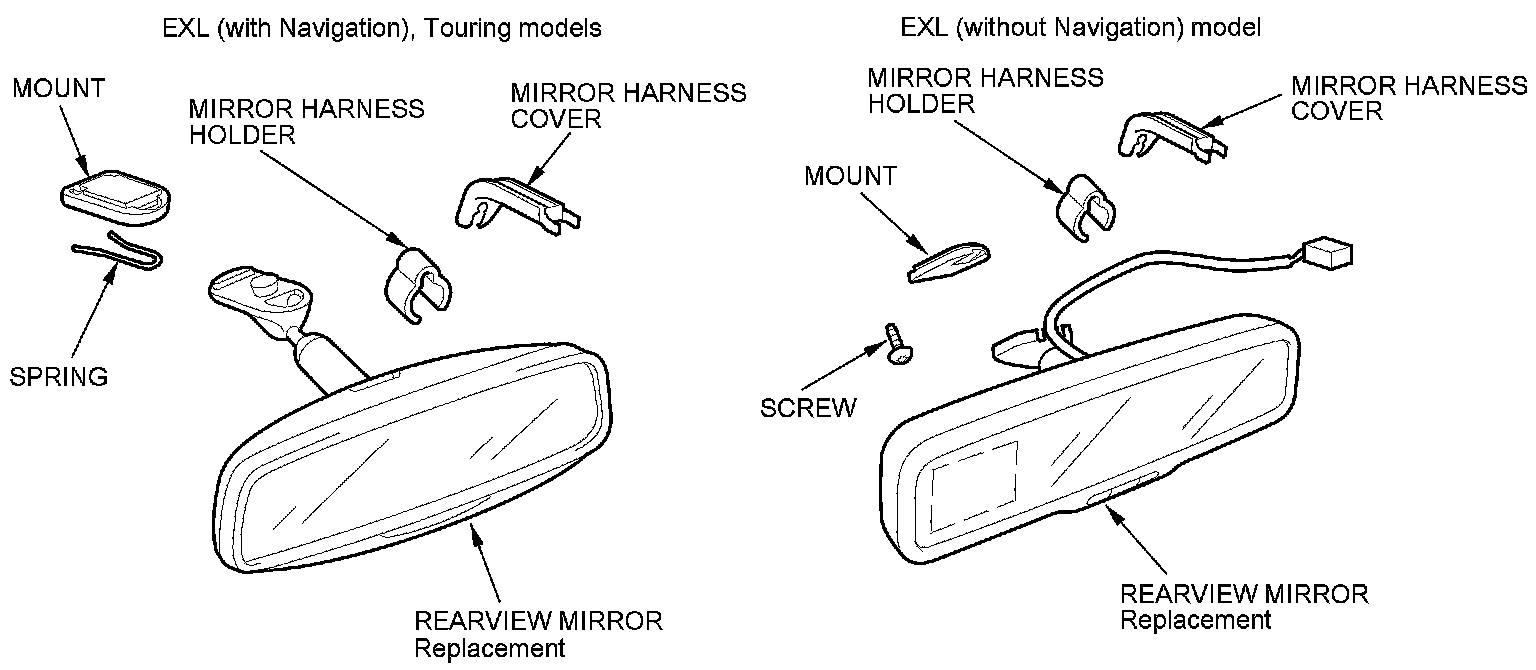

Mirrors Component Location Index




Mirrors Component Location Index

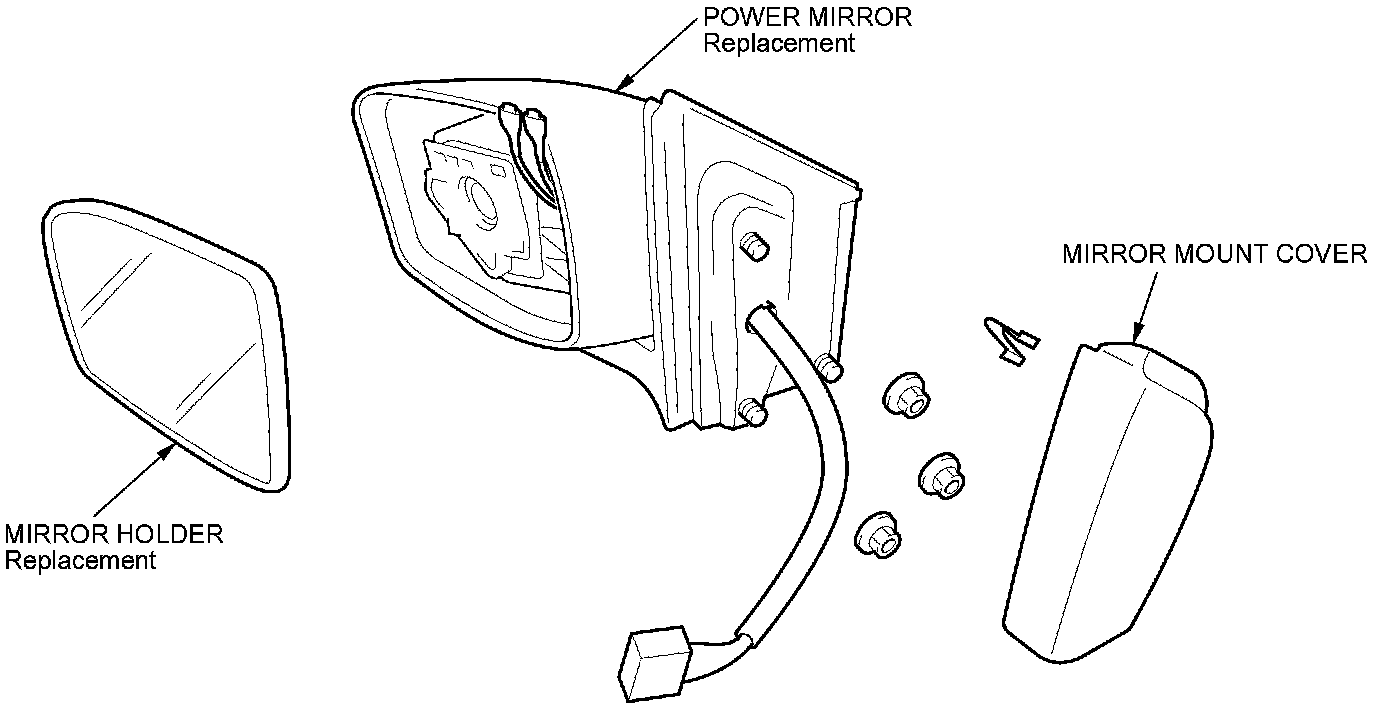

Without driving position memory system (DPMS)

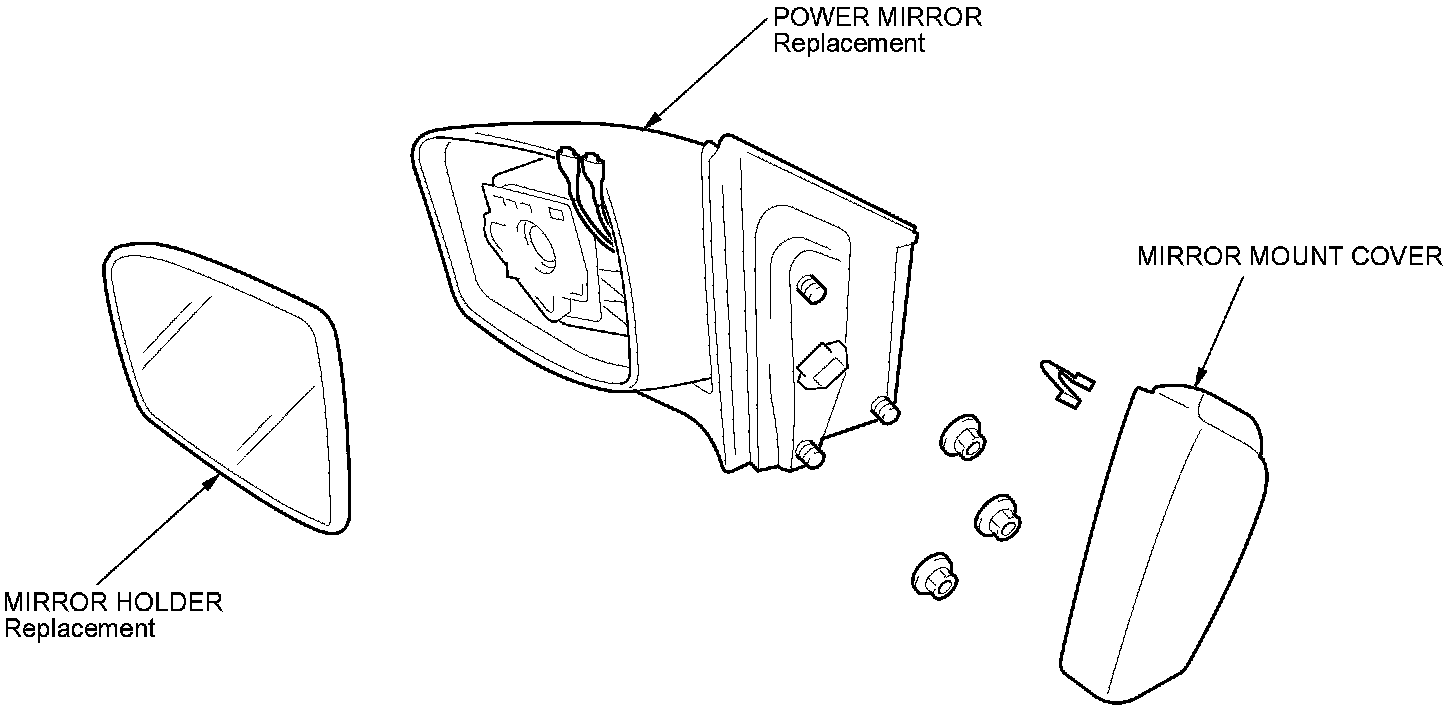

With driving position memory system (DPMS)
