Operation CHARM
: Car repair manuals for everyone.
Home
>>
Honda
>>
2010
>>
Odyssey V6-3.5L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Connector Views By Connector Number
>>

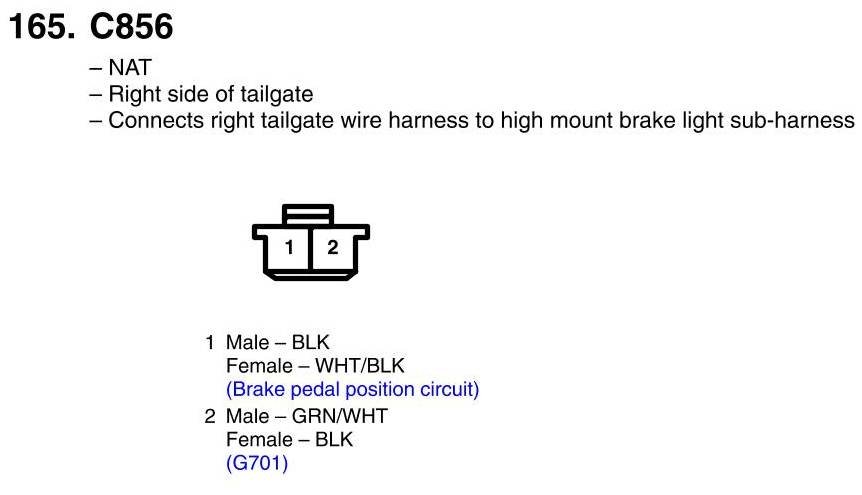

C856 Connector View
C856 Connector View
