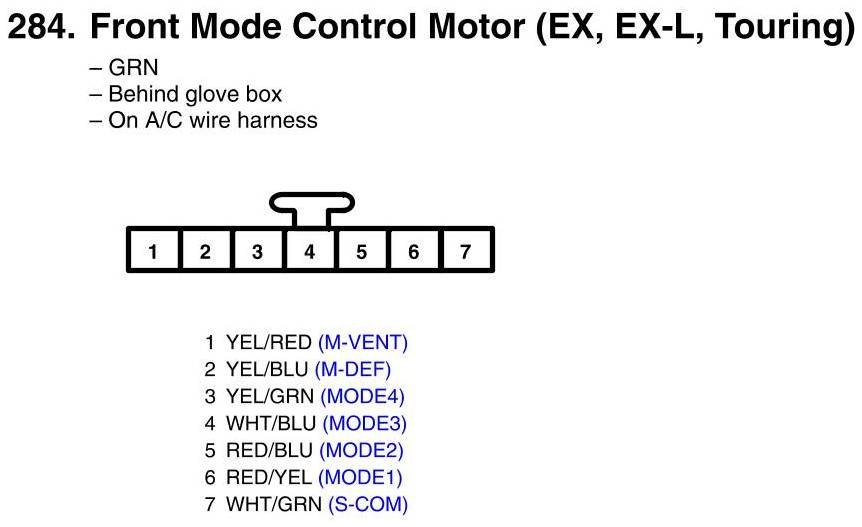

View 284 - Front Mode Control Motor Connector View (EX, EX-L, Touring)
View 284 - Front Mode Control Motor Connector View (EX, EX-L, Touring)
