Trailer Hitch: Service and Repair

Trailer Hitch Replacement

NOTE:

- Put on gloves to protect your hands.
- Take care not to scratch the body and related parts.
- After removing the trailer hitch mounting bolts, be sure to replace them with new ones.

1. Remove the rear bumper Rear Bumper Removal/Installation.

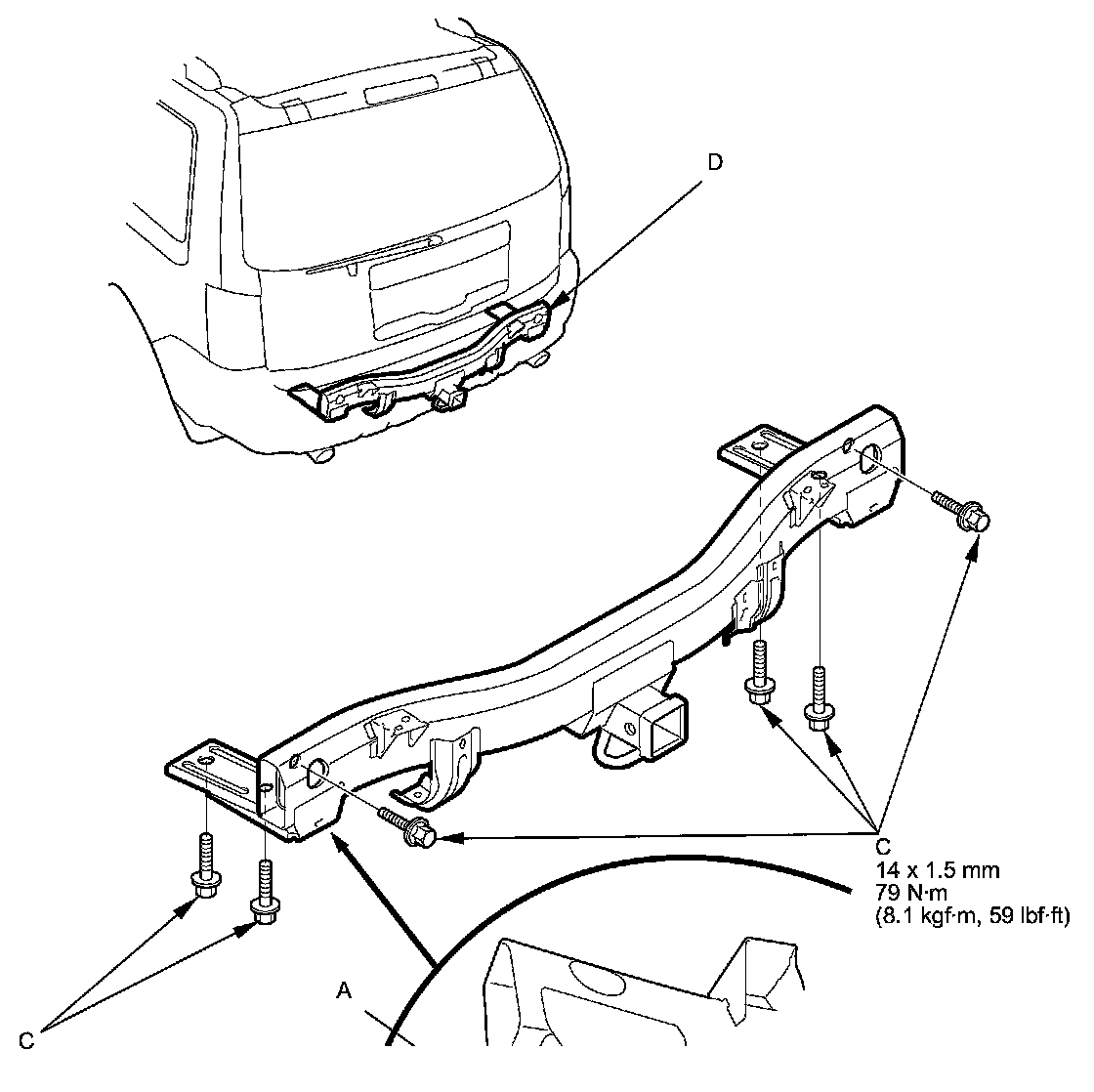

2. Detach the clip (A), then remove the connector (B).

3. Remove the bolts (C), then remove the trailer hitch (D).

4. Install the trailer hitch in the reverse order of removal.
