Evaporator Temperature Sensor / Switch: Service and Repair
Evaporator Temperature Sensor Replacement 1.

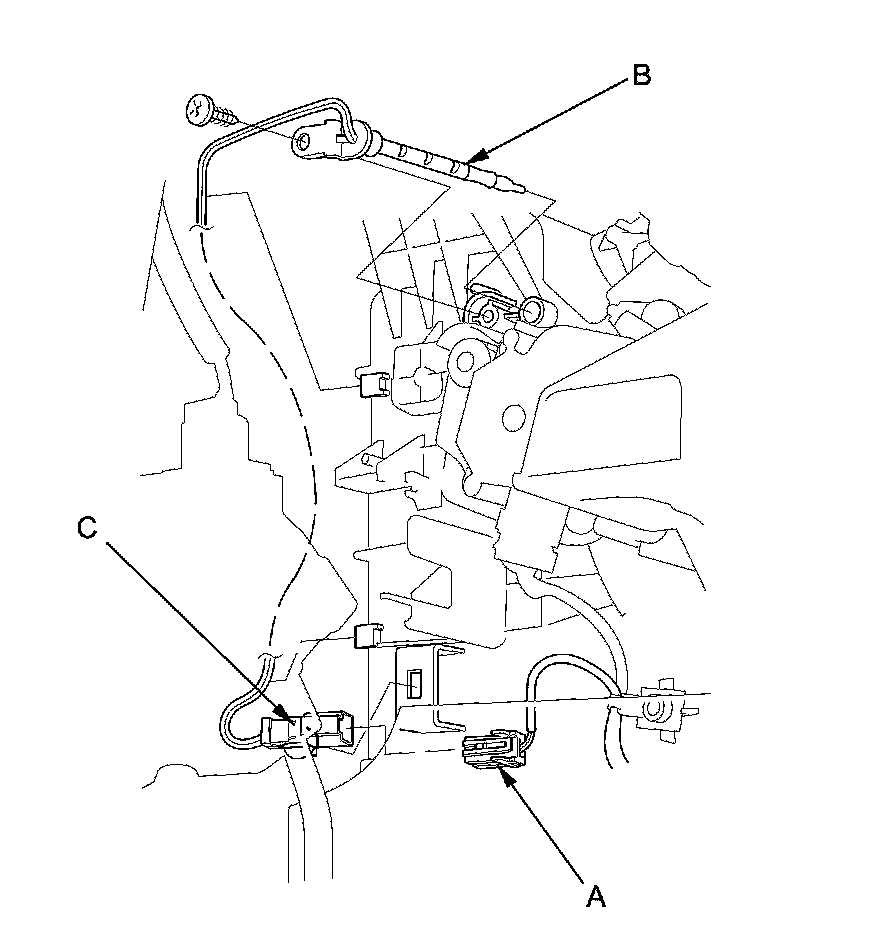

Disconnect the connector (A) from the evaporator temperature sensor (B), then remove the connector clip (C). Remove the self-tapping screw and the evaporator temperature sensor.
2.
Install the sensor in the reverse order of removal.
