Rear Rocker Arm Oil Control Valve Replacement




Rear Rocker Arm Oil Control Valve Replacement

1. Remove the rear rocker arm assembly.

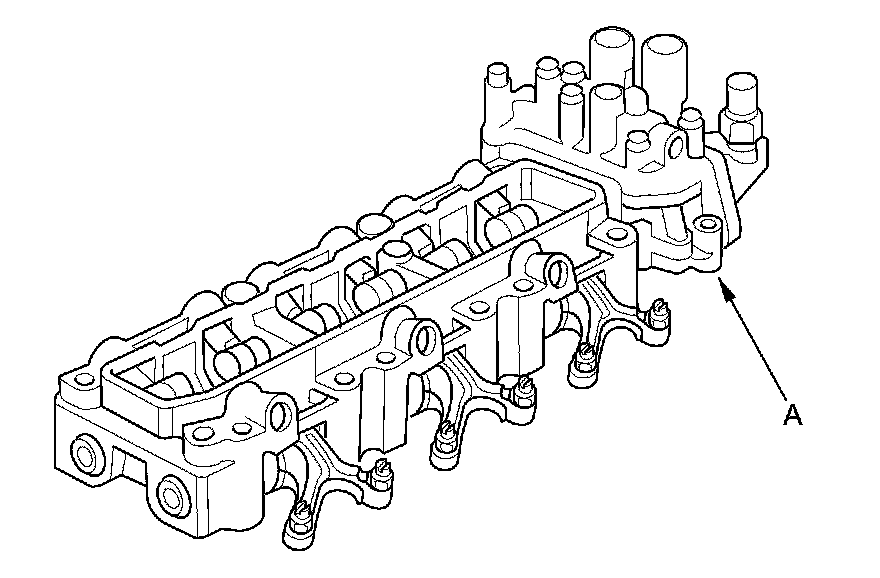

2. Remove the rear rocker arm oil control valve (A).






3. Install the rear rocker arm oil control valve in the reverse order of removal.
