Left Front Splash Guard Reinforcement Replacement

Left Front Splash Guard Reinforcement Replacement

NOTE: Take care not to scratch the body or the related parts.

1. Remove the left front inner fender as needed Front Inner Fender Replacement.

2. Open the driver's door.

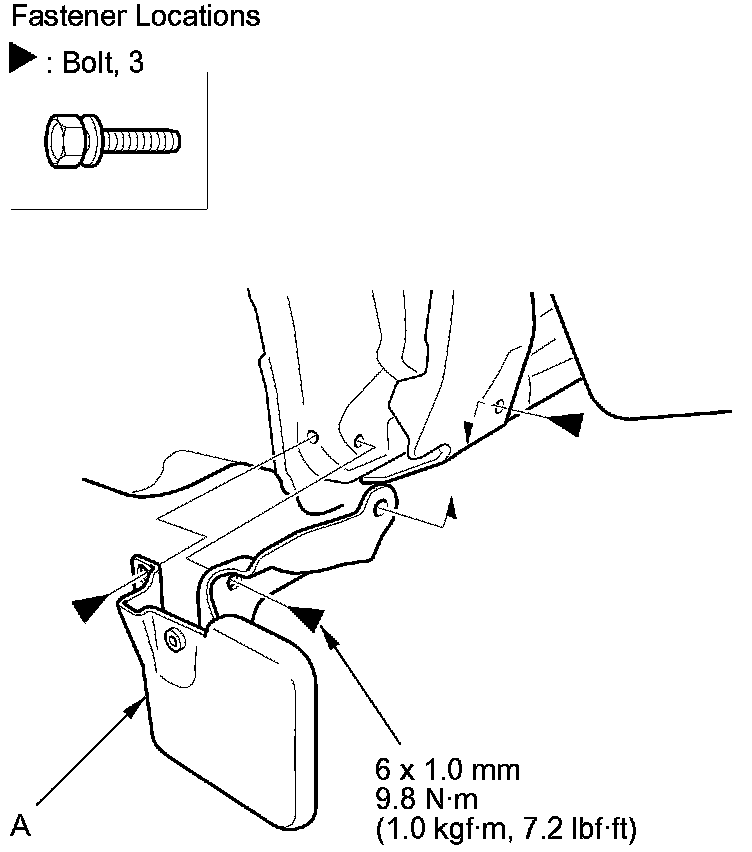

3. Remove the bolts, then remove the left front splash guard reinforcement (A). Take care not to scratch the body.

4. Install the reinforcement in the reverse order of removal.
