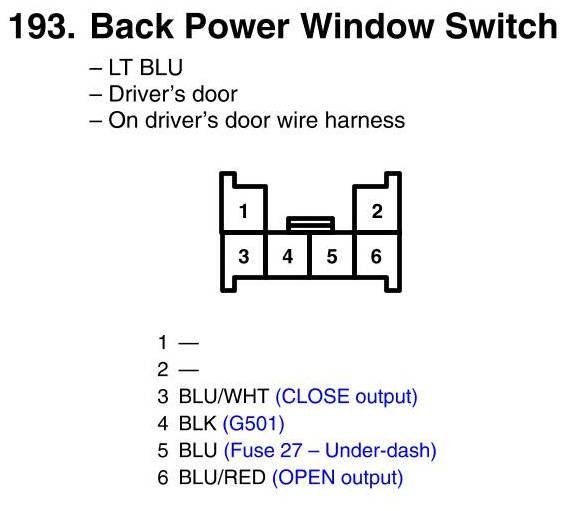

View 193 - Back Power Window Switch Connector View
View 193 - Back Power Window Switch Connector View
