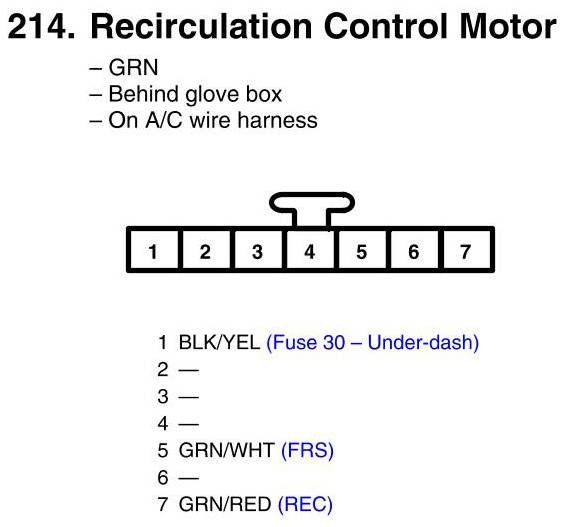

View 214 - Recirculation Control Motor Connector View
View 214 - Recirculation Control Motor Connector View
