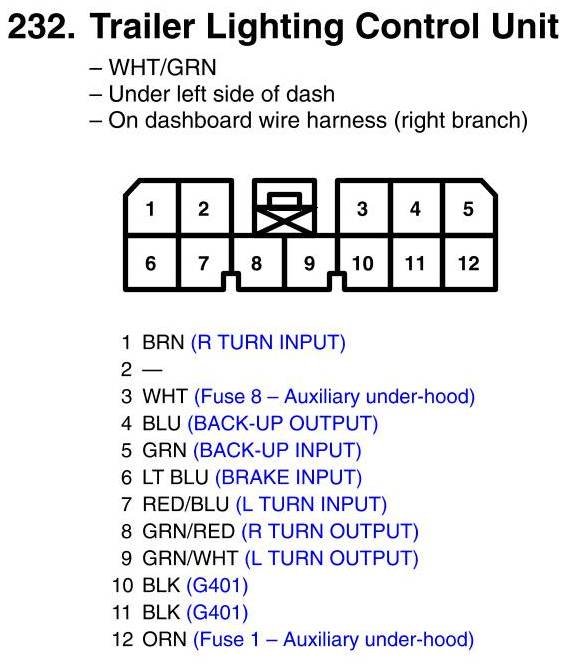

View 232 - Trailer Lighting Control Unit Connector View
View 232 - Trailer Lighting Control Unit Connector View
