Air Register: Service and Repair

Dashboard Vent Removal/Installation

Special Tools Required

- KTC Trim Tool Set SOJATP2014
*Available through the Honda Tool and Equipment Program; 888-424-6857

SRS components are located in this area. Review the SRS component locations Locations and the precautions and procedures Service and Repair before doing repairs or service.

NOTE:

- Put on gloves to protect your hands.
- Take care not to scratch the dashboard or the related parts.
- Use the appropriate tool from the KTC trim tool set to avoid damage when removing components.

1. While holding the glove box, remove the glove box stop on each side.

2. Disconnect the glove box damper from the glove box.

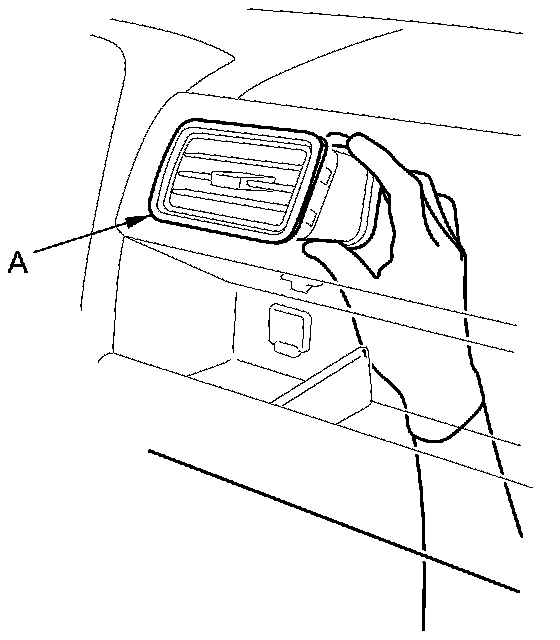

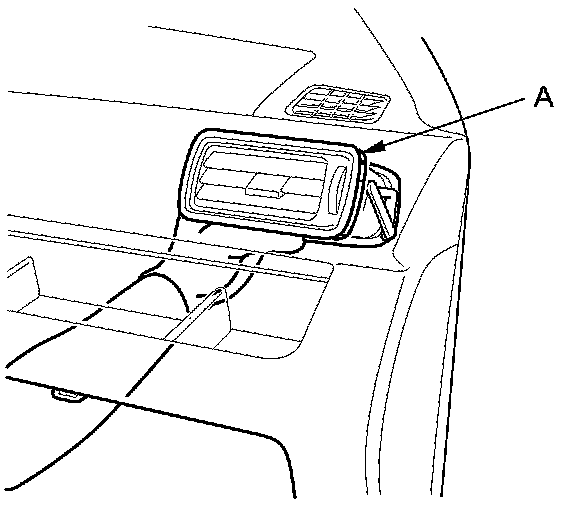

3. To loosen, push on the dashboard vent (A) by reaching through the glove box opening.

Center





Outer

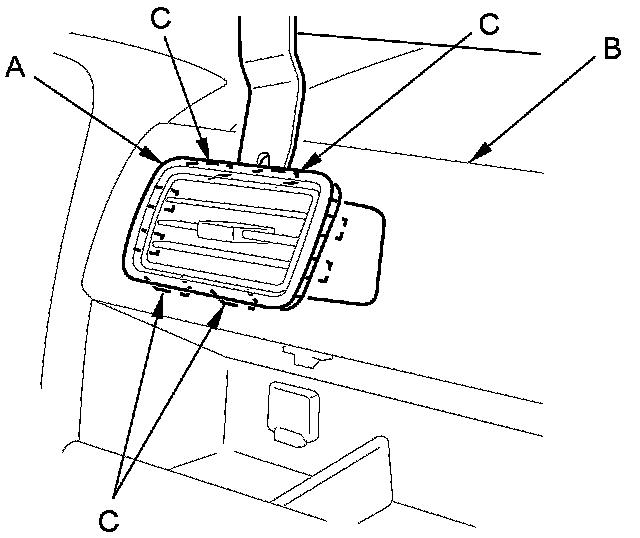

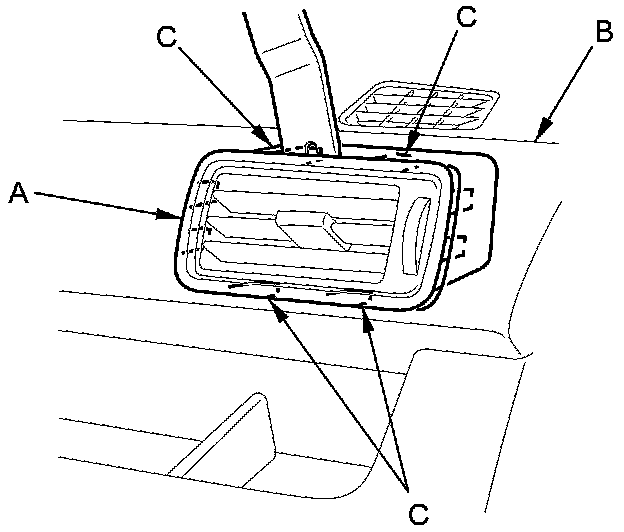

4. Insert the appropriate trim tool into the gap between the dashboard vent (A) and the dashboard (B), and release the hooks (C).

Center





Outer





5. Install the dashboard vent in the reverse order of removal.
