Evaporator Core: Service and Repair

Evaporator Core Replacement

1. Recover the refrigerant with a recovery/recycling/charging station A/C Refrigerant Recovery.

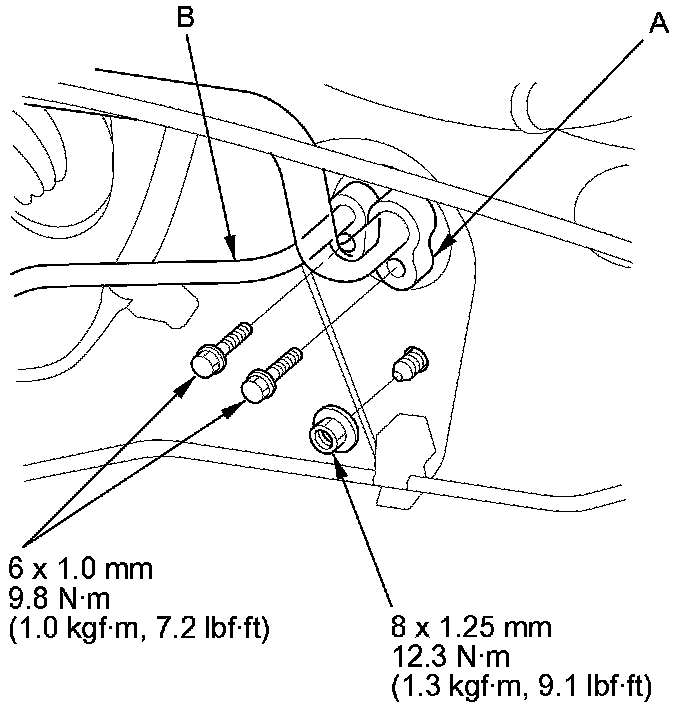

2. Remove the bolts and nut, then disconnect the suction line (A) and receiver line (B) from the evaporator core.





3. Remove the blower unit Blower Unit Removal/Installation.

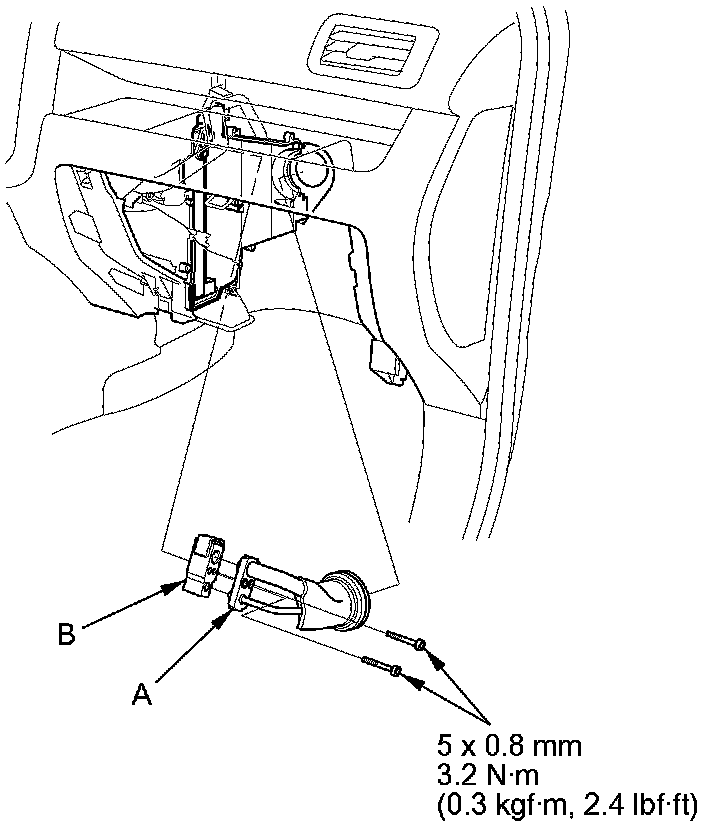

4. Remove the self-tapping screws, the joint duct (A) and the seal (B).






5. Remove the bolts, inlet and outlet pipes (A), and expansion valve (B).






6. Carefully pull out the evaporator core (A) and the plate (B).





7. Install the core in the reverse order of removal, and note these items:

- If you're installing a new evaporator core, add the appropriate amount of refrigerant oil (DENSO ND-OIL 8) Service and Repair.
- Replace the O-rings with new ones at each fitting, and apply a thin coat of refrigerant oil before installing them. Be sure to use the correct O-rings for HFC-134a (R-134a) to avoid leakage.
- Immediately after using the oil, reinstall the cap on the container, and seal it to avoid moisture absorption.
- Do not spill the refrigerant oil on the vehicle; it may damage the paint; if the refrigerant oil contacts the paint, wash it off immediately.
- Make sure that there is no air leakage.
- Charge the system A/C System Charging.
