Cargo Lamp: Service and Repair

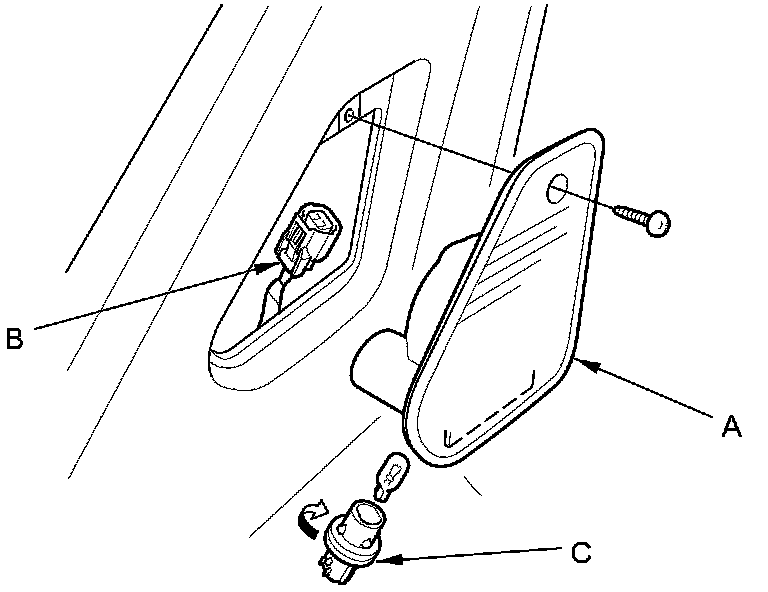

Cargo Area Light Replacement 1.
Remove the screw and cargo area light (A).

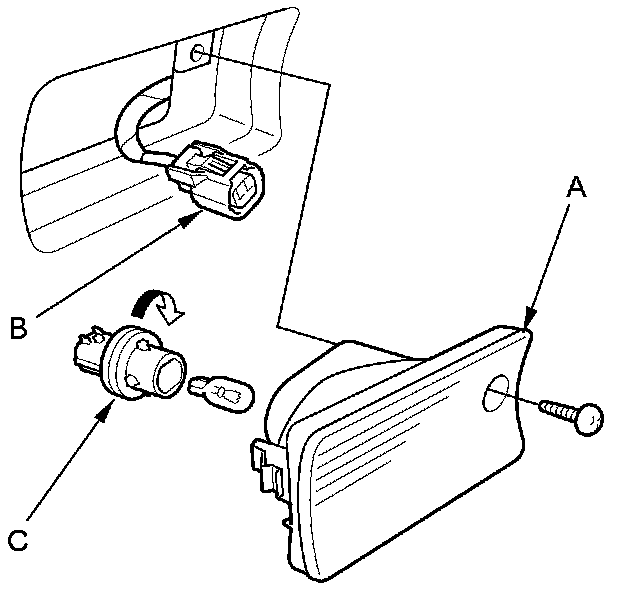

Cargo Area Light 1Cargo Area Light 2 2.
Disconnect the 2P connector (B) from the light.
3.
Turn the bulb socket (C) 45 ° counterclockwise to remove the bulb.
4.
Install the light in the reverse order of removal.
