Fog Light Replacement
Fog Light ReplacementRTL and EX-L models 1.
Remove the front bumper
Service and Repair.
2.

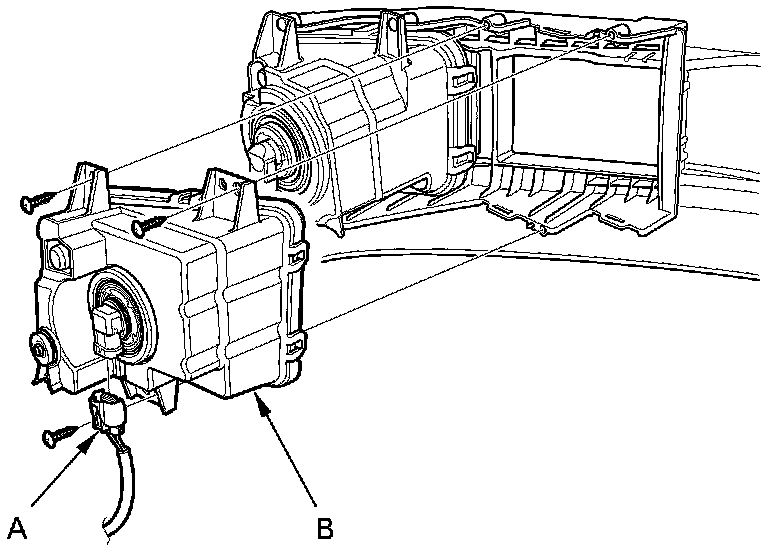

Disconnect the 2P connector (A) from the fog light (B).
3.
Remove the screws, then remove the light.
4.
Install the light in the reverse order of removal.
5.
After replacement, adjust the fog lights
Adjustments.
