Lighting and Horns: Service and Repair

Exterior Lights Bulb Replacement

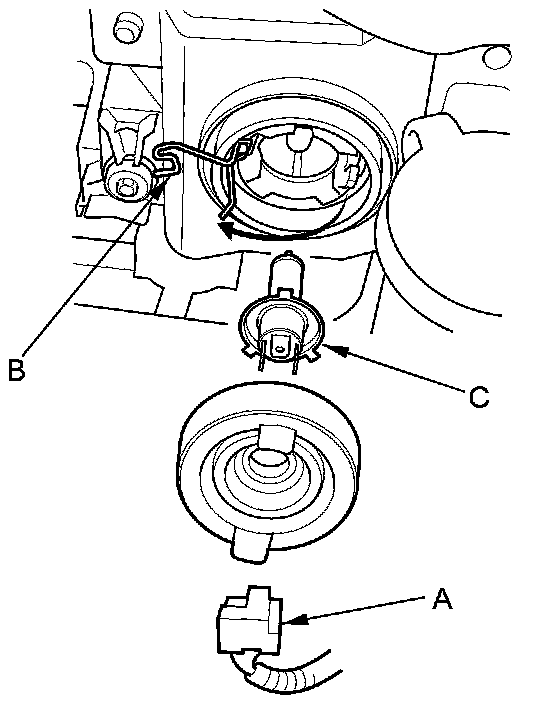

Headlight

1. Disconnect the 3P connector (A) from the headlight.









2. Pull the retaining spring (B) away from the bulb then remove the bulb (C).

3. Install a new bulb in the reverse order of removal.

NOTE: Do not touch the glass of the bulb with your hands. If necessary, clean the glass area with alcohol.

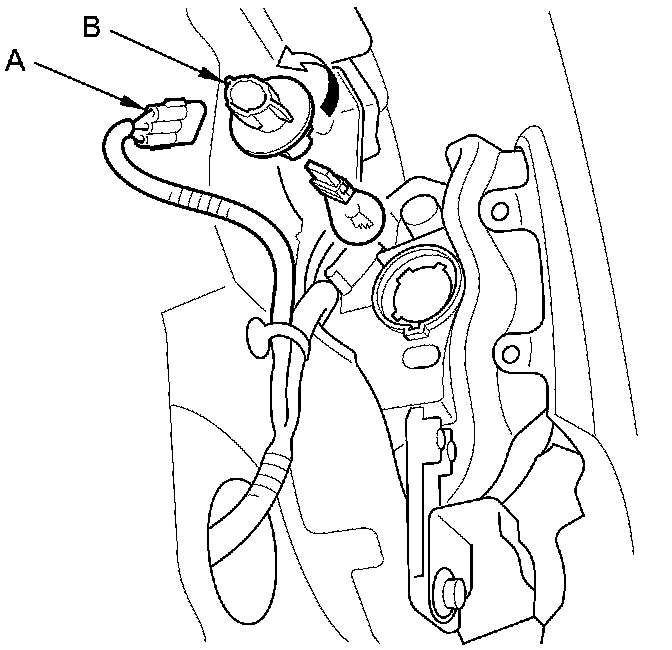

Front Turn Signal/Parking/Side Marker Lights

1. Remove the inner fender Front Inner Fender Replacement.

2. Disconnect the 3P connector (A) from the front turn signal/parking/side marker light.









3. Turn the bulb socket (B) 45 ° counterclockwise to remove the bulb.

4. Install a new bulb in the reverse order of removal.
