Accelerator Pedal Position Sensor: Service and Repair
APP Sensor Replacement 1.
Remove the throttle cable
Service and Repair.
2.

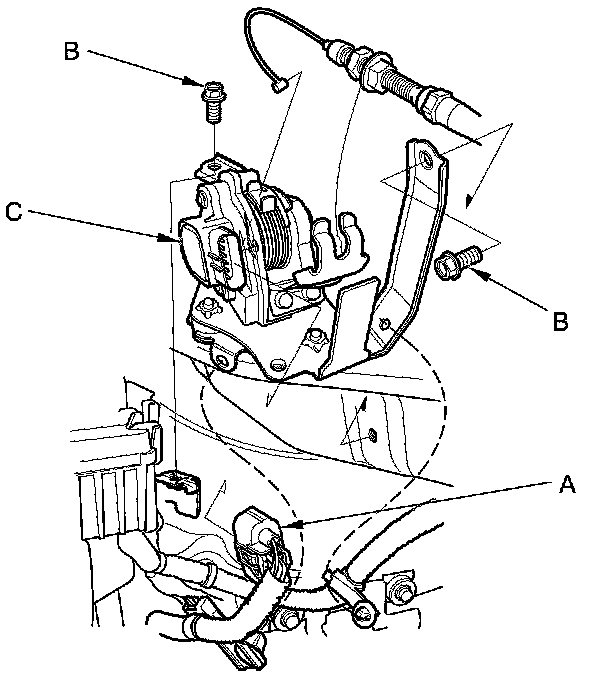

Disconnect the accelerator pedal position (APP) sensor 6P connector (A).
3.
Remove the bolts (B) and the APP sensor (C).
4.
Install the parts in the reverse order of removal.
