Tightening Torque and Sequence

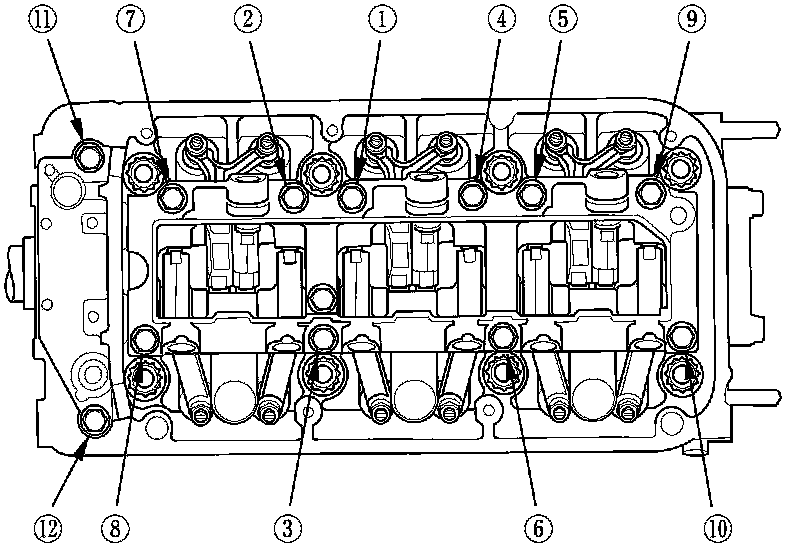

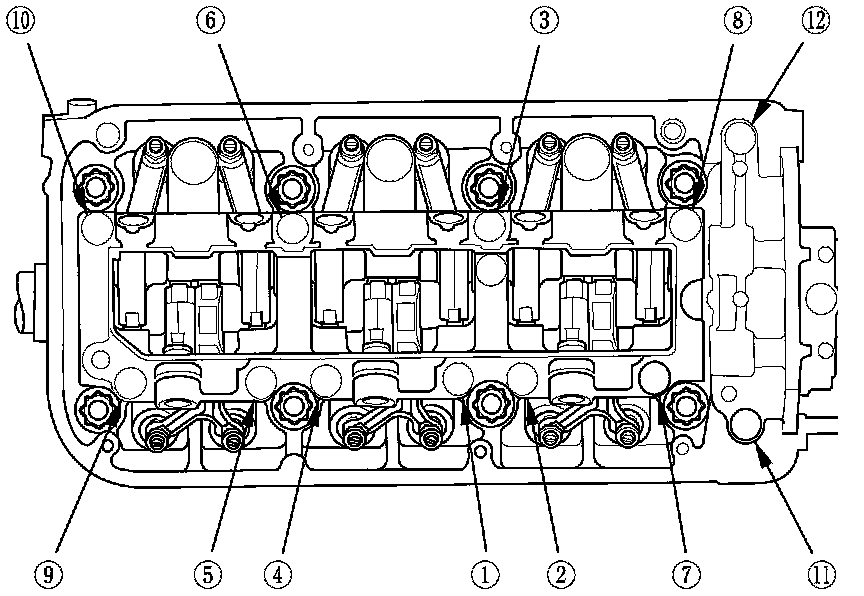

Cylinder Head Bolt
Front
Rear
Torque the cylinder head bolts in sequence to
30 Nm (3.1 kg-m, 22 lb-ft)
After torquing, tighten all cylinder head bolts in two steps
(90 ° per step)
If you are using a new cylinder head bolt
Tighten the bolt an extra
90 °

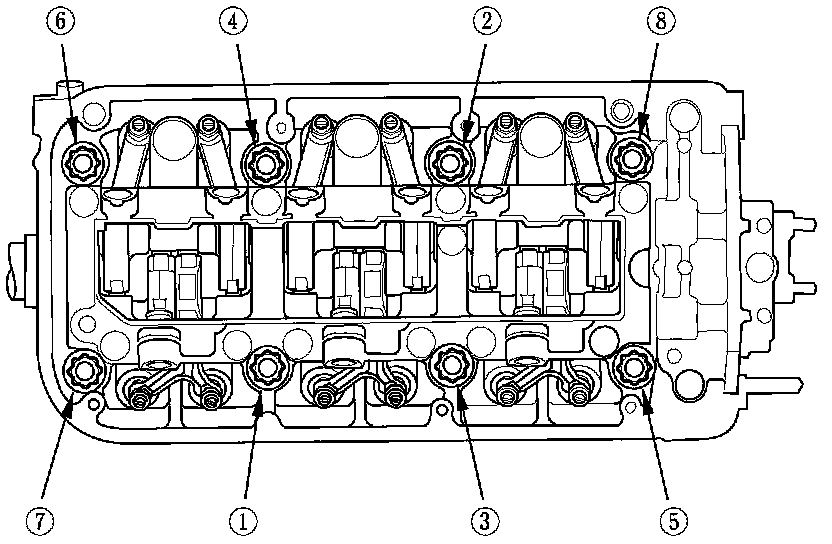

Camshaft Bearing cap
Front
Rear
