Ignition Switch: Service and Repair




Ignition Switch Replacement

SRS components are located in this area. Review the SRS component locations Locations, and precautions and procedures Service and Repair before doing repairs or servicing.

1. Do the battery terminal disconnection procedure.

2. Remove the left front door sill trim and left kick panel Service and Repair.

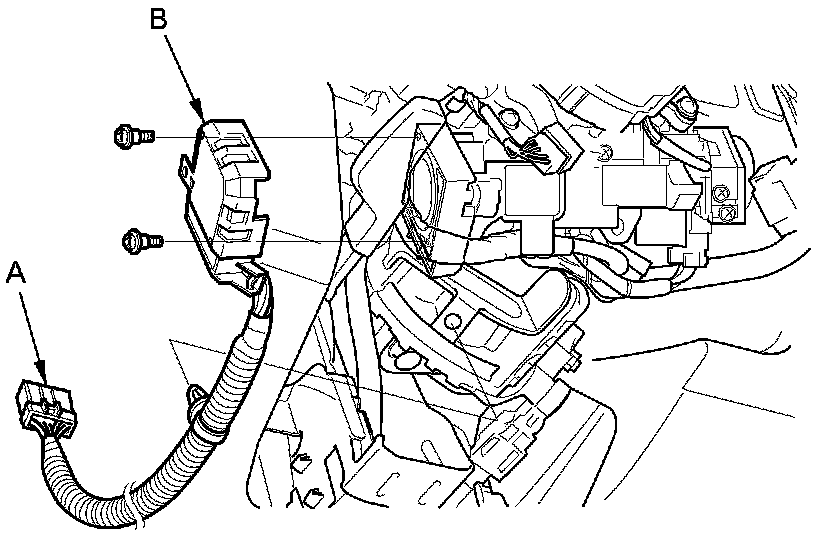

3. Disconnect the 6P connector (A) from the under-dash fuse/relay box.





4. Remove the two screws and the ignition switch (B).

5. Install the switch in the reverse order of removal.

6. Do the battery terminal reconnection procedure.
