Switch: Service and Repair

VTM-4 LOCK Switch Test/Replacement

1. Remove the instrument panel Instrument Panel Removal/Installation.

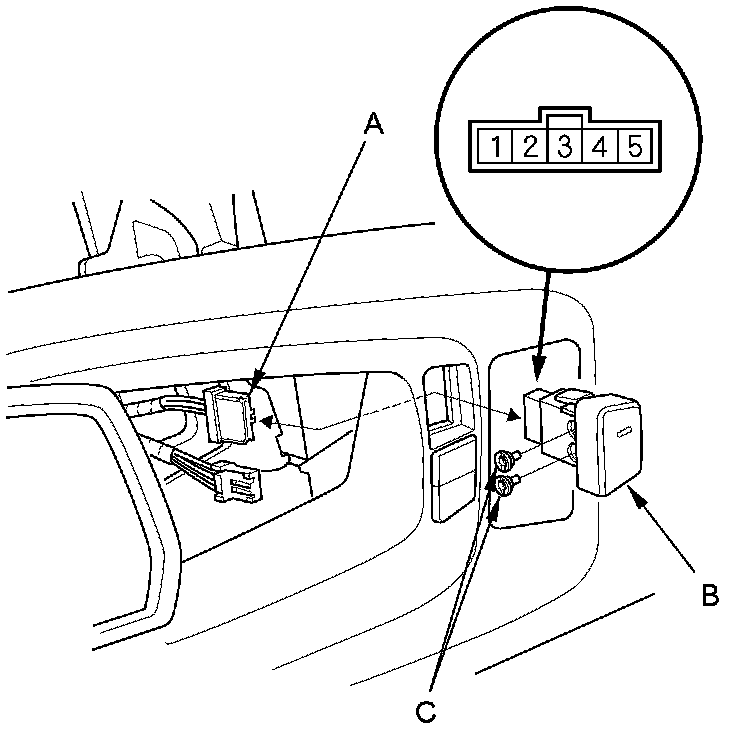

2. Disconnect the VTM-4 LOCK switch 5P connector (A) from the VTM-4 LOCK switch (B), then remove the VTM-4 LOCK switch.

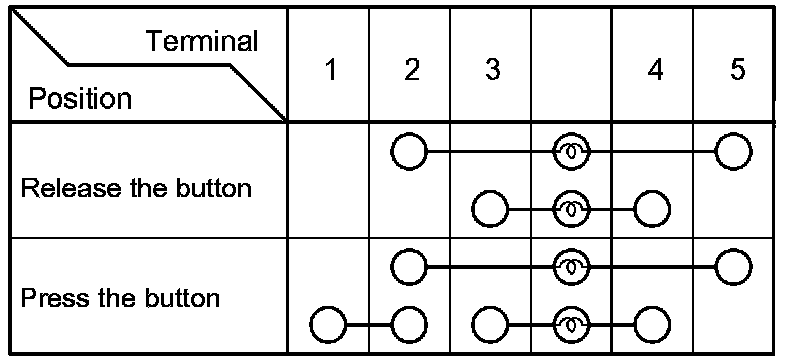

3. Check for continuity between the terminals in each button position according to the table.

4. If the continuity check is not as specified, replace the bulbs (C) or the VTM-4 LOCK switch.
