Differential Temperature Sensor/Switch: Service and Repair

Rear Differential Fluid Temperature Sensor Replacement

1. Drain the differential fluid. Reinstall the drain plug with a new sealing washer Rear Differential Fluid Inspection And Replacement.

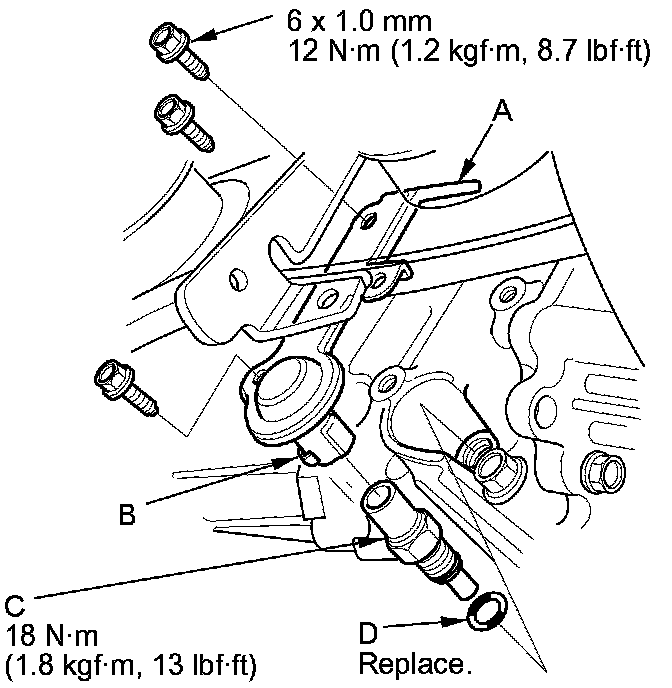

2. Remove the wire harness cover (A), then disconnect the rear differential fluid temperature sensor 2P connector (B).





3. Remove the rear differential fluid temperature sensor (C).

4. Install the rear differential fluid temperature sensor in the reverse order of removal, with a new O-ring (D).

5. Refill the differential with the recommended differential fluid Rear Differential Fluid Inspection And Replacement.
