Power Window Master Switch Replacement
Power Window Master Switch Replacement 1.
Remove the driver's door panel
Service and Repair.
2.

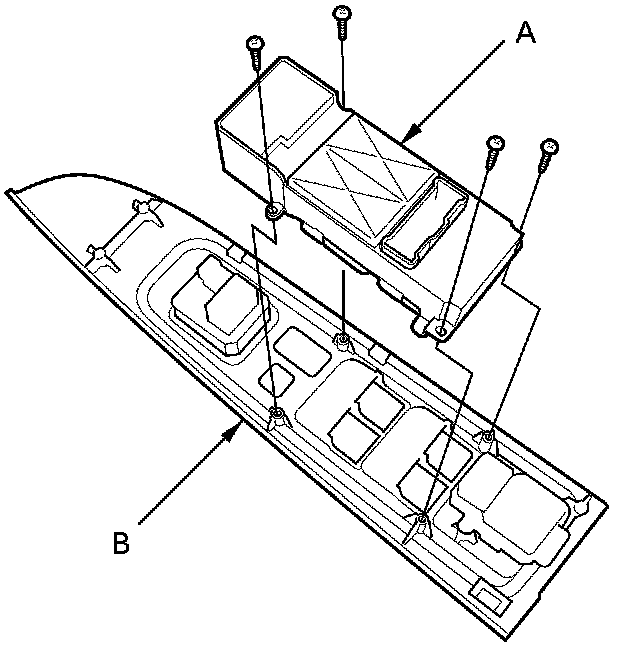

Remove the four mounting screws, then remove the master switch (A) from the switch panel (B).
3.
Install the switch in the reverse order of removal.
4.
Reset the power window control unit
Testing and Inspection.
