DTC Troubleshooting

Control System DTCs

DTC Troubleshooting: P16E3

DTC P16E3 : PGM-FI-Battery Sensor LIN Communication Error

NOTE:
* Before you troubleshoot, record all freeze data and any on-board snapshot, and review the general troubleshooting information How to Troubleshoot the Fuel And Emissions Systems.
* Check for loose terminals on the battery sensor (battery negative (-) terminal).


1. Problem verification:

-1. Turn the ignition switch to ON (II).

-2. Clear the DTC with the HDS How to Troubleshoot the Fuel And Emissions Systems, and wait for 10 seconds.

-3. Check for Pending or Confirmed DTCs with the HDS.

Is DTC P16E3 indicated?
-YES- The failure is duplicated. Go to step 2.
-NO- Intermittent failure, the system is OK at this time. Check for poor connections or loose terminals at the alternator, the battery sensor, and the PCM.

2. DTC Check:

-1. Check for Pending or Confirmed DTCs with the HDS.

Is DTC P16E2 indicated?
-YES- Go to step 3.
-NO- Go to step 7.

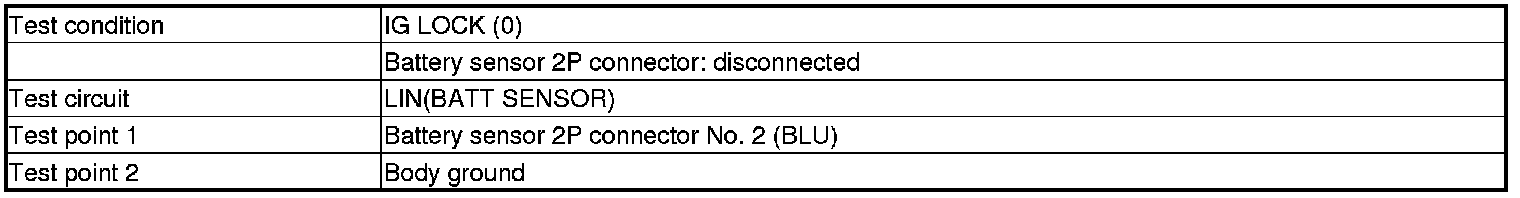

3. Determine possible failure area (LIN(BATT SENSOR)/LIN circuit shorted, others):

-1. Turn the ignition switch to LOCK (0).

-2. Disconnect the following connector.






-3. Check for continuity between test points 1 and 2.










Is there continuity?
-YES- Go to step 4.
-NO- Go to step 5.

4. Shorted wire check (LIN line):

-1. Jump the SCS line with the HDS.

-2. Continue to check for continuity between battery sensor 2P connector terminal No. 2 and body ground, while disconnecting these connectors, one at a time:
* Alternator 1P connector
* PCM connector B (49P)

Does continuity go away when one of the above connectors is disconnected?
-YES- The LIN wire is OK. Replace the part that caused an open when it was disconnected, then do the repair verification.
-NO- Repair a short in the LIN wire between the battery sensor, the alternator, and the PCM (B16), then do the repair verification.

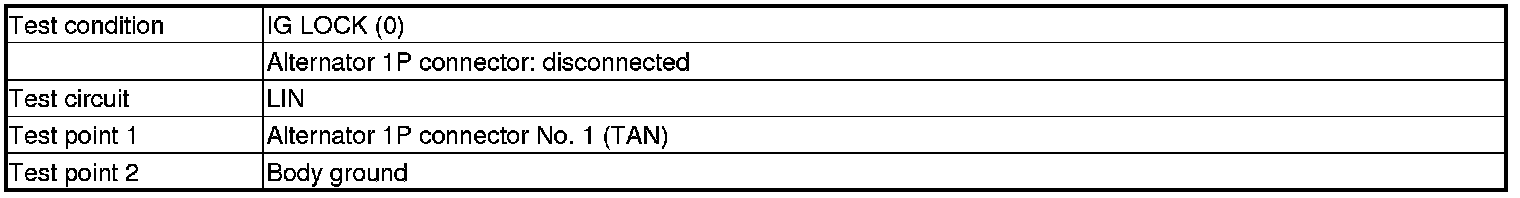

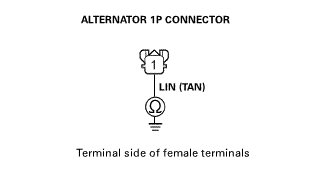

5. Determine possible failure area (battery sensor, others):

-1. Turn the ignition switch to LOCK (0).

-2. Reconnect the battery sensor 2P connector.

-3. Disconnect the following connector.






-4. Check for continuity between test points 1 and 2.










Is there continuity?
-YES- Replace the battery sensor Battery Sensor Removal And Installation, then do the repair verification.
-NO- Go to step 6.

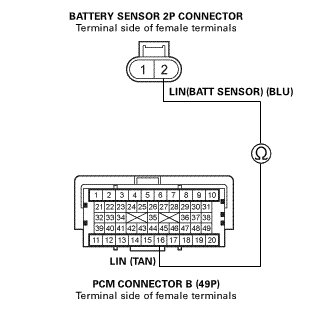

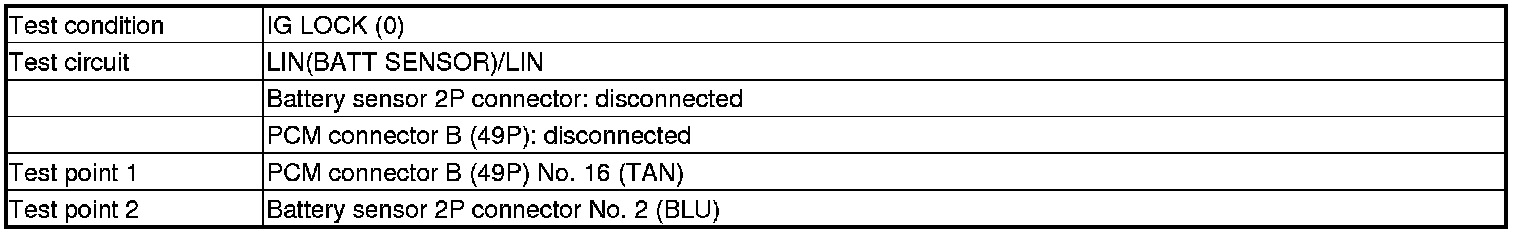

6. Open wire check (LIN(BATT SENSOR)/LIN line):

-1. Jump the SCS line with the HDS.

-2. Disconnect the following connector.






-3. Check for continuity between test points 1 and 2.










Is there continuity?
-YES- The LIN(BATT SENSOR)/LIN wire is OK. Update the PCM PCM Update if it does not have the latest software, or substitute a known-good PCM Service and Repair, then do the repair verification.
-NO- Repair an open in the LIN(BATT SENSOR)/LIN wire between the battery sensor and the PCM (B16), then do the repair verification.

7. Fuse check:

-1. Turn the ignition switch to LOCK (0).

-2. Check the following fuse.






Is the fuse OK?
-YES- The fuse is OK. Go to step 8.
-NO- Repair a short in the +B HORN wire between the battery sensor and the under-hood fuse/relay box, and replace the No. A14 (10 A) fuse, then do the repair verification.

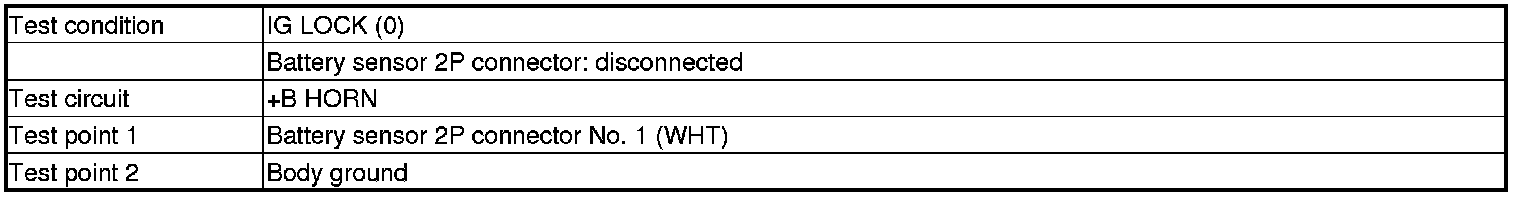

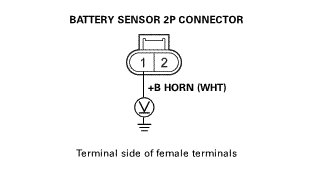

8. Open wire check (+B HORN line):

-1. Disconnect the following connector.






-2. Measure the voltage between test points 1 and 2.










Is there battery voltage?
-YES- The +B HORN wire is OK. Go to step 9.
-NO- Repair an open in the +B HORN wire between the battery sensor and No. A14 (7.5 A) fuse in the under-hood fuse/relay box, then do the repair verification.

9. Open wire check (LIN(BATT SENSOR)/LIN line):

-1. Jump the SCS line with the HDS.

-2. Disconnect the following connector.






-3. Check for continuity between test points 1 and 2.










Is there continuity?
-YES- The LIN(BATT SENSOR) wire is OK. Replace the battery sensor Battery Sensor Removal And Installation, then do the repair verification.
-NO- Repair an open in the LIN(BATT SENSOR)/LIN wire between the battery sensor and the PCM (B16), then do the repair verification.

Repair verification:

-1. Turn the ignition switch to LOCK (0).

-2. Reconnect all connectors.

-3. Turn the ignition switch to ON (II)

-4. Reset the PCM with the HDS How to Troubleshoot the Fuel And Emissions Systems.

-5. Do the PCM idle learn procedure PCM Idle Learn Procedure.

-6. Check for Pending or Confirmed DTCs with the HDS.

Is DTC P16E3 indicated?
-YES- Check for poor connections or loose terminals at the alternator, the battery sensor, and the PCM. If the PCM was updated, substitute a known-good PCM Service and Repair, then recheck. If the PCM was substituted, go to step 1.
-NO- Troubleshooting is complete. If the PCM was substituted, replace the original PCM Service and Repair. If any other Pending or Confirmed DTCs are indicated, go to the indicated DTC's troubleshooting.
