USB Adapter Control Unit Connector For Inputs And Outputs

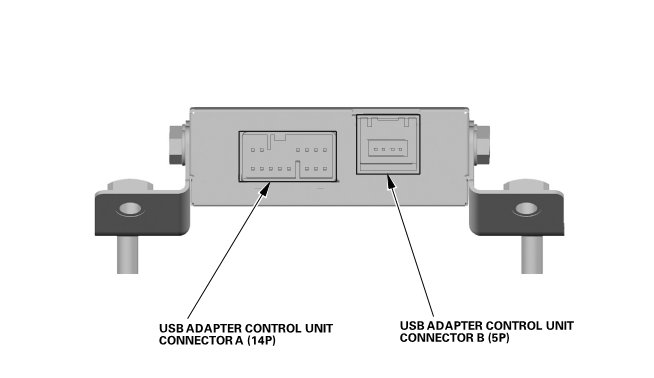

USB Adapter Control Unit Connector for Inputs and Outputs

USB Adapter Control Unit Connector for Inputs and Outputs (without multi-information display unit)

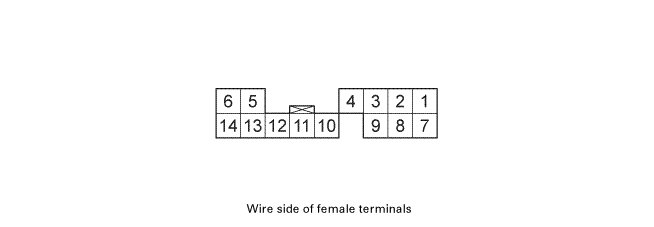

USB ADAPTER CONTROL UNIT CONNECTOR A (14P)

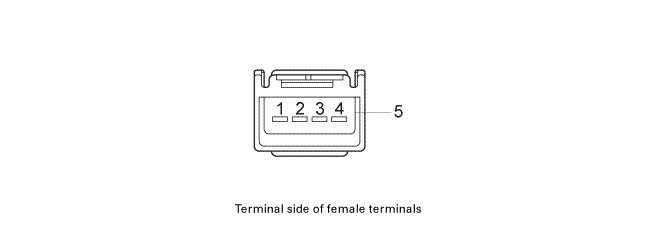

USB ADAPTER CONTROL UNIT CONNECTOR B (5P)
