XM Receiver Removal and Installation

XM Receiver Removal and Installation

Removal

1. Front Door Sill Trim - Passenger's Side





1. Remove the front door sill trim (A).

2. Kick Panel - Passenger's Side





1. Pull out the front door opening seal (A) as needed.

2. Remove the kick panel (B).

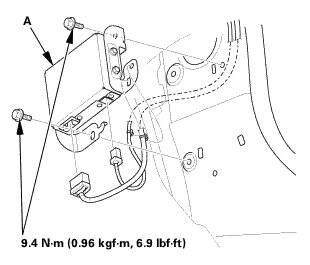

3. XM Receiver





1. Disconnect the connectors.

2. Remove the XM receiver (A).

Installation

1. XM Receiver





1. Install the XM receiver (A).

NOTE: If you are replacing the XM receiver, register the new XM receiver I.D. number with XM Radio, call 800-852-9696.

2. Connect the connectors.

2. Kick Panel - Passenger's Side





1. Install the kick panel (A).

2. Install the front door opening seal (B) as needed.

3. Front Door Sill Trim - Passenger's Side





1. Install the front door sill trim (A).
