Rear Fender Liner: Service and Repair

Rear Inner Fender Removal and Installation

Removal

1. Vehicle Lift

1. Raise the vehicle on a lift, and make sure it is securely supported.

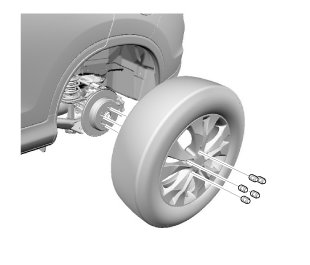

2. Rear Wheel





1. Remove the rear wheel.

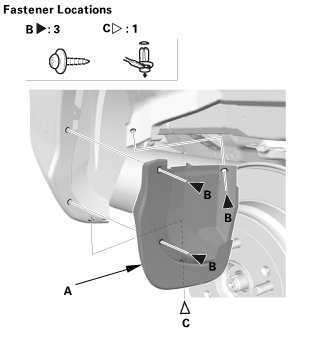

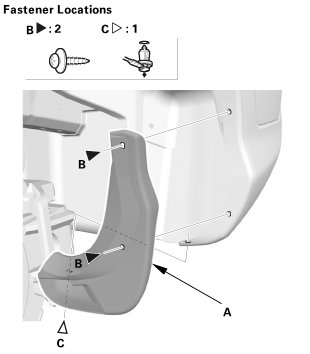

3. Rear Splash Guard (For Some Models)

Left side





Right side





1. Remove the screws (A) and the clip (B), then remove the rear splash guard (C).

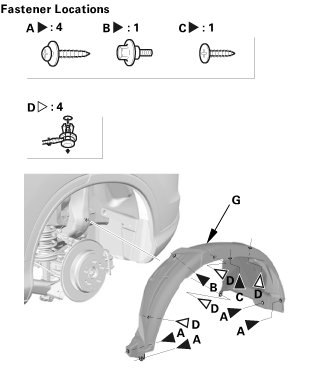

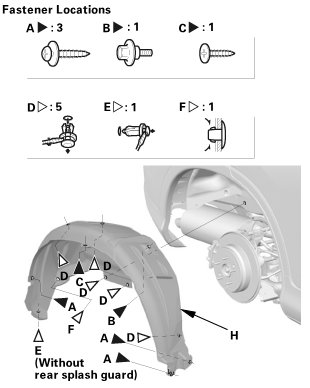

4. Rear Inner Fender (For Right and Left Guide)

Left side





Right side





1. Remove the screws (A, C), the bolt (B), and the clips (D, E, F) securing the rear inner fender, then remove the left rear inner fender (G) or the right rear inner fender (H).

Installation

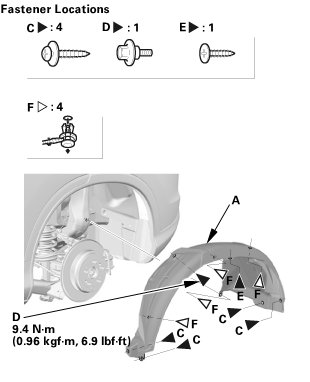

1. Rear Inner Fender (For Right and Left Guide)

Left side





Right side





1. Install the left rear inner fender (A) or the right rear inner fender (B), then install the screws (C, E), the bolt (D), and the clips (F, G, H). Make sure the clips snap into place securely.

2. Rear Splash Guard (For Some Models)

Left side





Right side





1. Install the rear splash guard (A), then install the screws (B) and the clip (C). Make sure the clip snaps into place securely.

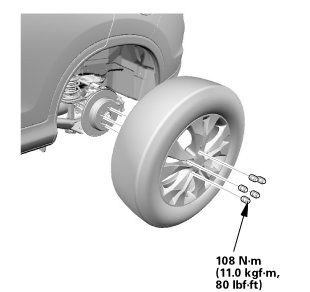

3. Rear Wheel





1. Install the rear wheel.

NOTE: Before installing the wheel, clean the mating surfaces between the brake disc/drum and the inside of the wheel.
