Luggage / Roof Rack: Service and Repair

Roof Rail Removal and Installation

Removal

1. Roof Rail

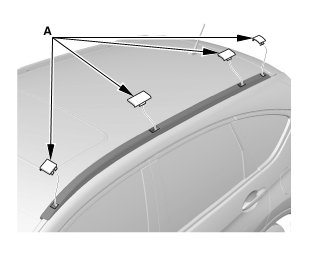

1. Remove the caps (A). (4 Places)

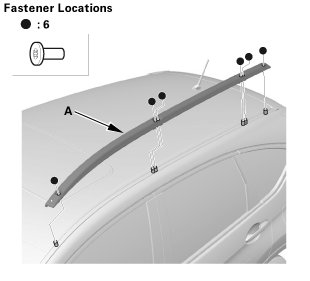

2. Remove the roof rail (A).

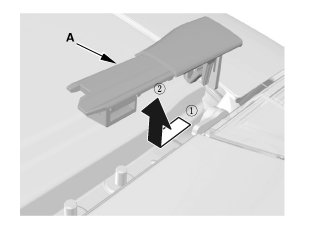

3. If necessary, slide the rear roof side trim (A) forward to release it from the body.

Installation

1. Roof Rail

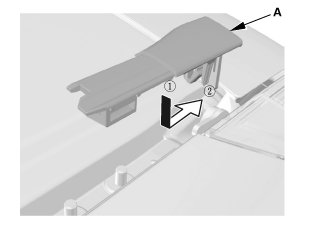

1. Slide the rear roof side trim (A) rearward to install it to the body.

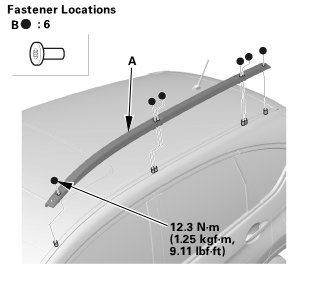

2. Install the roof rail (A), then install the nuts (B).

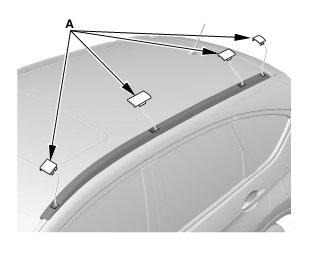

3. Install the caps (A). (4 Places)
