Rear Seat Armrest Removal and Installation

Rear Seat Armrest Removal and Installation

Removal

1. Rear Seat Armrest

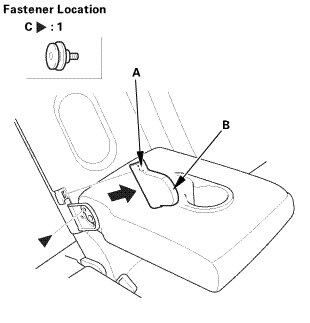

1. Release the tab (A), then slide the armrest side cover (B) forward.

2. Remove the bolt (C) with a 5 mm hex wrench.

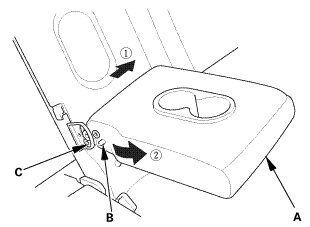

3. Slide the armrest (A) toward the left side.

4. Remove the right pivot shaft (B) from the friction plate (C).

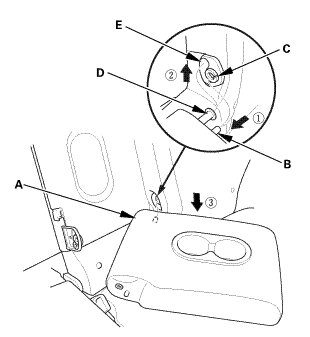

5. Slide the armrest (A) toward the right side.

6. Release the left pivot shaft (B) from the collar (C).

7. Pull up the armrest, then pull out the armrest shaft (D) from the rear seat-back frame (E), then remove the armrest.

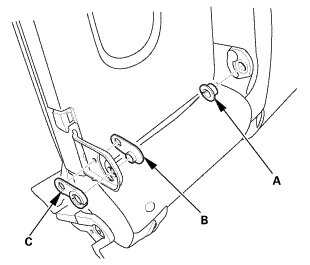

8. Remove the collar (A), the inner friction plate (B), and the outer friction plate (C) from the rear seat-back frame.

Installation

1. Rear Seat Armrest





1. Install the collar (A), the inner friction plate (B), and the outer friction plate (C) to the rear seat-back frame.

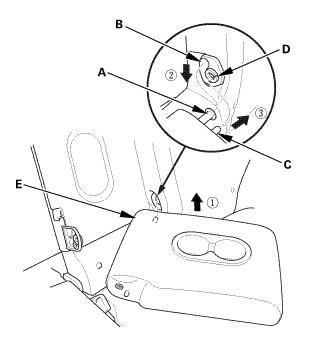

2. Insert the armrest shaft (A) to the seat-back frame (B).

3. Insert the left pivot shaft (C) to the collar (D).

4. Slide the armrest (E) toward the left side.

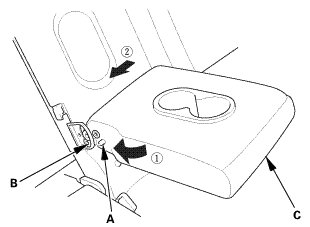

5. Install the pivot shaft (A) to the friction plate (B).

6. Slide the armrest (C) toward the right side.

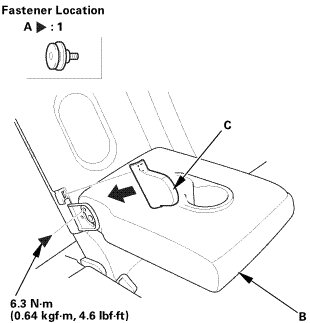

7. Install the bolt (A) with an 5 mm hex wrench to the armrest (B), then install the armrest side cover (C).
