Installation

Rear Seat-Back Cover Removal and Installation

Installation

NOTE: Steps 1-3 show installing the right side, steps 4-7 show installing the left side.

1. Rear Seat-Back Cover - Right Side

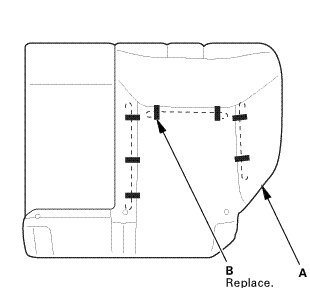

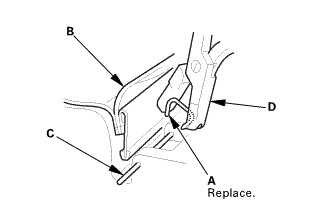

NOTE: Replace all of the upholstery rings (A) fastening the seat-back cover (B) to the pad wires (C) with new ones using commercially available upholstery ring pliers (D).

Leather Seat





Fabric Seat

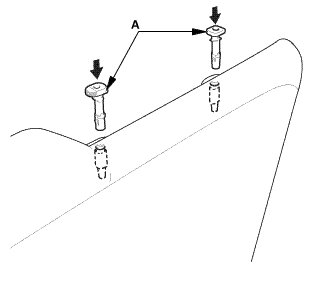

1. Install the upholstery rings (A) securing the rear seat-back cover (B).

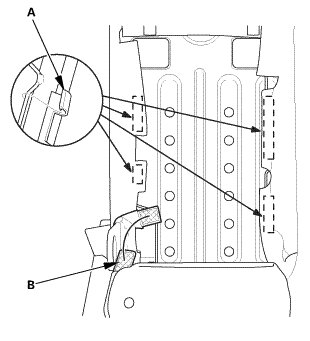

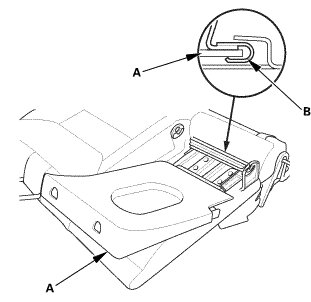

2. Install the rear seat-back cover/pad (A) to the rear seat-back frame (B). Make sure the clip (C) snaps into place securely.

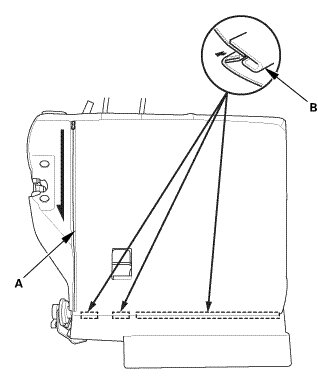

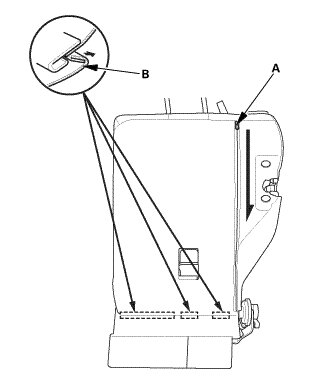

3. Zip the rear seat-back cover (A).

4. Install the hook strip (B) into place securely.

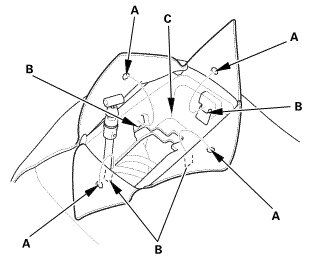

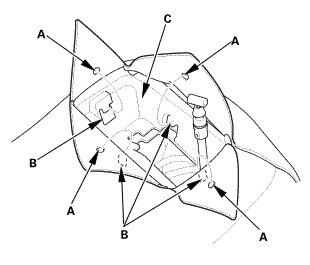

5. Install the holes (A) to the hooks (B) of the seat-back inner trim (C).





6. Install the hook and loop fastener (A) into place securely.

7. Install the hook (B) into place securely.

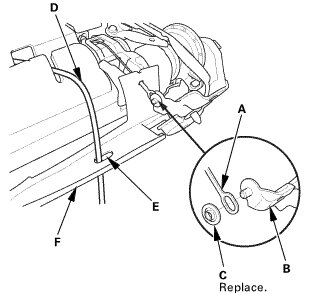

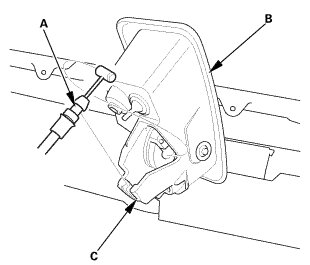

8. Install the rear seat-back cancel control cable (A) to the left rear seat cushion pivot (B), then install the push nut (C).

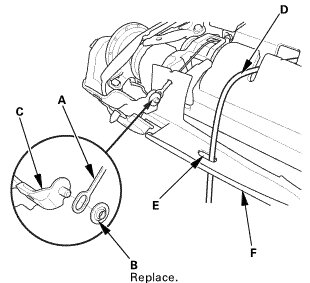

9. Install the rear seat arrange control cable (D) through the hole (E) in the rear seat-back cover (F).

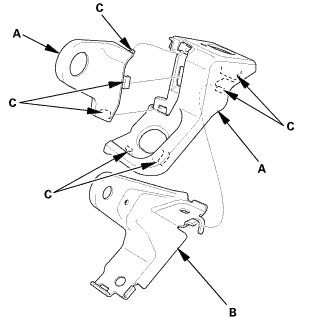

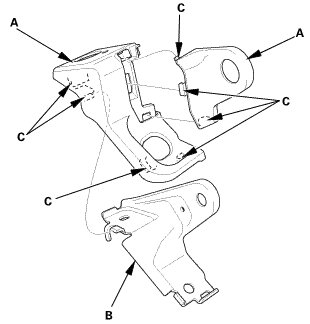

10. Install the covers (A) to left rear seat pivot (B). Make sure the hooks (C) snap into place securely.





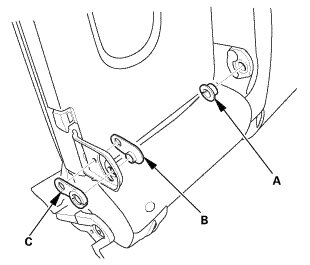

11. Apply oil to the pivot bushing (A).

12. Install the pivot bushing, the left rear seat inner pivot (B), and the washer (C).

13. Install the bolts (D) with a 6 mm hex wrench.

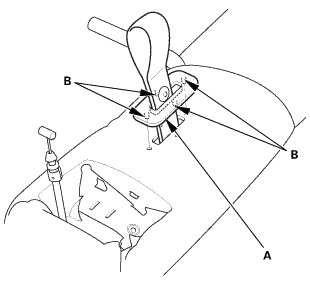

14. Install the strap cover (A). Make sure the hooks (B) snap into place securely.

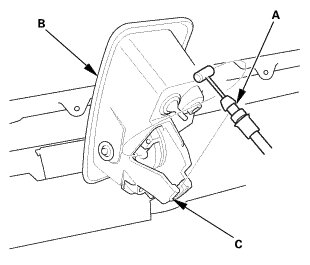

15. Connect the rear seat-back lock knob control cable (A) to the lock knob trim (B).

16. Install the rear seat-back lock knob control cable to the cable bracket (C).

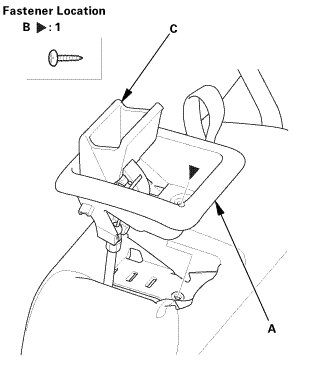

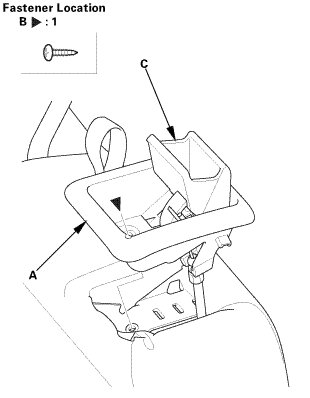

17. Install the lock knob trim (A).

18. Install the screw (B), while pulling up the lock knob (C).

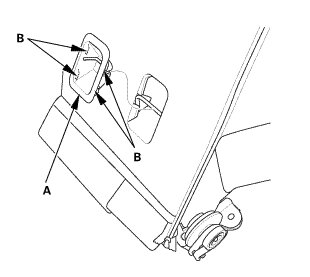

19. Install the tether anchor cover (A). Make sure the hooks (B) snap into place securely.

2. Rear Seat-Back Latch Cover - Right Side

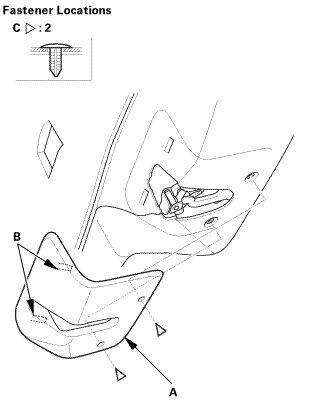

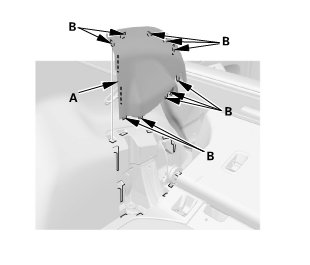

1. Install the right rear seat latch cover (A). Make sure the hooks (B) and clips (C) snap into place securely.

3. Rear Seat Head Restraint

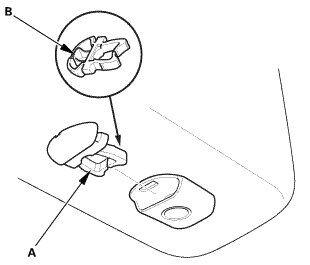

1. Inspect the knob (A) if it has any of the following damage:

* Any cracks or deformation at the tab (B) of the knob.

* Any cracks or stress-whitening at the tab (B) of the knob.

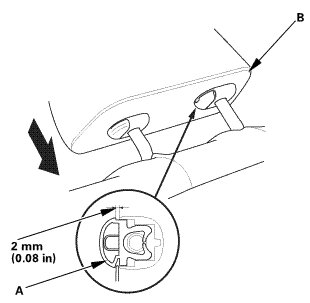

2. Insert the knob (A) to the head restraint (B) as shown.

3. Install the head restraint.

NOTE: Make sure the head restraint is locked securely. If not, replace the head restraint.

4. Rear Seat-Back Cover - Left Side

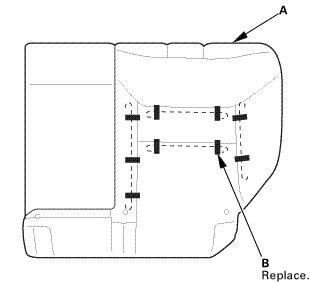

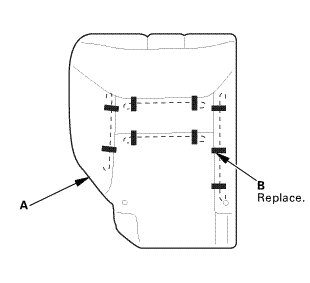

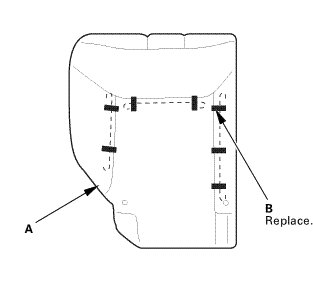

NOTE: Replace all of the upholstery rings (A) fastening the seat-back cover (B) to the pad wires (C) with new ones using commercially available upholstery ring pliers (D).

Leather Seat





Fabric seat





1. Install the upholstery rings (A) securing the rear seat-back cover (B).

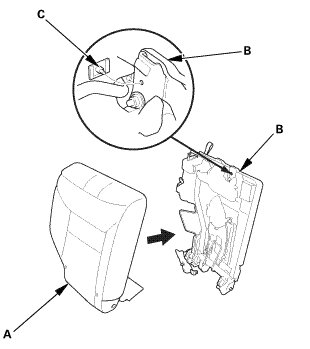

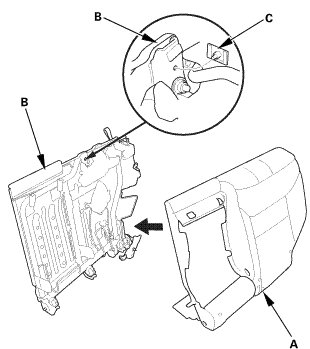

2. Install the rear seat-back cover/pad (A) to the rear seat-back frame (B). Make sure the clip (C) snaps into place securely.





3. Install the head restraint guides (A). Make sure the guides are installed in the seat-back frame securely.





4. Zip the rear seat-back cover (A).

5. Install the hook strip (B) into place securely.





6. Install the holes (A) to the hooks (B) of the seat-back inner trim (C).





7. Install the hook and loop fastener (A) into place securely.

8. Install the hook strip (B) into place securely.

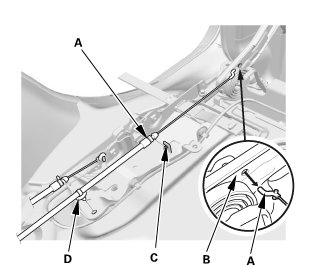

9. Install the rear seat-back cancel control cable (A) to the left rear seat cushion pivot (B), then install the push nut (C).

10. Install the rear seat arrange control cable (D) through the hole (E) in the rear seat-back cover (F).





11. Install the hook strips (A) into place securely.

12. Install the hook and loop fastener (B) into place securely.





13. Install the covers (A) to left rear seat pivot (B). Make sure the hooks (C) snap into place securely.





14. Apply oil to the pivot bushing (A).

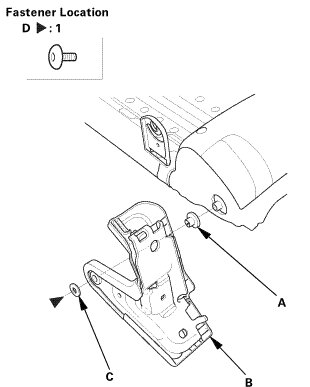

15. Install the pivot bushing, the left rear seat inner pivot (B), and the washer (C).

16. Install the bolts (D) with a 6 mm hex wrench.

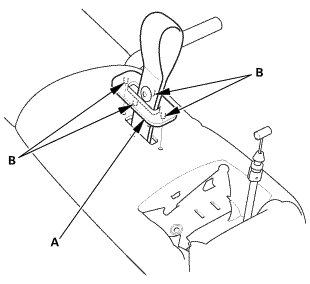

17. Install the strap cover (A). Make sure the hooks (B) snap into place securely.





18. Connect the rear seat-back lock knob control cable (A) to the lock knob trim (B).

19. Install the rear seat-back lock knob control cable to the cable bracket (C).





20. Install the lock knob trim (A).

21. Install the screw (B), while pulling up the lock knob (C).

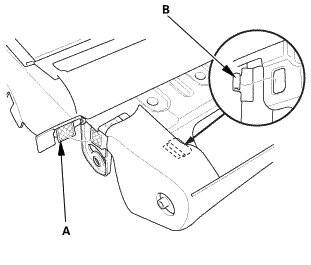

22. Install the lower edge of the armrest back panel (A) to the hook strip (B).

23. Install the rear armrest back panel. The hooks (C) snap into place securely.





24. Install the tether anchor cover (A). Make sure the hooks (B) snap into place securely.

5. Rear Seat-Back Latch Cover - Left Side

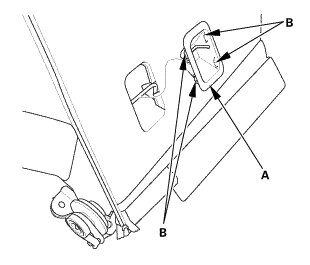

1. Install the left rear seat latch cover (A). Make sure the hooks (B) and the clips (C) snap into place securely.

6. Rear Seat Armrest





1. Install the collar (A), the inner friction plate (B), and the outer friction plate (C) to the rear seat-back frame.

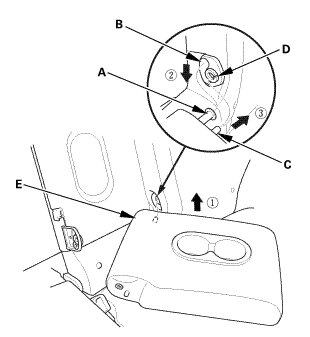

2. Insert the armrest shaft (A) to the seat-back frame (B).

3. Insert the left pivot shaft (C) to the collar (D).

4. Slide the armrest (E) toward the left side.





5. Install the pivot shaft (A) to the friction plate (B).

6. Slide the armrest (C) toward the right side.

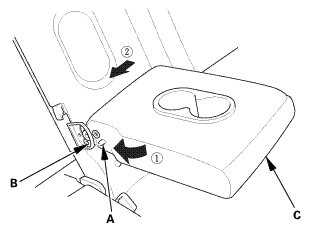

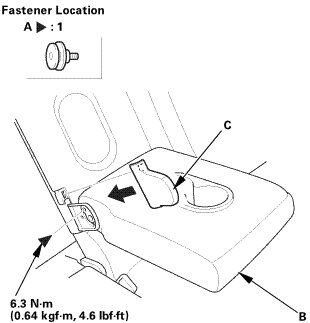

7. Install the bolt (A) with an 5 mm hex wrench to the armrest (B), then install the armrest side cover (C).

7. Rear Seat Head Restraint - Left Side





Left Rear Head Restraint

1. Inspect the knob (A) if it has any of the following damage:

* Any cracks or deformation at the tab (B) of the knob.

* Any cracks or stress-whitening at the tab (B) of the knob.





2. Insert the knob (A) to the head restraint (B) as shown.

3. Install the head restraint.

NOTE: Make sure the head restraint is locked securely. If not, replace the head restraint.





Center Rear Head Restraint

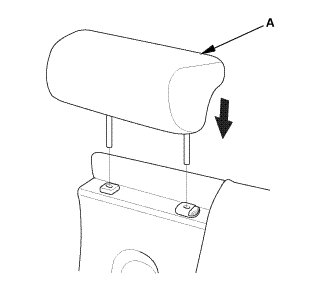

1. Install the center rear head restraint (A).

8. Rear Seat-Back

Left Side





Right Side

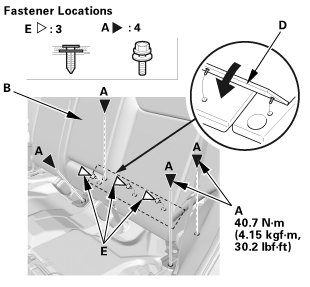

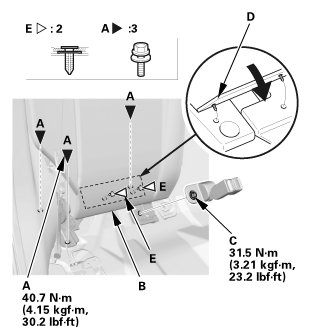

1. Left Side: Install the mounting bolts (A), then install the rear seat-back (B).

2. Right Side: Install the mounting bolts (A) and anchor bolt (B), then install the rear seat-back (C).

3. Install the rear seat-back cover (D). The clips (E) snap into place securely.





4. Connect the rear seat-back arrange control cable (A) to the rear seat cushion foot (B).

5. Install the rear seat-back arrange control cable to the cable bracket (C).

6. Install the cable clip (D).

NOTE:
* Make sure the cables are connected securely.

* Make sure the rear seat cushion latches and unlatches properly.

9. Rear Seat Foot Cover

Left Side





Right Side

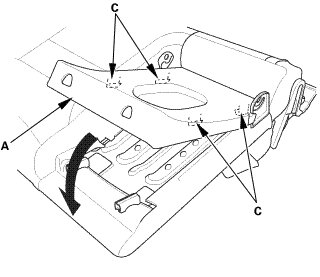

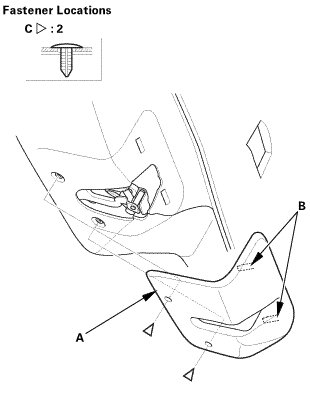

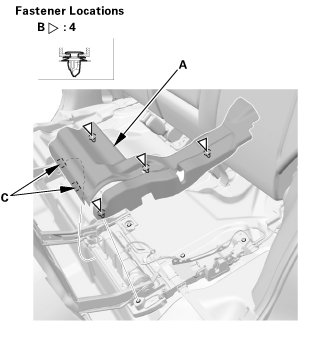

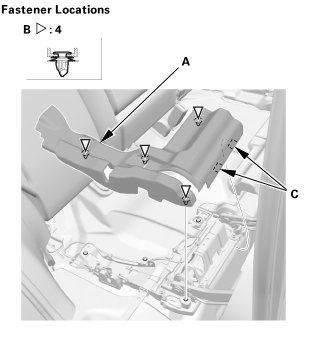

1. Install the rear seat cushion foot cover (A). Make sure the clips (B) and the hooks (C) snap into place securely.

10. Rear Damper Maintenance Cover





1. Fold down the rear seat-back.

2. Install the rear damper maintenance cover (A). Make sure the hooks (B) snap into place securely.

11. Cargo Floor Cover





1. Install the cargo floor cover (A).

12. Tonneau Cover (For Some Models)





1. Install the tonneau cover (A).
