Power Mirror Switch: Testing and Inspection

Power Mirror Switch Removal, Installation, and Test

Removal

1. Door Mirror Cover

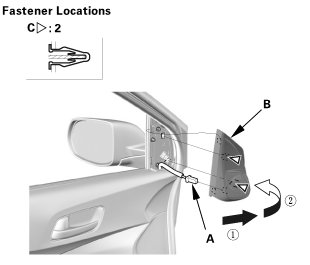

1. Carefully pry out the door mirror cover (A) with the appropriate trim tool to detach the clips (B), then remove the door mirror cover.

2. With tweeter: Disconnect the connector (C).

2. Front Door Power Window Switch Panel

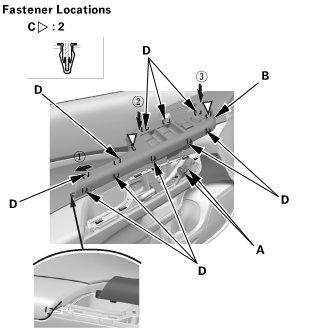

1. Carefully pry out on the notch (A) in the power window switch panel (B) with the appropriate trim tool to detach the clips (C) and the hooks (D). Disconnect the connectors (E), then remove the power window switch panel.

3. Power Mirror Switch

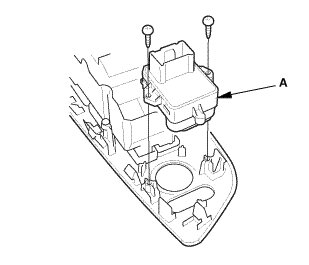

1. Remove the power mirror switch (A).

Test

1. Power Mirror Switch - Test

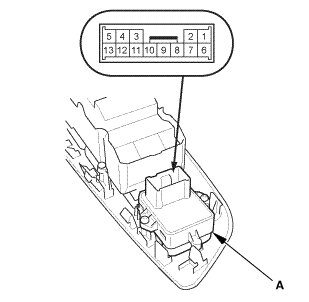

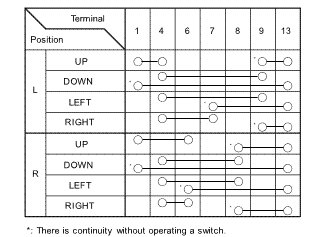

1. Check for continuity between the terminals in each switch position according to the table.

2. If the continuity is not as specified, replace the power mirror switch (A).

Installation

1. Power Mirror Switch





1. Install the power mirror switch (A).

2. Front Door Power Window Switch Panel

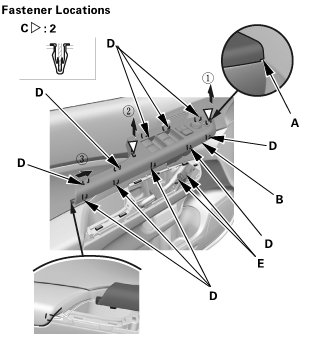

1. Connect the connectors (A), then install the power window switch panel (B). Make sure the clips (C) and the hooks (D) snap into place securely.

3. Door Mirror Cover





1. With tweeter: Connect the connector (A).

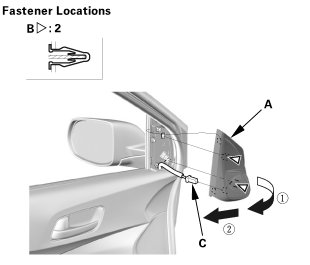

2. Install the door mirror cover (B). Make sure the clips (C) snap into place securely.
