Sunroof / Moonroof Switch: Testing and Inspection

Moonroof Switch Removal, Installation, and Test

Removal

1. Front Individual Map Light (with moonroof)





1. Turn the front individual map light switch OFF.

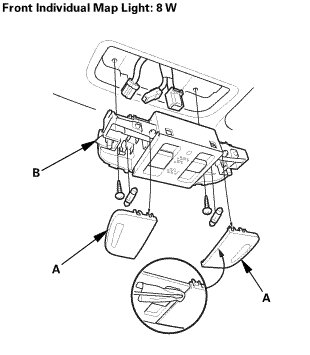

2. Carefully pry off the lenses (A) with a flat-tip screwdriver.

3. Remove the bulbs.

4. Remove the front individual map light (B).

5. Disconnect the connectors.

2. Moonroof Switch

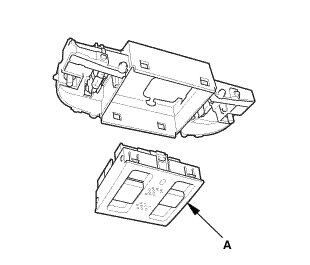

1. Remove the moonroof switch (A).

3. Moonroof Switch Bulb

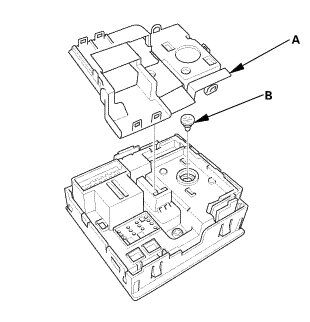

1. Remove the cover (A), then remove the bulb (B).

Test

1. Moonroof Switch - Test









NOTE: When doing the moonroof switch test, install the bulb correctly.

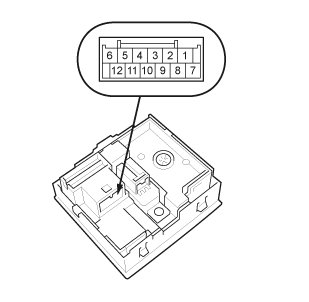

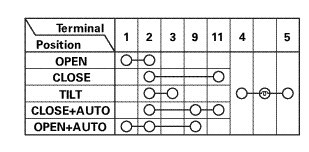

1. Check for continuity between the terminals in each switch position according to the table.

2. If the continuity check is not as specified, replace the switch.

Installation

1. Moonroof Switch Bulb

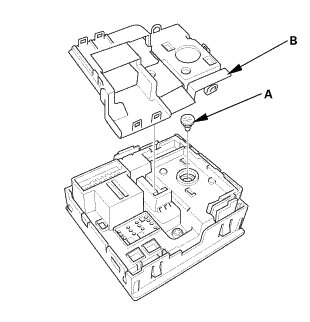

1. Install the bulb (A) and cover (B).

2. Moonroof Switch





1. Install the moonroof switch (A).

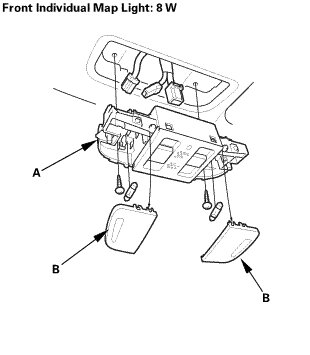

3. Front Individual Map Light (with moonroof)





1. Connect the connectors.

2. Install the front individual map lights (A).

3. Install the bulbs.

4. Carefully install the lenses (B).
