Home >> Honda >> 2012 >> CR-V 2WD L4-2.4L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Power and Ground Distribution >> Relay Box >> Under-Dash Fuse/Relay Box >> KX Mexico Models

KX Mexico Models



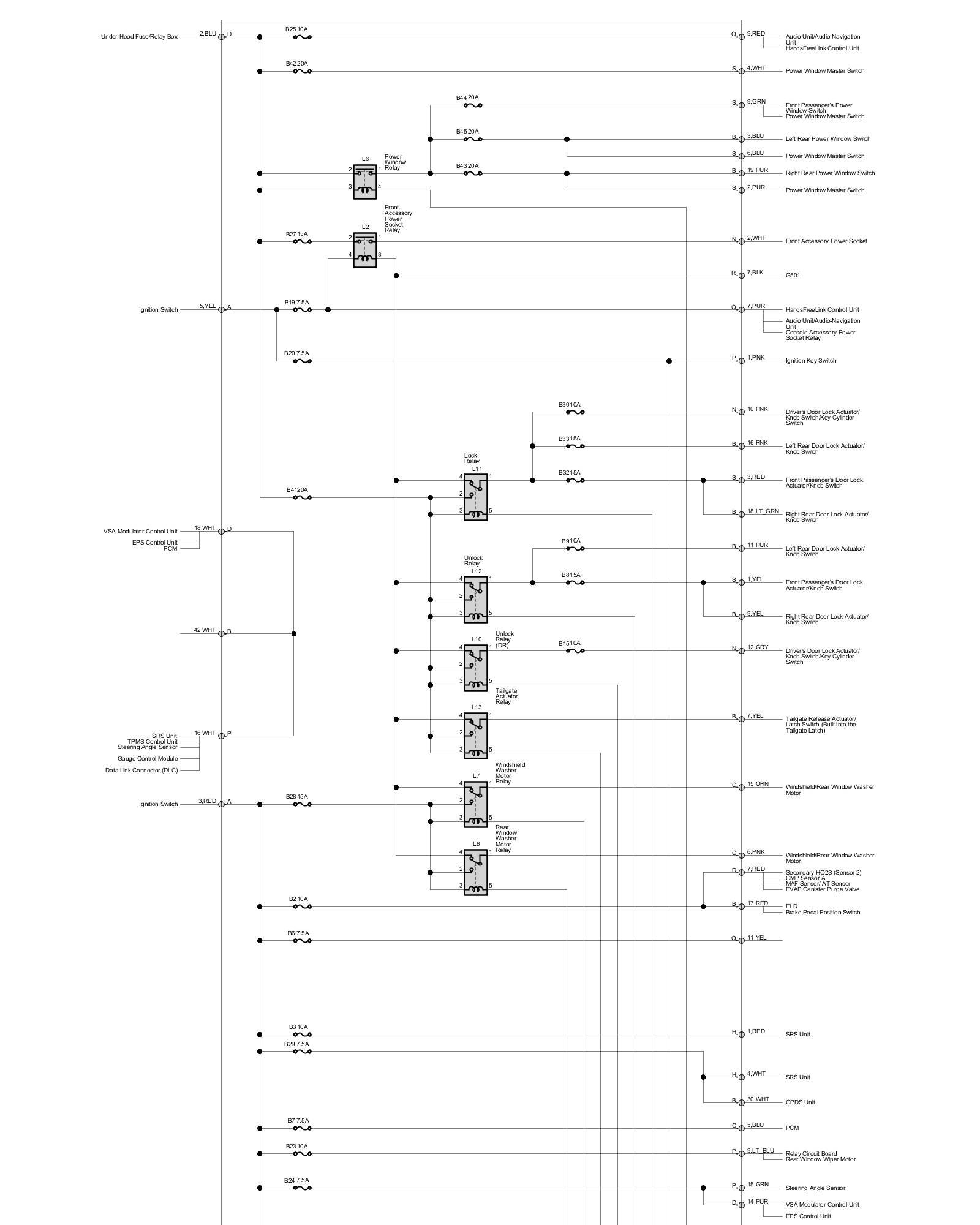

Fuse/Relay Box Diagram - Under-Dash Fuse/Relay Box

KX Mexico Emissions, 5-door LX, RM3(2WD), AT Transmission


















KX Mexico Emissions, 5-door EX, RM3(2WD), AT Transmission


















KX Mexico Emissions, 5-door EX-L, RM4(4WD), AT Transmission
