KA USA Models

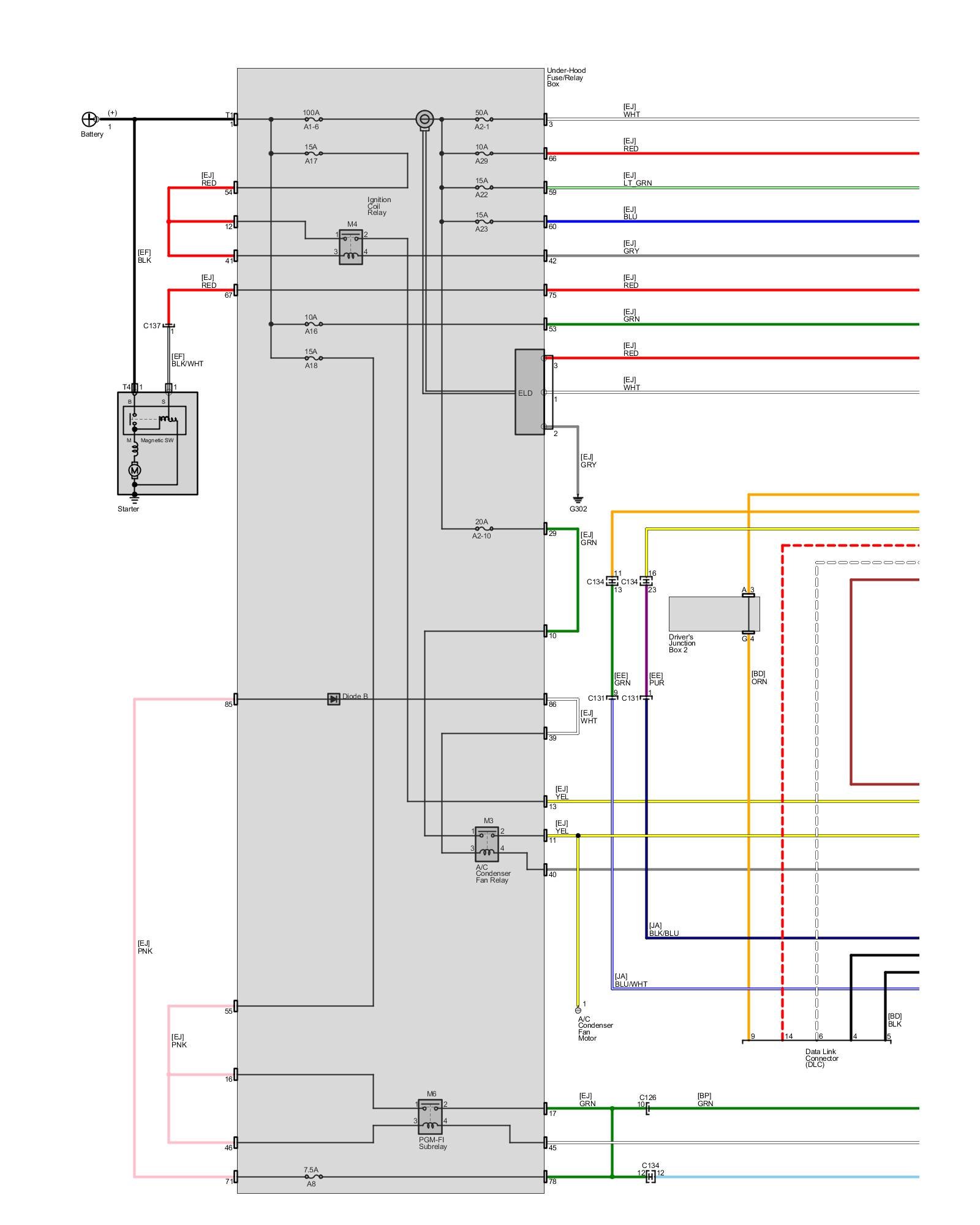

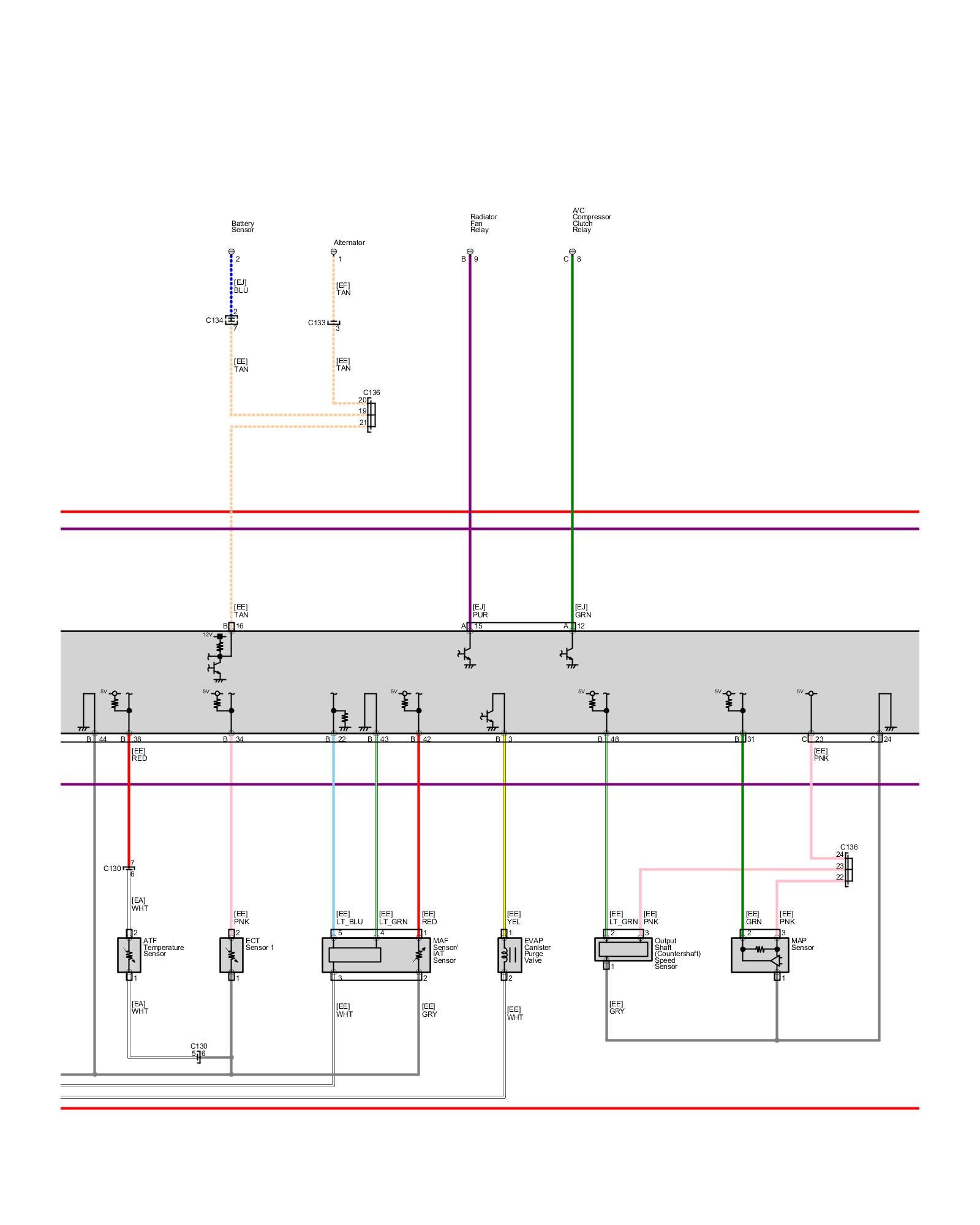

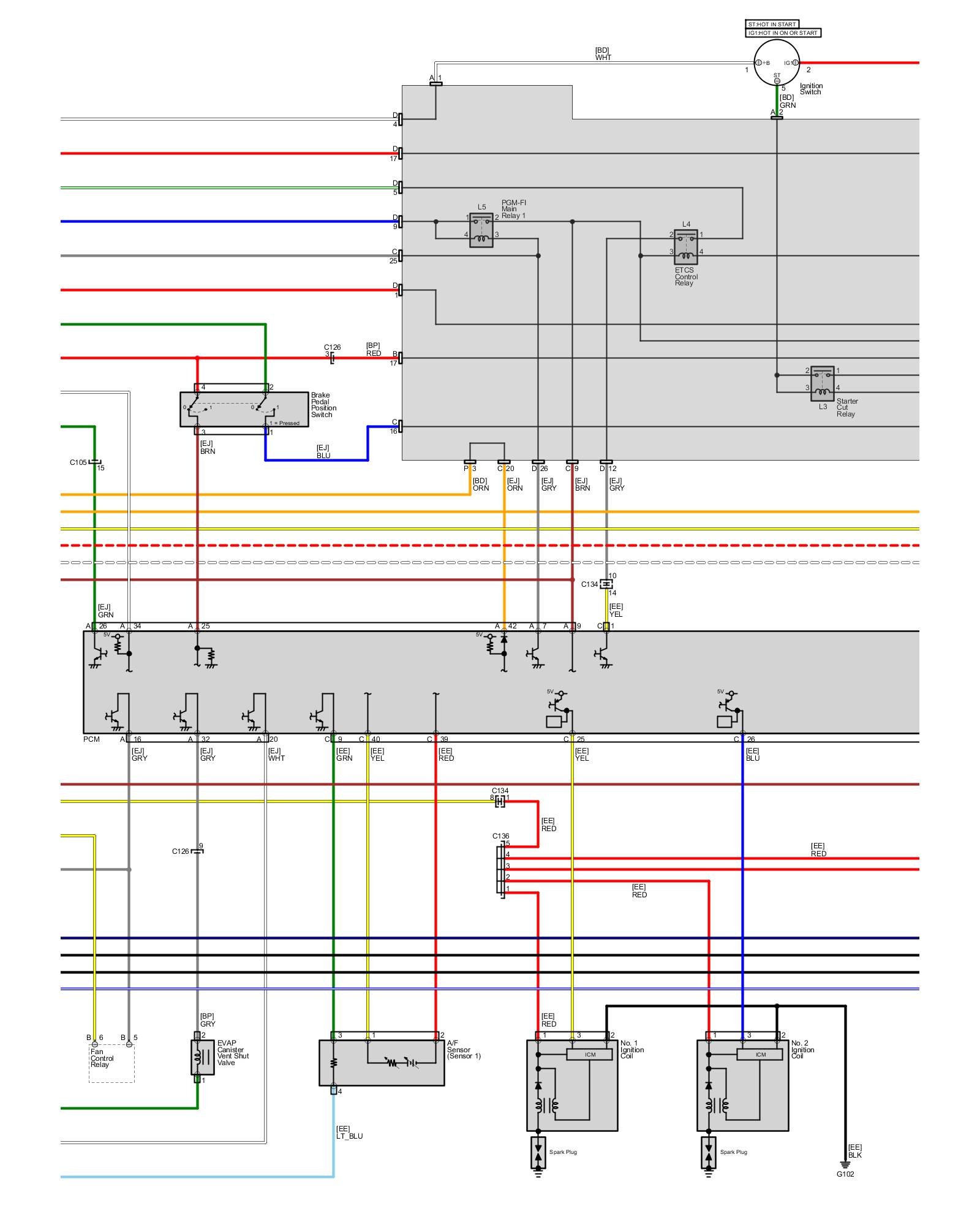

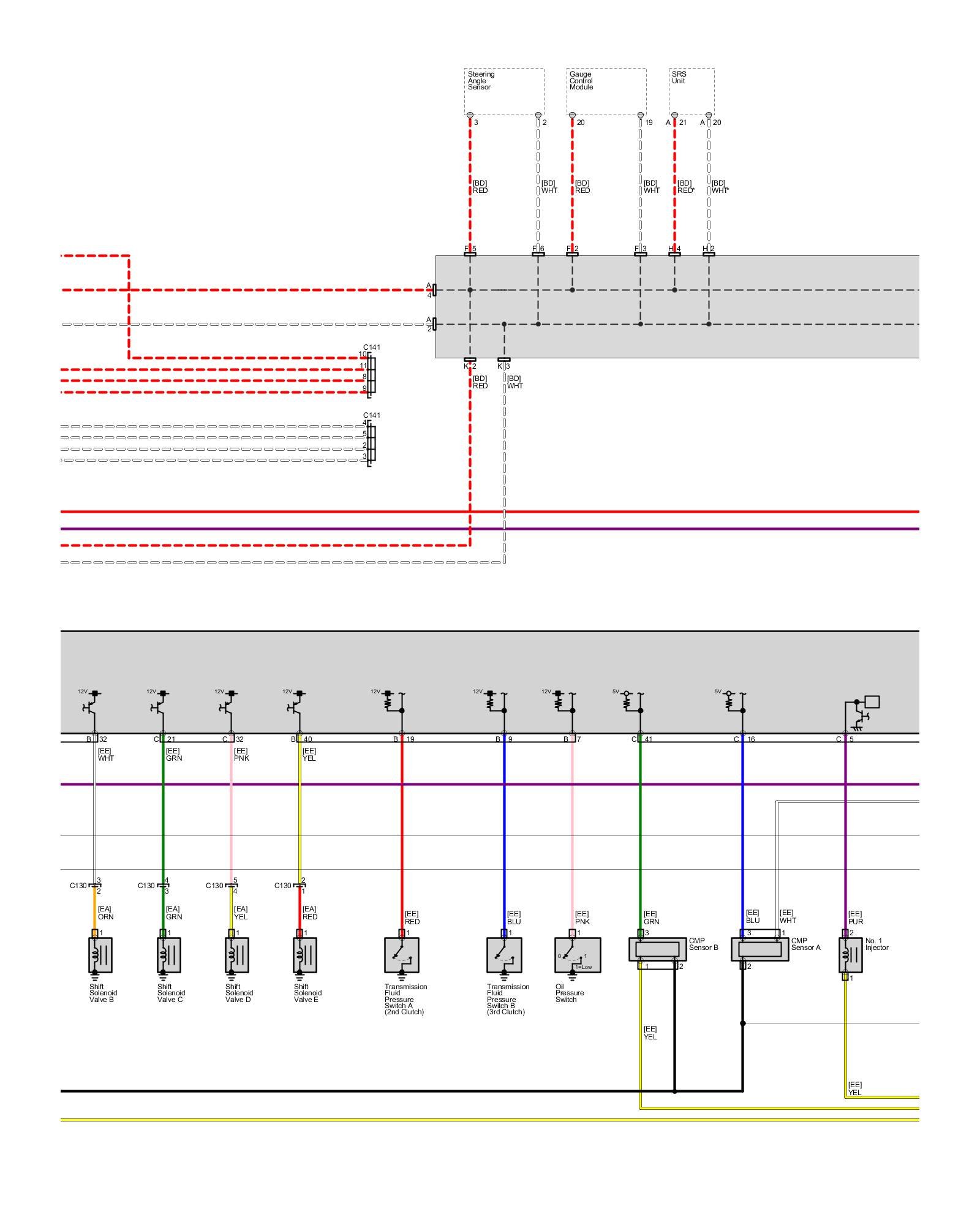

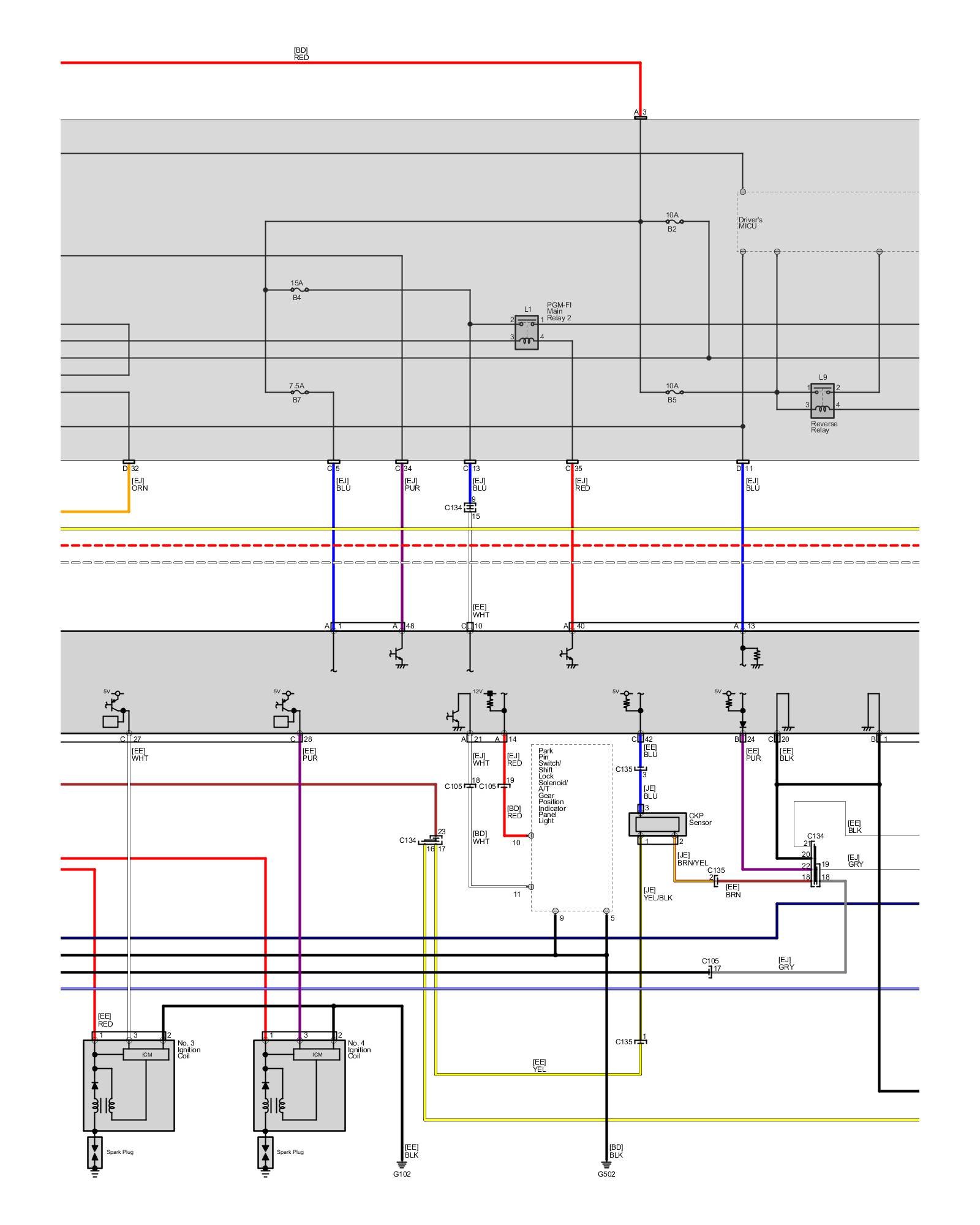

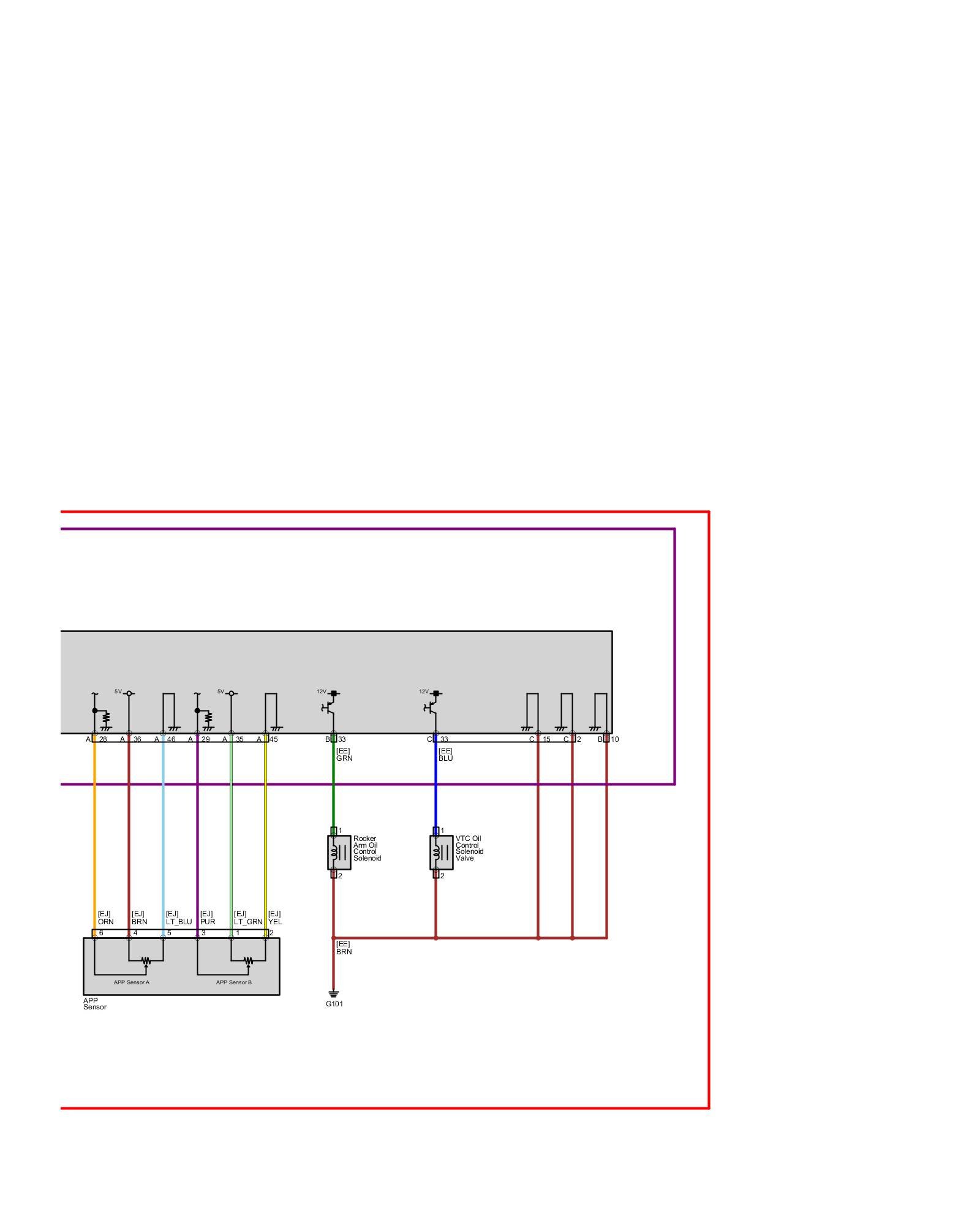

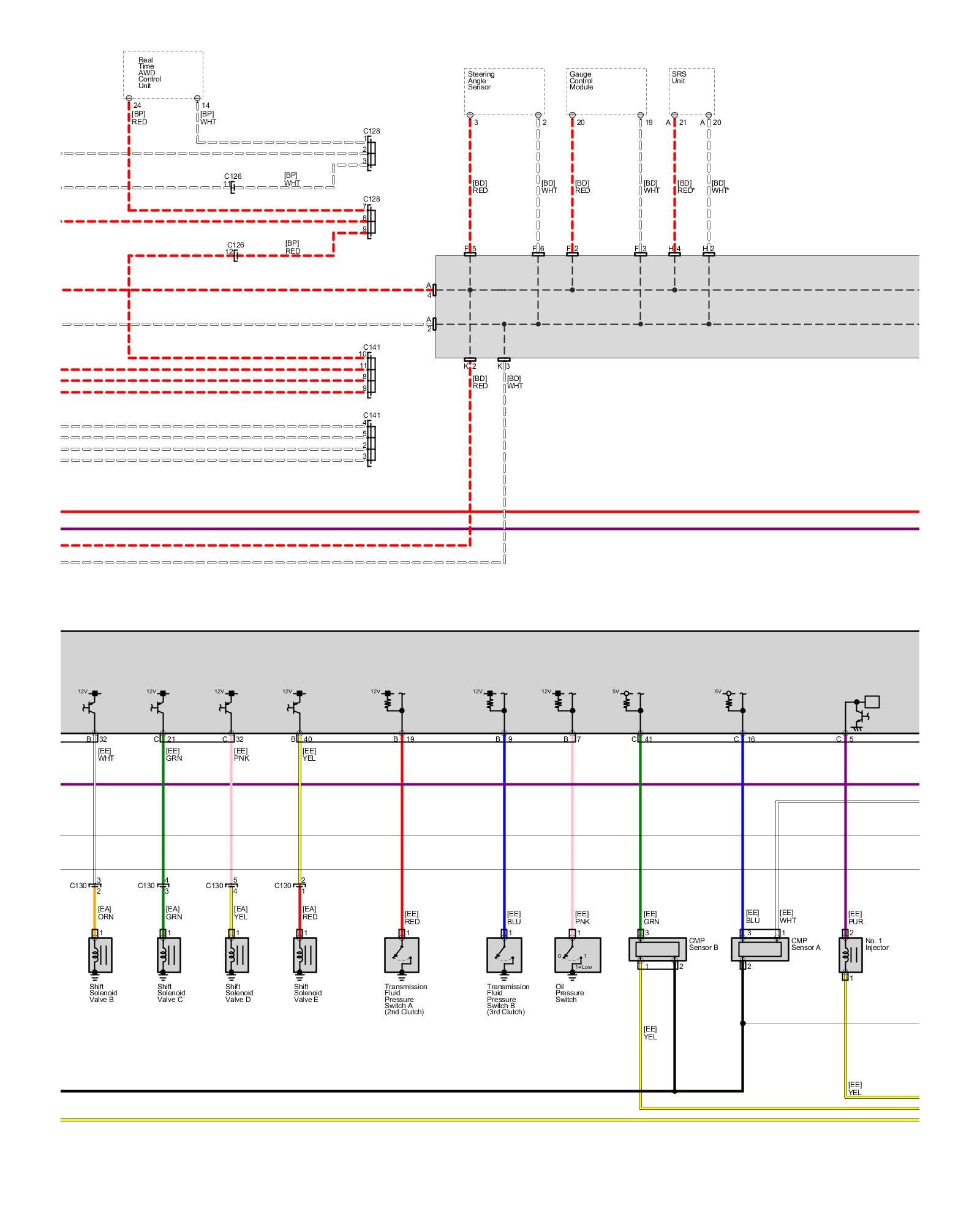

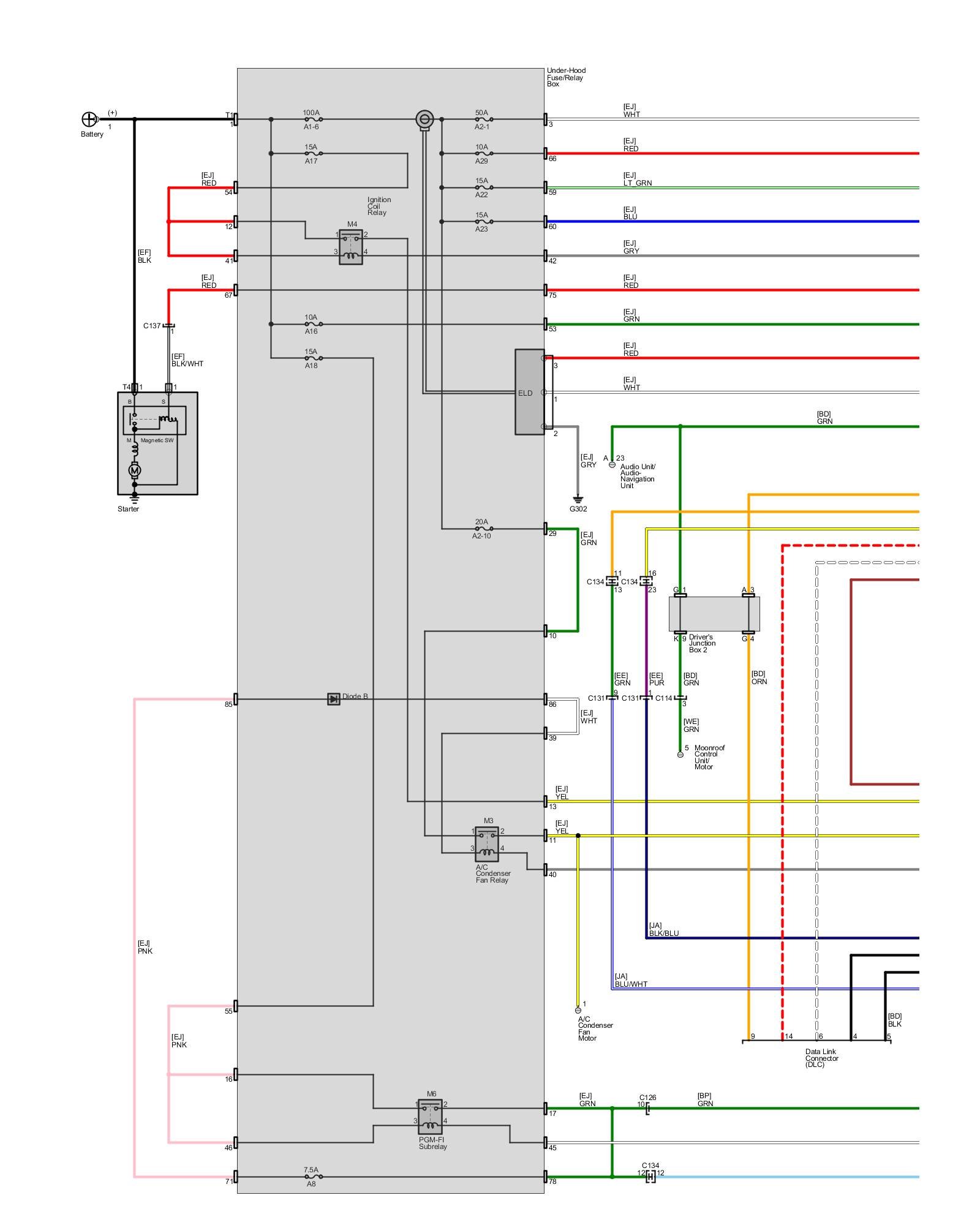

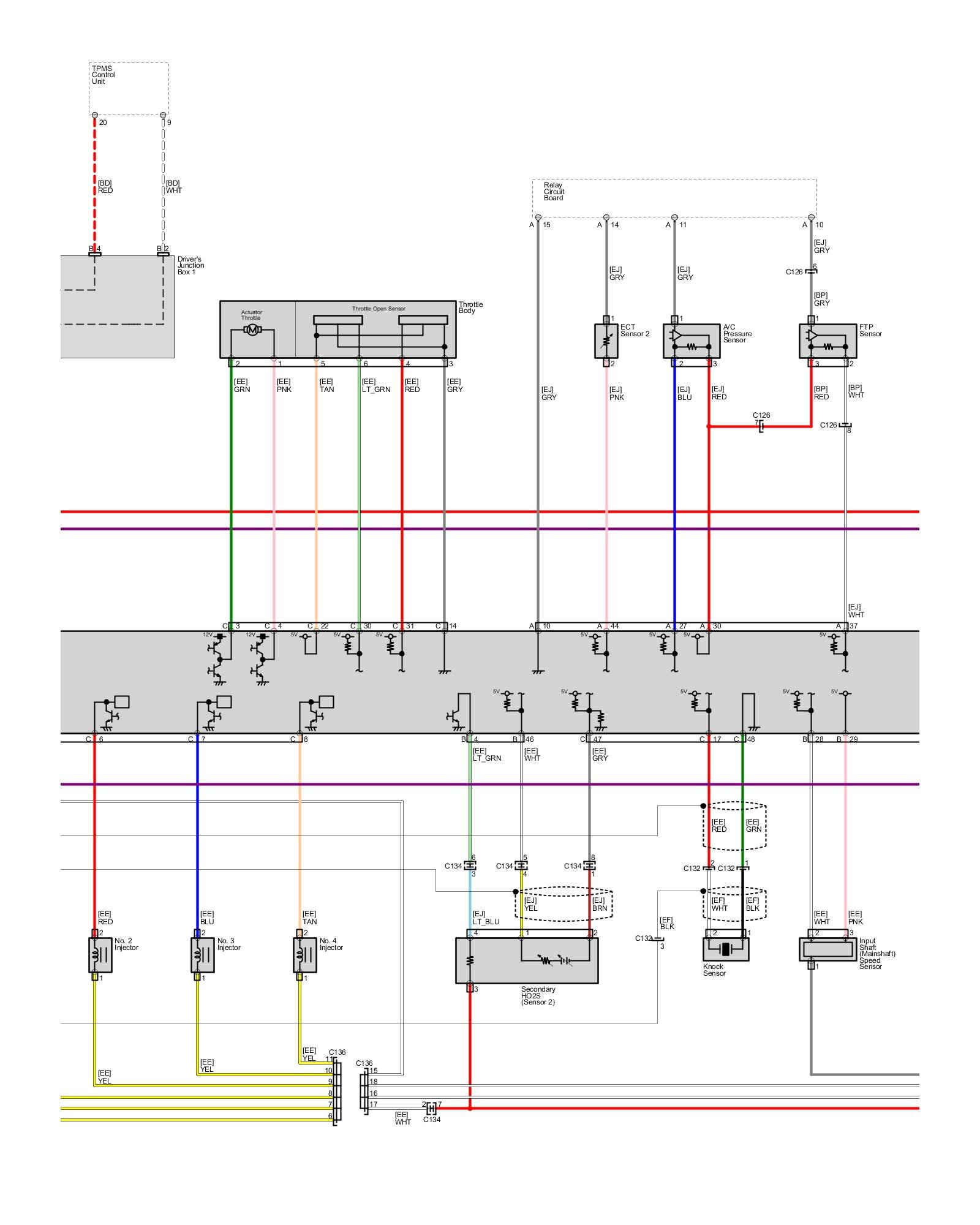

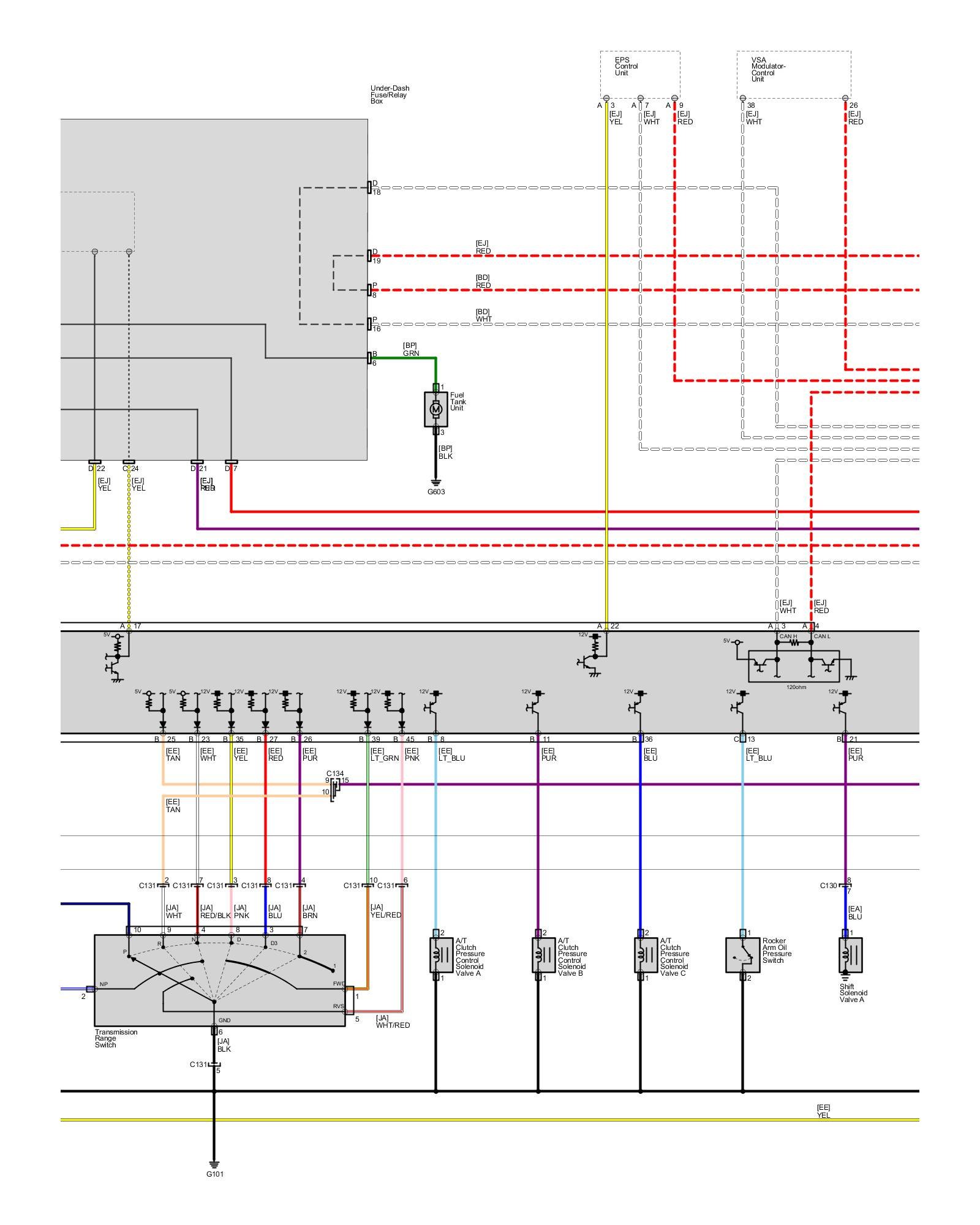

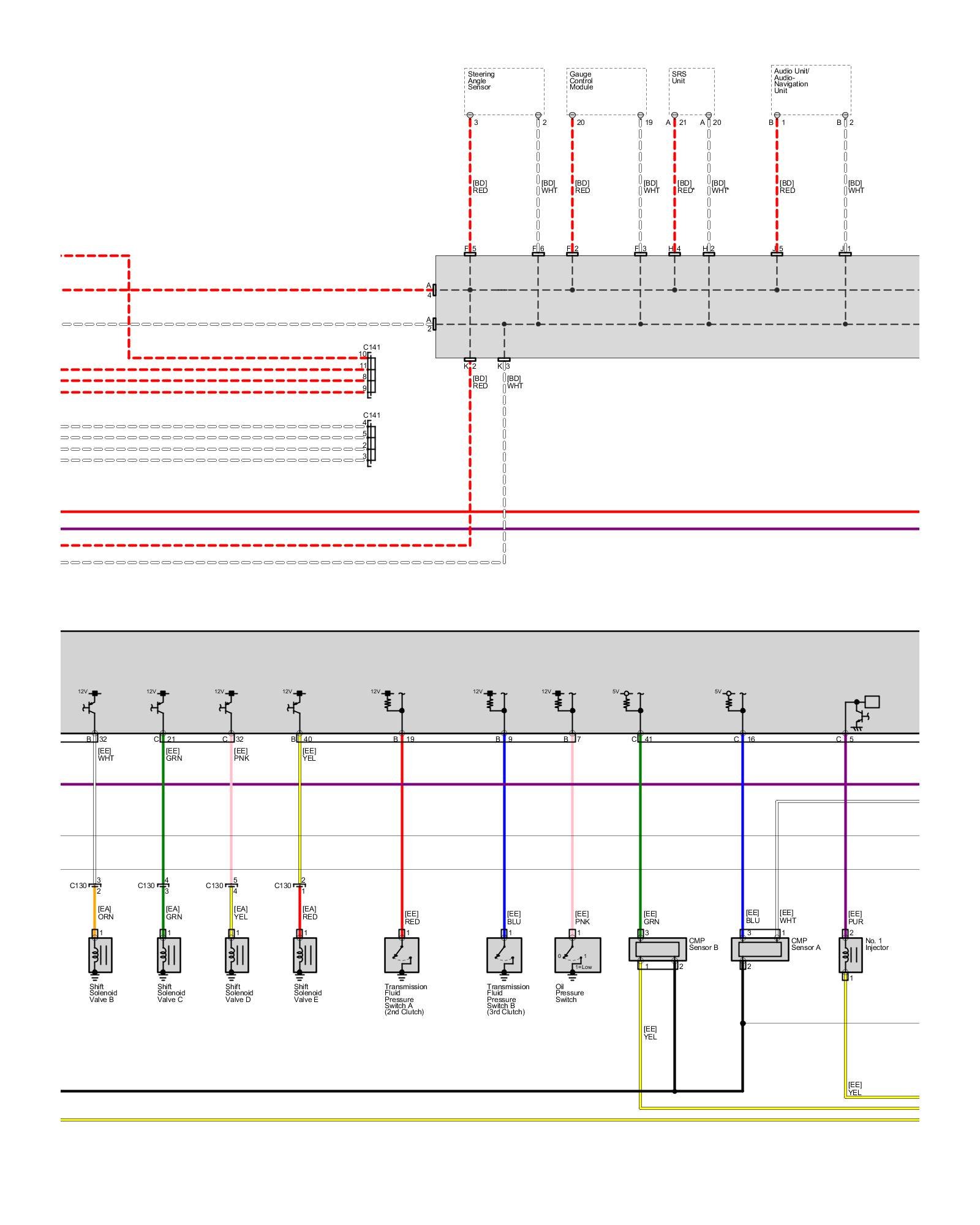

Fuel and Emissions - PCM (All)

KA USA Emissions, 5-door LX, RM3(2WD), AT Transmission



























KA USA Emissions, 5-door LX, RM4(4WD), AT Transmission



























KA USA Emissions, 5-door EX, RM3(2WD), AT Transmission
KA USA Emissions, 5-door EXL, RM3(2WD), AT Transmission

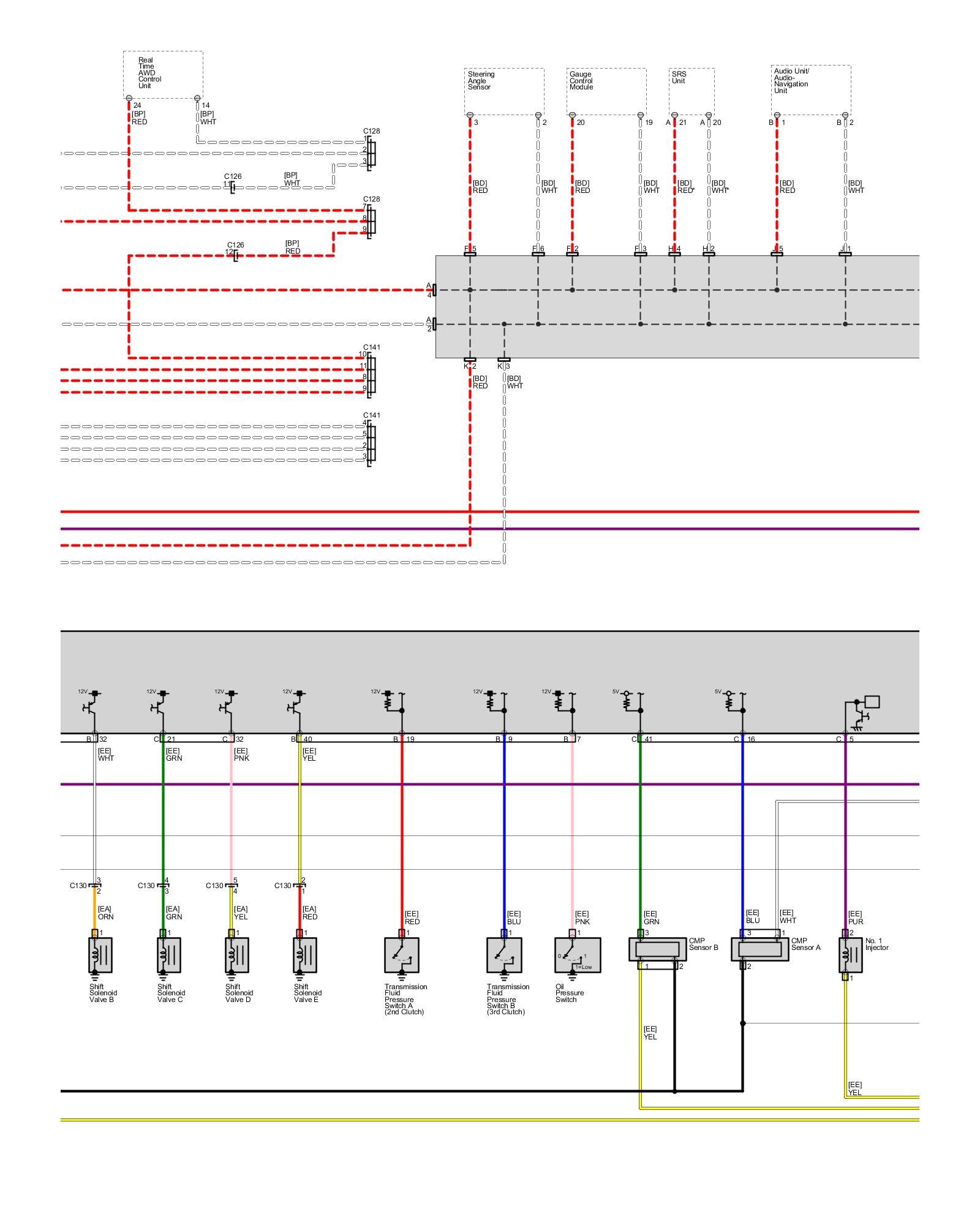

KA USA Emissions, 5-door EXL, RM3(2WD), AT Transmission with these options (Rear Entertainment System)



























KA USA Emissions, 5-door EX, RM4(4WD), AT Transmission
KA USA Emissions, 5-door EXL, RM4(4WD), AT Transmission
KA USA Emissions, 5-door EXL, RM4(4WD), AT Transmission with these options (Rear Entertainment System)



























KA USA Emissions, 5-door EXL, RM3(2WD), AT Transmission with these options (Navigation)



























KA USA Emissions, 5-door EXL, RM4(4WD), AT Transmission with these options (Navigation)
