Engine Oil Gallery Cap Removal And Installation

Engine Oil Gallery Cap Removal and Installation

Removal

1. Oil Gallery Cap

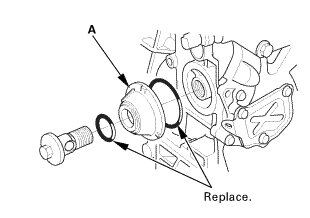

1. Remove the engine oil gallery cap (A).

Installation

1. Oil Gallery Cap





1. Clean the O-ring groove and mating surface with the engine oil gallery cap (A).

2. Apply new engine oil to new O-rings (B), then install the engine oil gallery cap with new O-rings.
