Variable Valve Timing Pressure Switch: Service and Repair

Rocker Arm Oil Pressure Switch Removal and Installation

Removal

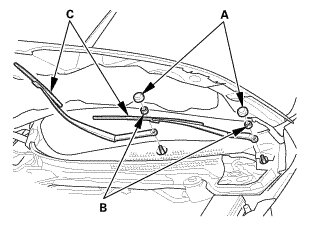

1. Both Windshield Wiper Arm Assemblies





NOTE: Set the wiper arms to the auto-stop position before removal.

1. Remove the caps (A) and nuts (B).

2. Remove the wiper arms (C).

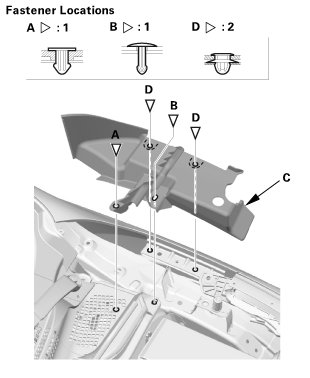

2. Front Fender Trim - Both Sides





NOTE: Repeat on the opposite side.

1. Remove the clips (A, B).

2. Pull up the front fender trim (C) by hand to detach the clips (D), then remove the trim.

3. Cowl Top Cover - Both Sides





NOTE: Repeat this procedure on the opposite side.

1. Remove the clip (A).

2. Pull out the hood rear seal (B).

3. Detach the hooks, and remove the cowl top cover (C).

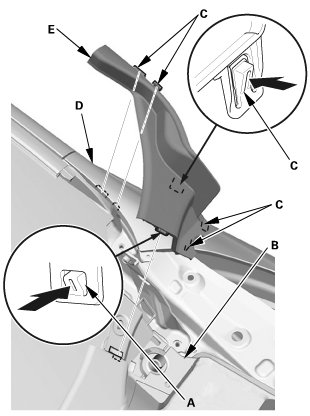

4. Side Cowl Cover - Both Sides





NOTE: Repeat on the opposite side.

1. Detach the hook (A) at the inside of the cowl cover (B).

2. Release the hooks (C) from the cowl cover and the front fender (D), then remove the side cowl cover (E).

3. Right side; Detach the windshield washer tube.

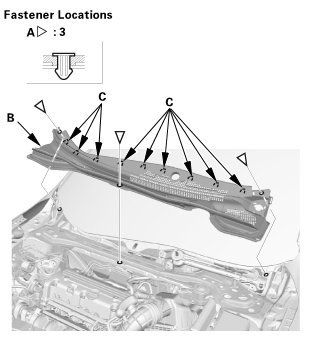

5. Center Cowl Cover





1. Remove the clips (A).

2. Carefully pull the center cowl cover (B) forward to release the hooks (C) from the windshield and the body.

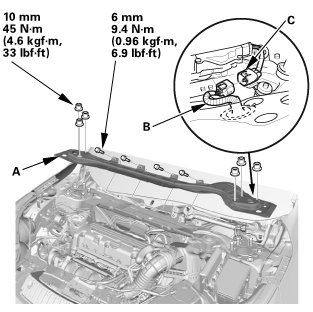

6. Under-Cowl Panel





1. Disconnect the connector (A).

2. Remove the bolts and the nuts, then remove the under-cowl panel (B).

3. Remove the wire harness (C) from the under-cowl panel.

7. Rocker Arm Oil Control Valve





1. Remove the rocker arm oil control valve assembly (A) and the rocker arm oil control valve filter (B).

2. Remove the engine wire harness bracket (C).

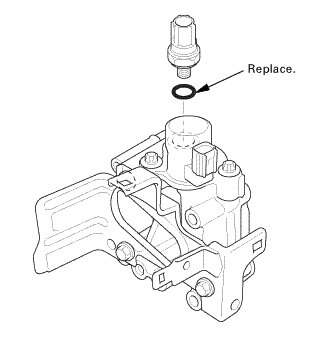

8. Rocker Arm Oil Pressure Switch





1. Remove the rocker arm oil pressure switch.

Installation

1. Rocker Arm Oil Pressure Switch

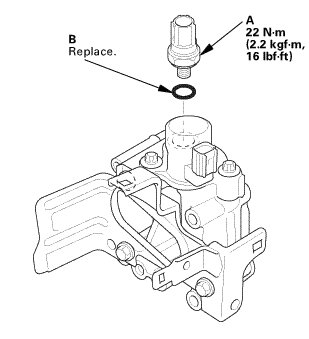

1. Install the rocker arm oil pressure switch (A) with new O-ring (B).

2. Rocker Arm Oil Control Valve

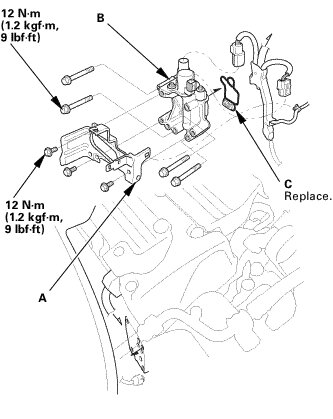

1. Install the engine wire harness bracket (A).

2. Install the rocker arm oil control valve assembly (B) and the rocker arm oil control valve filter (C).

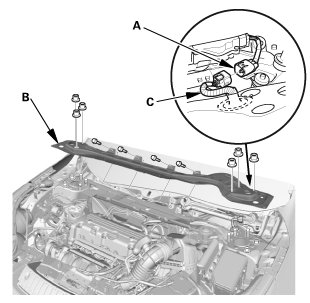

3. Under-Cowl Panel





1. Install the under-cowl panel (A), then install the bolts and the nuts.

2. Install the wire harness (B) to the under-cowl panel.

3. Connect the connector (C).

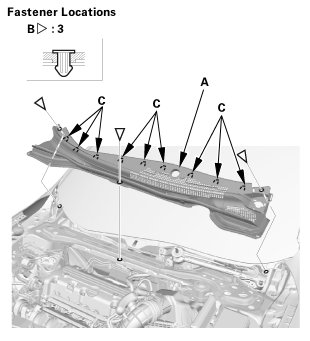

4. Center Cowl Cover





1. Install the center cowl cover (A). Make sure the clips (B) and the hooks (C) snap into place securely.

5. Side Cowl Cover - Both Sides





NOTE: Repeat on the opposite side.

1. Install the side cowl cover (A). Make sure the hooks (B) snap into place securely.

2. Right side; Install the windshield washer tube.

6. Cowl Top Cover - Both Sides





NOTE: Repeat this procedure on the opposite side.

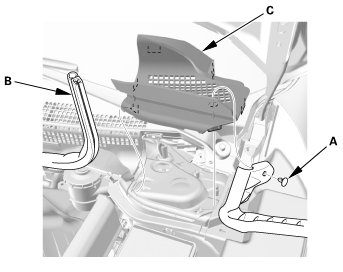

1. Install the cowl top cover (A).

2. Install the hood rear seal (B).

3. Install the clip (C).

7. Front Fender Trim - Both Sides




NOTE: Repeat on the opposite side.

1. Install the front fender trim (A), then install the clips (B, C). Make sure the clips (D) snap into place securely.

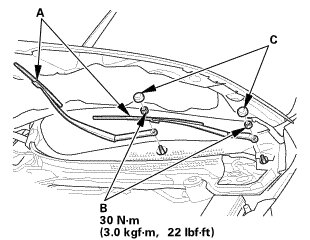

8. Both Windshield Wiper Arm Assemblies




NOTE: Set the wiper arms to the auto-stop position before installation.

1. Install the wiper arms (A), the nut (B), and the caps (C).

9. Windshield Wiper Arm - Adjustment

1. Adjust the windshield wiper arms. Adjustments
