Blower Unit Removal and Installation

Blower Unit Removal and Installation

Removal

1. Passenger's Dashboard Undercover

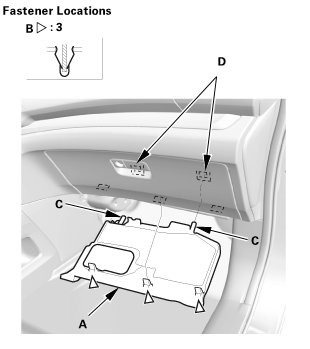

1. Gently pull down the passenger's dashboard undercover (A) to detach the clips (B), then pull away the undercover to release the pins (C) from the holder (D).

2. Glove Box





1. Remove the bolts (A).

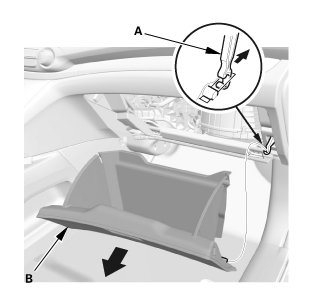

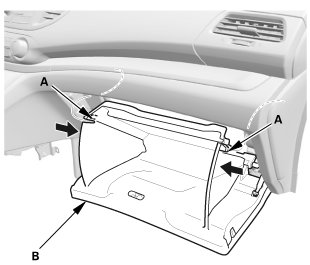

2. Release both glove box stops (A) by pushing them in, then let the glove box (B) hang down.





3. Detach the glove box damper hook (A), then remove the glove box (B).

3. Glove Box Frame

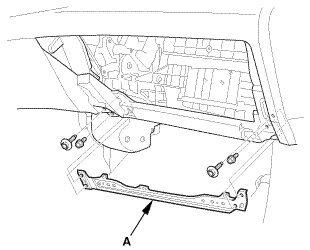

1. Remove the glove box frame (A).

4. Passenger's Heater Duct

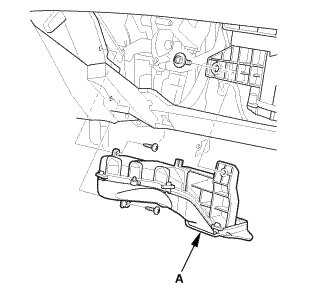

1. Remove the passenger's heater duct (A).

5. Cross Brace

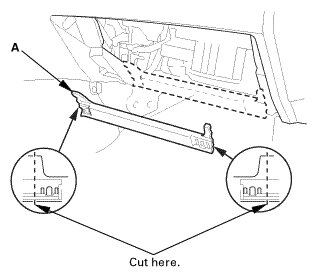

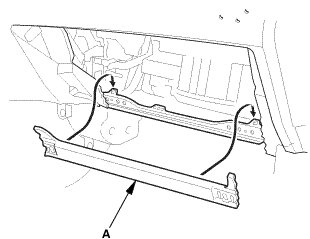

1. Cut the cross brace (A) in the glove box opening with diagonal cutters in the area shown, and remove it.

NOTE: Retain the cross brace to be reinstalled later.

6. Blower Unit

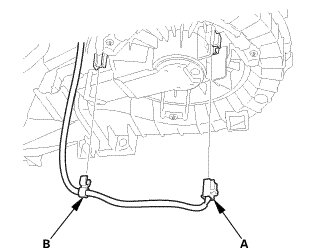

1. Disconnect the blower motor connector (A).

2. Detach the harness clip (B).

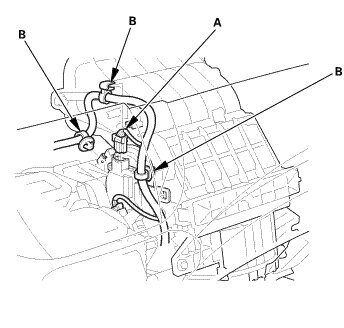

3. Disconnect the recirculation control motor connector (A).

4. Detach the harness clips (B).

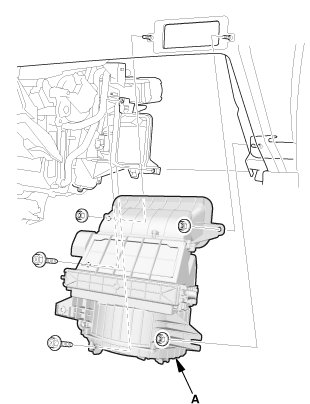

5. Remove the blower unit (A).

Installation

1. Blower Unit





1. Install the blower unit (A).





2. Connect the recirculation control motor connector (A).

3. Install the harness clips (B).





4. Connect the blower motor connector (A).

5. Install the harness clip (B).

2. Passenger's Heater Duct





1. Install the passenger's heater duct (A).

3. Glove Box Frame





1. Install the glove box frame (A).

4. Cross Brace





1. Install the cross brace (A).

5. Glove Box

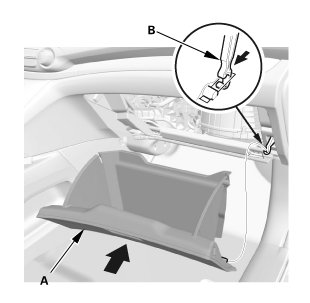

1. Install the glove box (A), then install the glove box damper hook (B).





2. Install the bolts (A).

6. Passenger's Dashboard Undercover





1. Install the passenger's dashboard undercover (A). Make sure the clips (B) snap into place securely, and the pins (C) into the holder (D) securely.
