Dashboard Drivers Panel Removal And Installation

Dashboard Driver's Panel Removal and Installation

Removal

1. Driver's Dashboard Panel Assembly





1. Carefully pry out the driver's dashboard panel assembly (A) with the appropriate trim tool to detach the clips (B).

2. Disconnect the connector (C), then remove the driver's dashboard panel assembly.

2. Driver's Dashboard Panel Trim





1. Detach the clips (A), then remove the driver's dashboard panel trim (B).

Installation

1. Driver's Dashboard Panel Trim

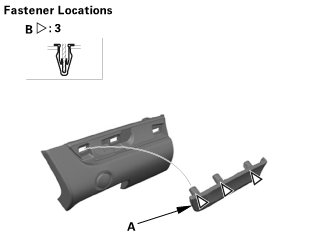

1. Install the driver's dashboard panel trim (A). Make sure the clips (B) snap into place securely.

2. Driver's Dashboard Panel Assembly

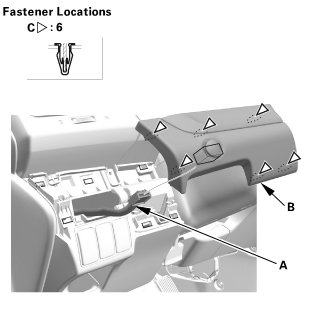

1. Connect the connector (A), then install the driver's dashboard panel assembly (B). Make sure the clips (C) snap into place securely.
