Dashboard Side Cover Removal And Installation

Dashboard Side Cover Removal and Installation

Removal

1. Front Door Opening Seal As Needed





1. Pull out the front door opening seal (A) from the trim hooks (B) around the front door opening flange as needed.

2. Dashboard Side Cover

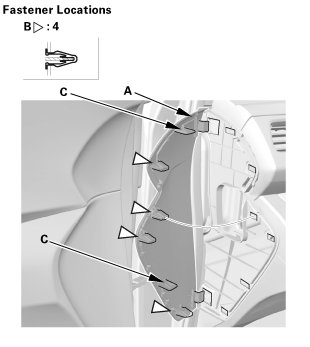

1. Gently pry out the dashboard side cover (A) with the appropriate trim tool to detach the clips (B) and the hooks (C), then remove the dashboard side cover.

Installation

1. Dashboard Side Cover





1. Install the dashboard side cover (A). Make sure the clips (B) and the hooks (C) snap into place securely.

2. Front Door Opening Seal As Needed





1. Install the front door opening seal (A). Make sure the seal is installed securely into the hooks (B).
