Driver's Dashboard Undercover Removal and Installation

Removal

1. Driver's Dashboard Undercover





1. Turn the lock knob (A) 90 °, then gently pull down the front edge of the driver's dashboard undercover (B) to detach the clip (C).

2. Pull away the undercover to release the pin (D) from the holder (E), then remove the driver's dashboard undercover.

Installation

1. Driver's Dashboard Undercover

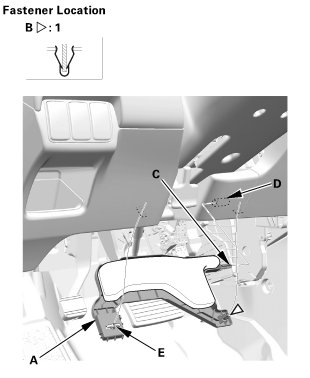

1. Install the driver's dashboard undercover (A). Make sure the clip (B) snap into place securely, and the pin (C) into the holder (D) securely.

2. Turn the lock knob (E) 90 °.
