Operation CHARM
: Car repair manuals for everyone.
Home
>>
Honda
>>
2012
>>
CR-V 2WD L4-2.4L
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Relays and Modules - Powertrain Management
>>
Relays and Modules - Computers and Control Systems
>>
Engine Control Module
>>
Testing and Inspection
>>

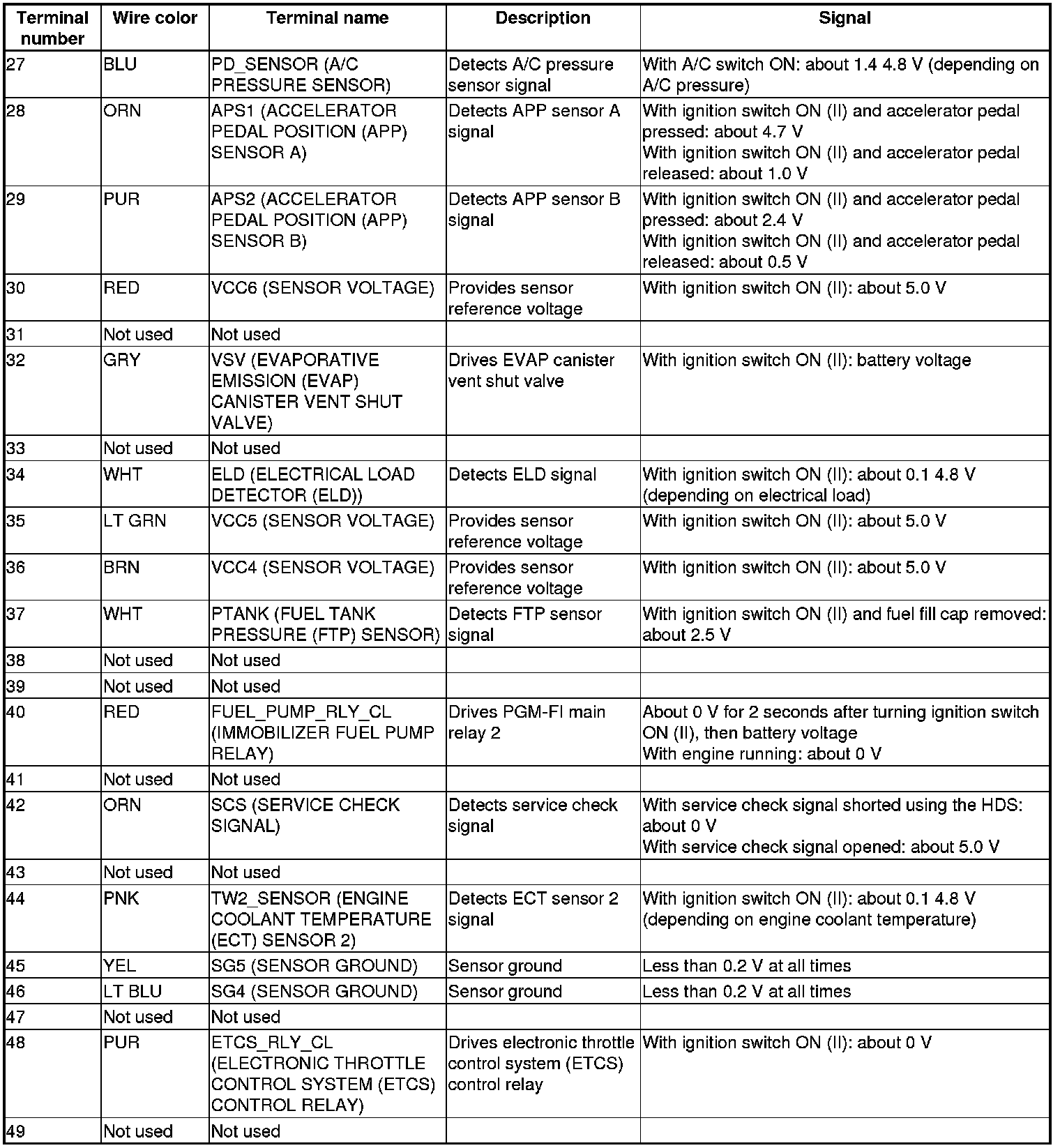

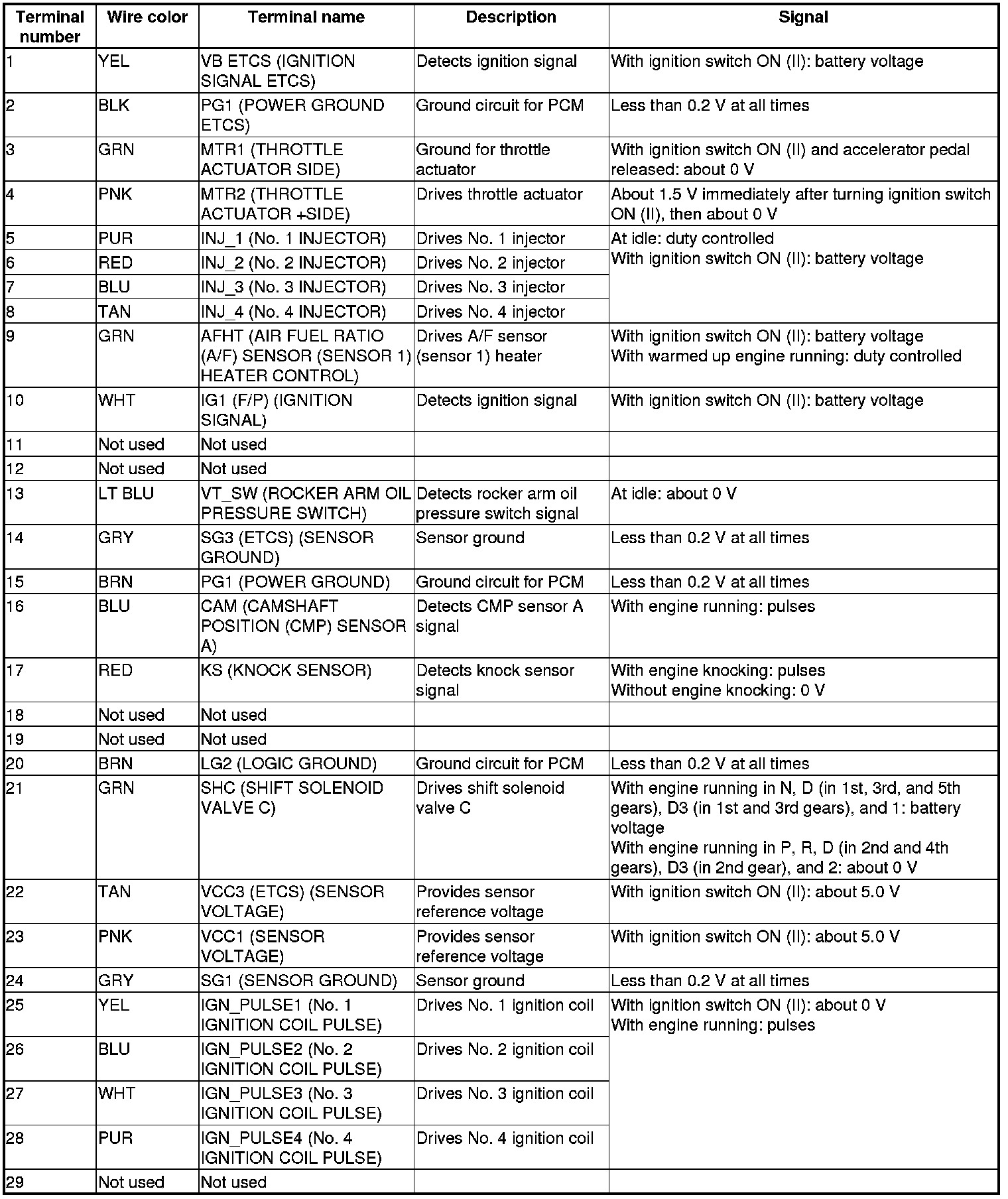

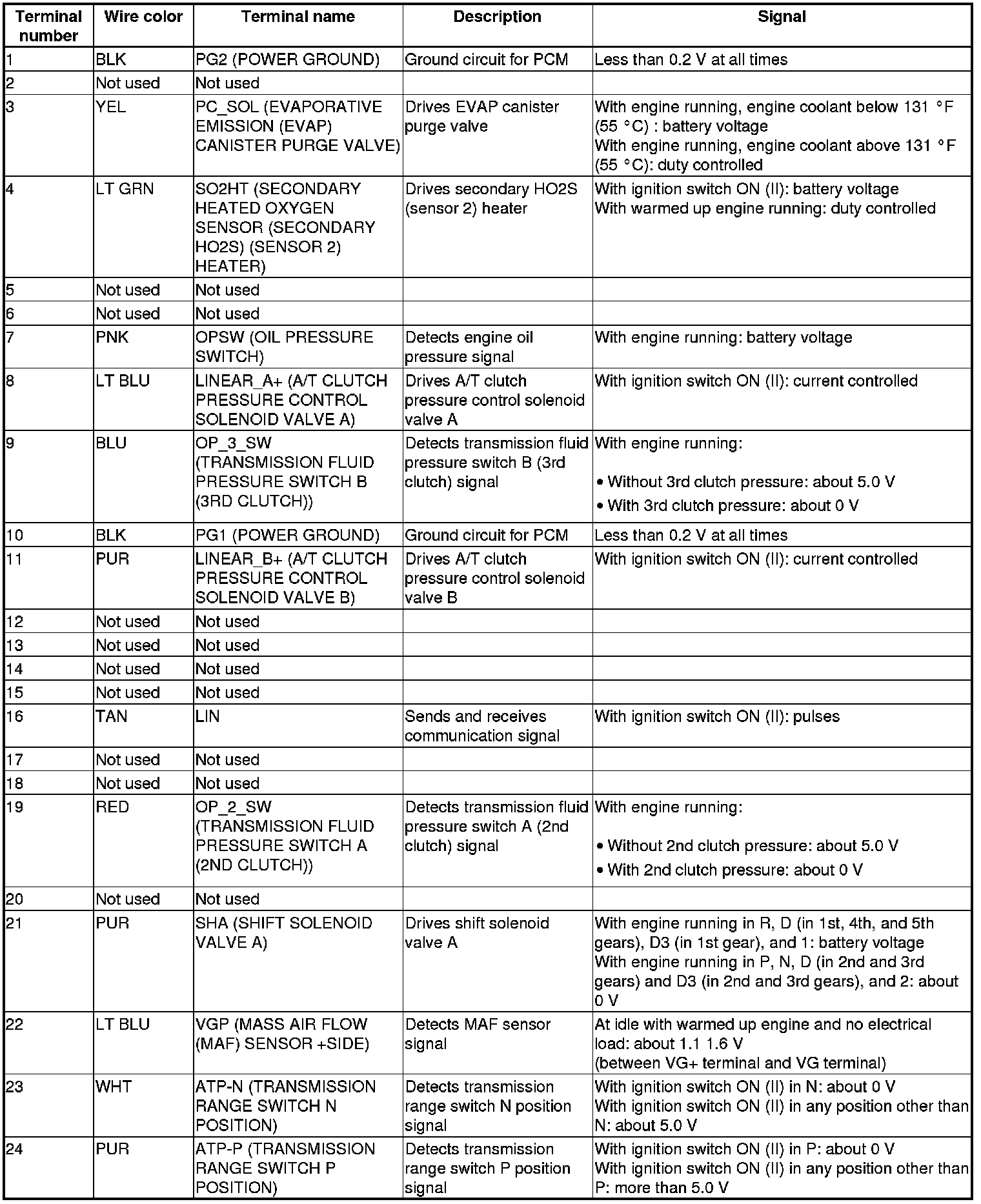

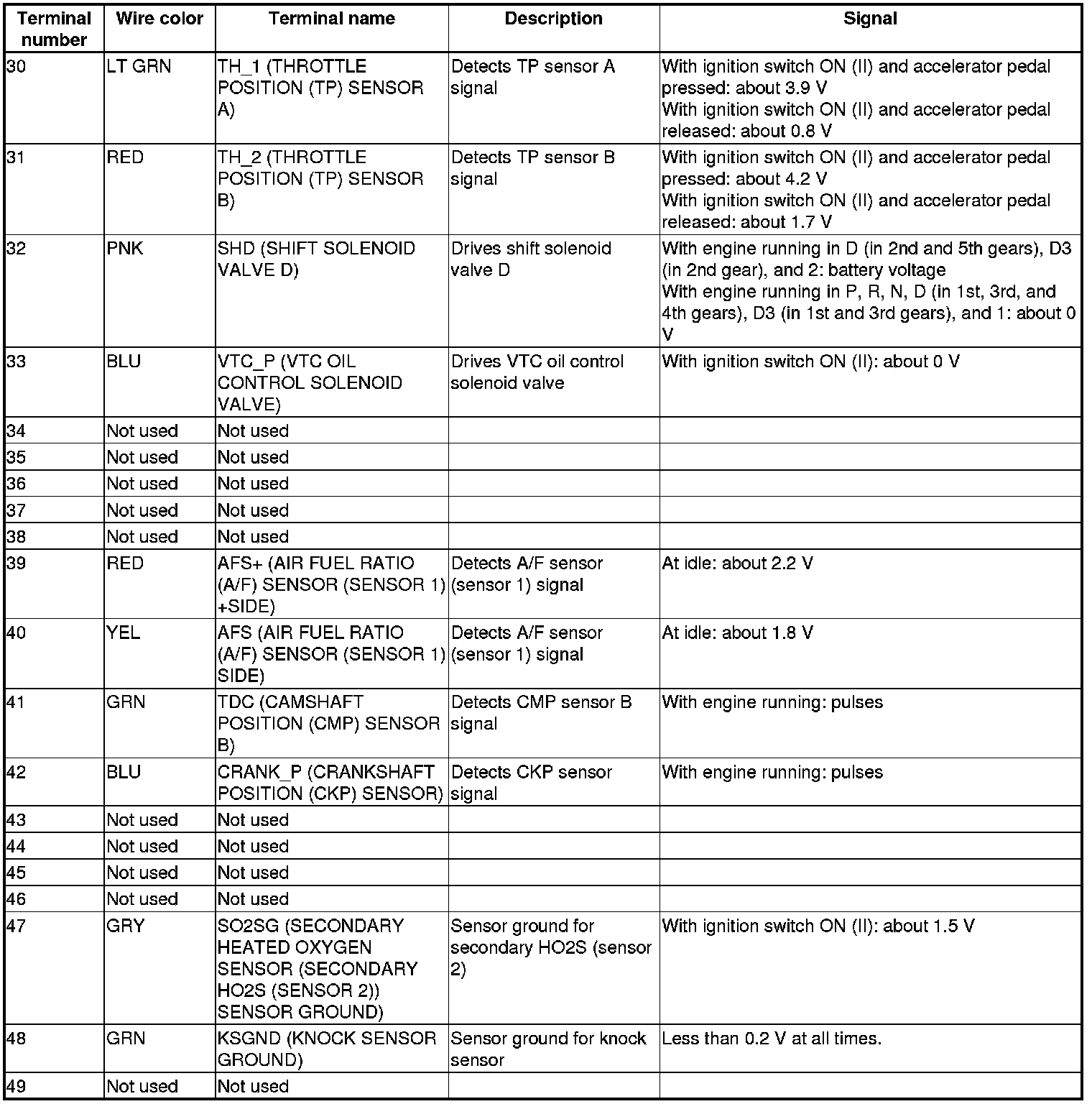

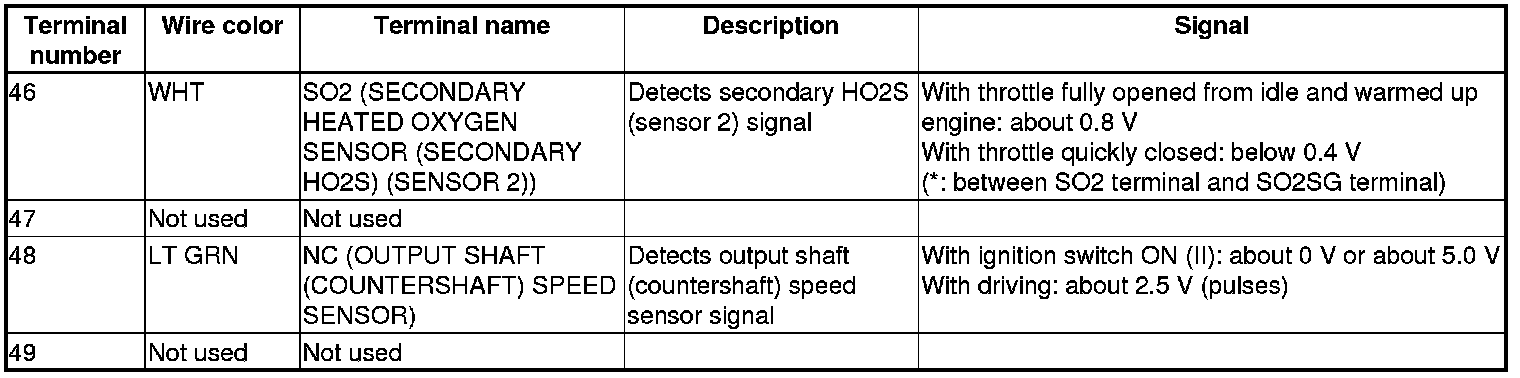

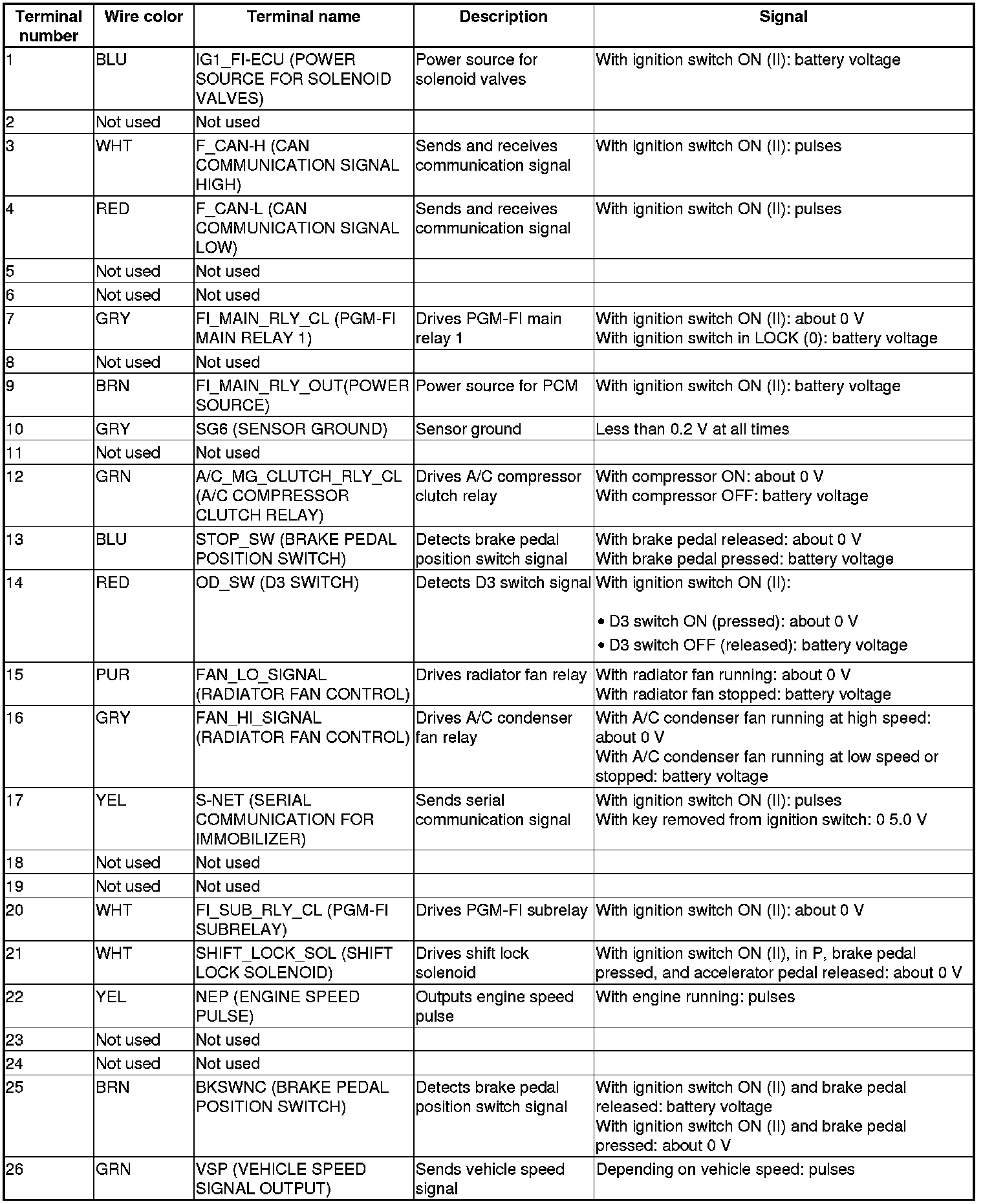

Pinout Values and Diagnostic Parameters
>>

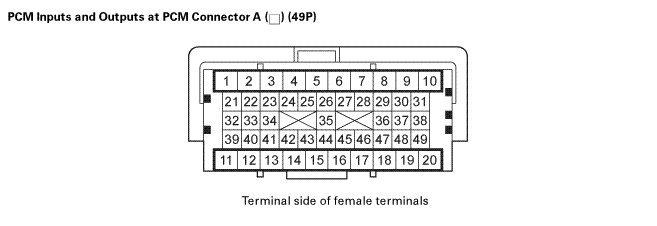

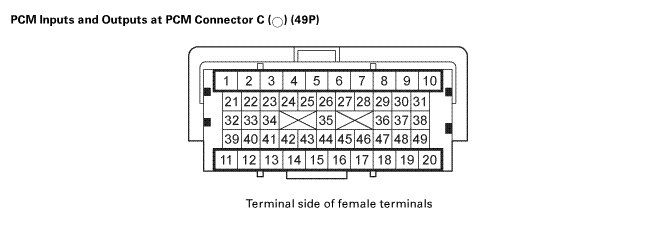

ECM/PCM Connector for Inputs and Outputs
ECM/PCM Connector for Inputs and Outputs
Engine
ECM/PCM Connector for Inputs and Outputs
