A/T Pressure Test

A/T Pressure Test









Removal

1. Vehicle Lift

1. Raise the vehicle on a lift, and make sure it is securely supported.

2. Warm Up The Engine

1. Start the engine. Hold the engine speed at 3,000 rpm without load in P or N until the radiator fan comes on.

2. Park the vehicle on level ground.

3. Turn the ignition switch to LOCK (0).

3. ATF Level Check





NOTE:
* Keep all foreign particles out of the transmission.
* Check the fluid level within 60-90 seconds after turning the engine off.
* Higher fluid level may be indicated if the radiator fan comes on twice or more.

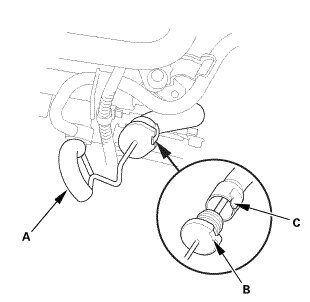

1. Remove the ATF dipstick (yellow loop) (A), and wipe it with a clean cloth.

2. Insert the dipstick into the guide tube aligning the notch (B) with the guide tab (C).





3. Remove the dipstick, and check the ATF level. It should be between the upper mark (A) and the lower mark (B).

4. If the ATF level is below the lower mark, check for fluid leaks at the transmission, the hoses, and the line joints. If a problem is found, fix it before filling the transmission with ATF.

NOTE: If the vehicle is driven when the ATF level is below the lower mark, one or more of these symptoms may occur:
* Transmission damage.
* Vehicle does not move in any gear.
* Vehicle accelerates poorly, and engine rpm abnormally rises when starting off in forward and reverse positions.
* Engine vibrates at idle.

5. If the ATF level is above the upper mark, drain the ATF to proper level.

NOTE: If the vehicle is driven when the ATF level is above the upper mark, the vehicle may creep forward while in N, or have shifting problems.





6. If necessary, fill the transmission with ATF through the dipstick guide tube opening (A) to bring the fluid level between the upper mark and the lower mark of the dipstick. Do not fill the fluid above the upper mark. Always use ATF DW-1 (genuine Honda automatic transmission fluid). Using a non-Honda ATF can affect shift quality.

7. Insert the dipstick into the guide tube aligning the notch with the guide tab.

4. Front Splash Shield





1. Remove the bolts (A), then remove the clips (B) that secure the front inner fender and the front splash shield (C) to the body.

2. From under the front bumper (D), remove the clips (E).

3. From under the body, remove the clips (F), then pull out the front splash shield.

5. HDS DLC - Connection





1. Connect the HDS to the data link connector (DLC) (A) located under the driver's side of the dashboard.

2. Turn the ignition switch to ON (II).

3. Make sure the HDS communicates with the vehicle. If it does not communicate, go to the DLC circuit troubleshooting.

Test

NOTE:
* Check for DTCs. If any DTCs are stored, troubleshoot and clear them first.
* Do not allow dust or other foreign particles to enter the port while installing the A/T oil pressure gauge.
* Be sure to check the ATF level after each pressure port test. When installing or removing the A/T oil pressure gauge, ATF may run out of the pressure inspection ports.
* Disable the VSA by pressing the VSA OFF button.
* VSA DTC(s) may appear when running the wheels off the ground. If the VSA DTC(s) appears, clear the DTC (s) with the HDS after pressure testing.

1. A/T Line Pressure - Test

Line Pressure Test

1. Connect the A/T oil pressure gauge to the line pressure inspection port (A).






2. Start the engine, and warm it up to normal operating temperature (the radiator fan comes on).

3. Measure the line pressure from the A/T oil pressure gauge while holding the engine speed at 2,000 rpm with the shift lever in P or N.

NOTE: Do not measure the line pressure with the shift lever in other than P or N.







4. If the line pressure is out of the service limit, refer to the problem and probable causes listed in the table.







5. Turn the engine off, then disconnect the A/T oil pressure gauge from the line pressure inspection port.

6. Install the sealing bolt to the line pressure inspection port using a new sealing washer, and tighten the bolt to 18 Nm (1.8 kgm, 13 lbft).

NOTE: Do not reuse the old sealing washer.

2. A/T 1st Clutch Pressure - Test

1st Clutch Pressure Test

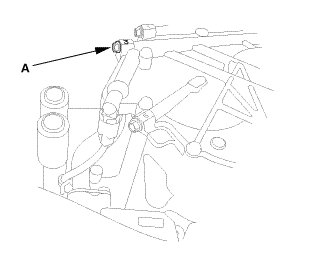

1. Connect the A/T oil pressure gauge to the 1st clutch pressure inspection port (A).






2. Start the engine, and run the vehicle in 1st gear.

3. Measure the 1st clutch pressure from the A/T oil pressure gauge while holding the engine speed at 2,000 rpm.

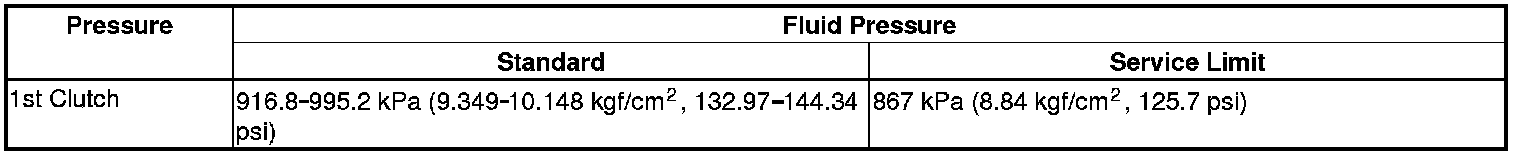

4. If the 1st clutch pressure is out of the service limit, refer to the problem and probable cause listed in the table.







5. Turn the engine off, then disconnect the A/T oil pressure gauge from the 1st clutch pressure inspection port.

6. Install the sealing bolt to the 1st clutch pressure inspection port using a new sealing washer, and tighten the bolt to 18 Nm (1.8 kgm, 13 lbft).

NOTE: Do not reuse the old sealing washer.

3. A/T 3rd Clutch Pressure - Test

3rd Clutch Pressure Test

1. Connect the A/T oil pressure gauge to the 3rd clutch pressure inspection port (A).






2. Start the engine, and run the vehicle in 3rd gear.

3. Measure the 3rd clutch pressure from the A/T oil pressure gauge while holding the engine speed at 2,000 rpm.







4. If the 3rd clutch pressure is out of the service limit, refer to the problem and probable cause listed in the table.







5. Turn the engine off, then disconnect the A/T oil pressure gauge from the 3rd clutch pressure inspection port.

6. Install the sealing bolt to the 3rd clutch pressure inspection port using a new sealing washer, and tighten the bolt to 18 Nm (1.8 kgm, 13 lbft).

NOTE: Do not reuse the old sealing washer.

4. A/T 4th Clutch Pressure - Test

4th Clutch Pressure Test - Engaging 4th Gear

1. Connect the A/T oil pressure gauge to the 4th clutch pressure inspection port (A).






2. Start the engine, and run the vehicle in 4th gear.

3. Measure the 4th clutch pressure from the A/T oil pressure gauge while holding the engine speed at 2,000 rpm.







4. If the 4th clutch pressure is out of the service limit, refer to the problem and probable cause listed in the table.







5. Bring the engine back to an idle, then apply the brake to stop the wheels from rotating.

4th Clutch Pressure Test - Engaging Reverse Gear

6. Shift to R, then release the brake pedal.

7. Measure the 4th clutch pressure from the A/T oil pressure gauge while holding the engine speed at 2,000 rpm.







8. If the 4th clutch pressure is out of the service limit, refer to the problem and probable causes listed in the table.







9. Turn the engine off, then disconnect the A/T oil pressure gauge from the 4th clutch pressure inspection port.

10. Install the sealing bolt to the 4th clutch pressure inspection port using a new sealing washer, and tighten the bolt to 18 Nm (1.8 kgm, 13 lbft).

NOTE: Do not reuse the old sealing washer.

5. A/T 5th Clutch Pressure - Test

5th Clutch Pressure Test

1. Connect the A/T oil pressure gauge to the 5th clutch pressure inspection port (A).






2. Start the engine, and run the vehicle in 5th gear.

3. Measure the 5th clutch pressure from the A/T oil pressure gauge while holding the engine speed at 2,000 rpm.







4. If the 5th clutch pressure is out of the service limit, refer to the problem and probable cause listed in the table.







5. Turn the engine off, then disconnect the A/T oil pressure gauge from the 5th clutch pressure inspection port.

6. Install the sealing bolt to the 5th clutch pressure inspection port using a new sealing washer, and tighten the bolt to 18 Nm (1.8 kgm, 13 lbft).

NOTE: Do not reuse the old sealing washer.

Removal

1. Air Cleaner Assembly





1. Disconnect the MAF sensor/IAT sensor connector (A).

2. Remove the harness clamp (B).

3. Disconnect the intake air duct (C) and the intake air pipe (D).

4. Remove the air cleaner (E).

2. Intake Air Duct





1. Remove the intake air duct.

Test

NOTE:
* Check for DTCs. If any DTCs are stored, troubleshoot and clear them first.
* Do not allow dust or other foreign particles to enter the port while installing the A/T oil pressure gauge.
* Be sure to check the ATF level after each pressure port test. When installing or removing the A/T oil pressure gauge, ATF may run out of the pressure inspection ports.
* Disable the VSA by pressing the VSA OFF button.
* VSA DTC(s) may appear when running the wheels off the ground. If the VSA DTC(s) appears, clear the DTC (s) with the HDS after pressure testing.

1. A/T 2nd Clutch Pressure - Test

2nd Clutch Pressure Test

1. Connect the A/T oil pressure gauge to the 2nd clutch pressure inspection port (A).






2. Temporarily install the intake air duct and the air cleaner assembly, and reconnect the MAF sensor/IAT sensor connector.

3. Start the engine, and run the vehicle in 2nd gear.

4. Measure the 2nd clutch pressure from the A/T oil pressure gauge while holding the engine speed at 2,000 rpm.







5. If the 2nd clutch pressure is out of the service limit, refer to the problem and probable cause listed in the table.







6. Turn the engine off, remove the air cleaner assembly and the intake air duct.

7. Disconnect the A/T oil pressure gauge from the 2nd clutch pressure inspection port.

8. Install the sealing bolt to the 2nd clutch pressure inspection port using a new sealing washer, and tighten the bolt to 18 Nm (1.8 kgm, 13 lbft).

NOTE: Do not reuse the old sealing washer.

Installation

1. Intake Air Duct





1. Install the intake air duct.

2. Air Cleaner Assembly





1. Install the air cleaner (A).

2. Connect the intake air pipe (B) and the intake air duct (C).

3. Install the harness clamp (D).

4. Connect the MAF sensor/IAT sensor connector (E).

3. Front Splash Shield





1. Install the front splash shield (A), then install the bolts (B) and the clips (C, D). Make sure the clips snap into place securely.
