Braking Sensor/Switch: Service and Repair

Brake Pedal Position Switch Removal and Installation

Removal

1. Brake Pedal Position Switch





1. Disconnect the connector.

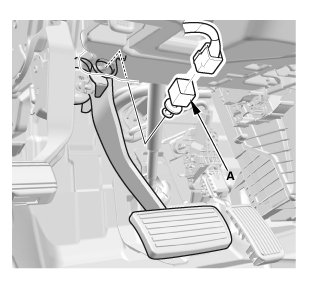

2. Turn the brake pedal position switch (A) 45 ° counterclockwise to remove it.

Installation

1. Brake Pedal Position Switch





1. Turn the brake pedal position switch (A) 45 ° clockwise to install it.

2. Connect the connector.

2. Brake Pedal Position Switch - Adjustment

1. Adjust the brake pedal position switch. Adjustments
