Braking Sensor/Switch: Testing and Inspection

Brake Pedal Position Switch Test

Test

1. Brake Pedal Position Switch - Test

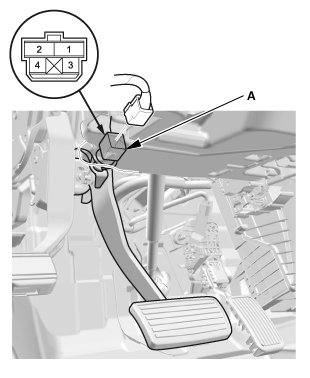

1. Disconnect the connector.

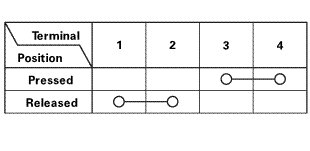

2. Check for continuity between the terminals in each switch position according to the table.

3. If the test results are not as specified, adjust the pedal position switch (A), then check. If the results are still not as specified, replace the pedal position switch.

4. Connect the connector.
