Ignition Switch Test

Ignition Switch Test

Removal

SRS components are located in this area. Review the SRS component locations Locations and the precautions and procedures Service and Repair before doing repairs or service.

1. Upper Column Cover

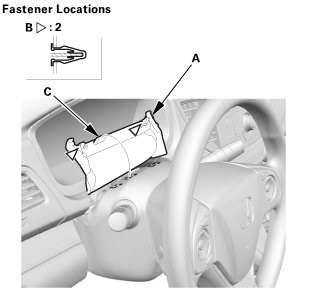

1. Carefully pry out the dashboard meter visor blind cover (A) with the appropriate trim tool to detach the clips (B) and the hook (C), then tuck up the dashboard meter visor blind cover.

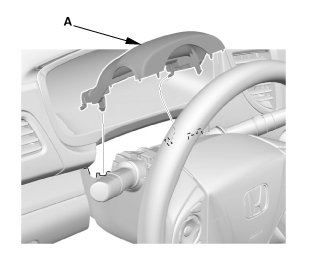

2. Remove the upper column cover (A).

2. Lower Column Cover

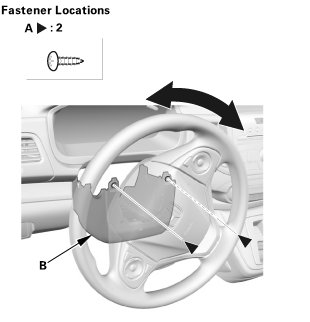

1. Turn the steering wheel to the left. Remove the screw (A) securing the lower column cover (B) from the front side.

2. Turn the steering wheel to the right. Remove the screw securing the lower column cover from the front side.





3. Remove the screw (A), then remove the lower column cover (B).

Test

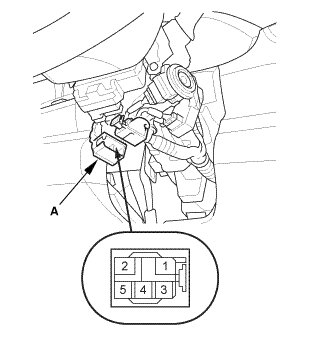

1. Ignition Switch - Test









1. Disconnect the connector.

2. Check for continuity between the terminals in each switch position according to the table.

3. If continuity is not as specified, replace the ignition switch (A).

4. Connect the connector.

Installation

SRS components are located in this area. Review the SRS component locations Locations and the precautions and procedures Service and Repair before doing repairs or service.

1. Lower Column Cover





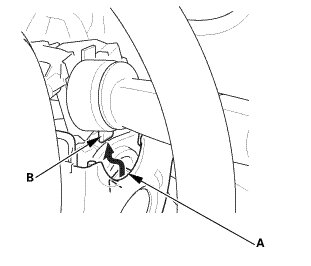

1. Push in on the lower column cover just above ignition switch opening (A) to engage the column cover with the locking tab (B).

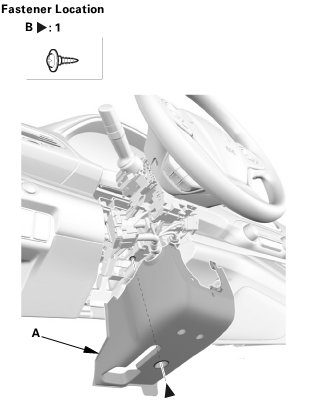

2. Install the lower column cover (A), then install the screw (B).





3. Turn the steering wheel to the left. Install the screw (A) securing the lower column cover (B) from the front side.

4. Turn the steering wheel to the right. Install the screw securing the lower column cover from the front side.

2. Upper Column Cover





1. Install the upper column cover (A).





2. Install the dashboard meter visor blind cover (A). Make sure the clips (B) and the hook (C) snap into place securely
