Shift Indicator - A/T: Service and Repair

A/T Gear Position Indicator Panel Light Removal and Installation

Removal

1. Shift Lever Panel (AT)

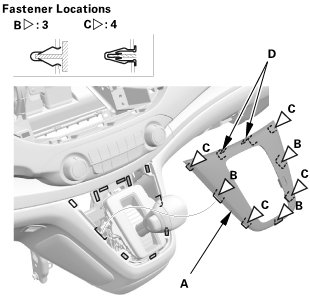

1. Carefully pry out the shift lever panel (A) with the appropriate trim tool to detach the clips (B, C) and the hooks (D), then remove the shift lever panel.

2. A/T Gear Position Indicator Panel Light

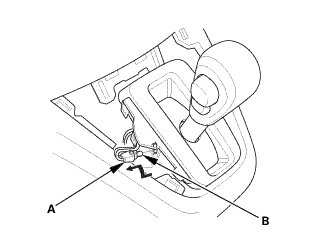

1. Remove the A/T gear position indicator panel light socket (A).

2. Remove the A/T gear position indicator panel light bulb (B).

Installation

1. A/T Gear Position Indicator Panel Light

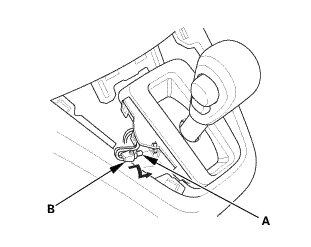

1. Install the A/T gear position indicator panel light bulb (A).

2. Install the A/T gear position indicator panel light socket (B).

2. Shift Lever Panel (AT)





1. Install the shift lever panel (A). Make sure the clips (B, C) and the hooks (D) snap into place securely.
